The voltage related control mode Q(U) controls the reactive power output as a function of the
voltage.
There are four coordinate points that can be configured. The coordinate points are the voltage as
a percentage of Un and the reactive power as a percentage of Pn.
Procedure:
Step 1：Tap “Reactive power settings” to enter to the next page.
Step 2：Ttap “Enable reactive power” to choose the reactive power control mode and tap the
left arrow to go back.
Step 3：Tap “Q(U) curve settings” to enter to the next page.
Step 4：Configure the parameters and tap “Save”.
8.5.6 Q(U) curve configuration

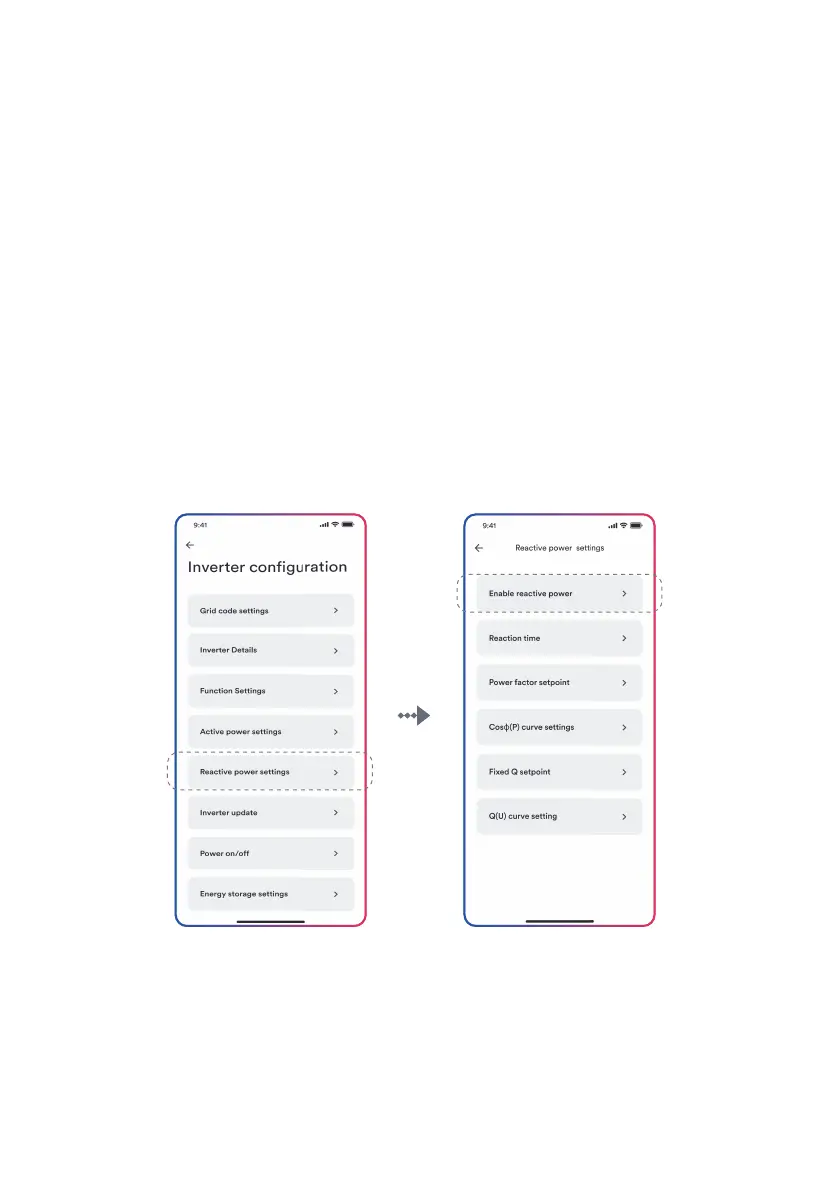

Step 1 Step 2
UM0035_ASW05-12kH-T2-T3_EN_V01_0523
