9.2 Dismantling the inverter
After disconnecting all electrical connections as described in Section 9.1, the inverter can be
removed as follows.
Step 1：Dismantle the inverter referring to “5.3 Mounting” in reverse steps.
Step 2：If necessary, remove the wall-mounting bracket from the wall.
Step 3：If the inverter will be reinstalled in the future, please refer to “3.2 Inverter Storage” for
a proper conservation.
Procedure:
1
2
Step 9：

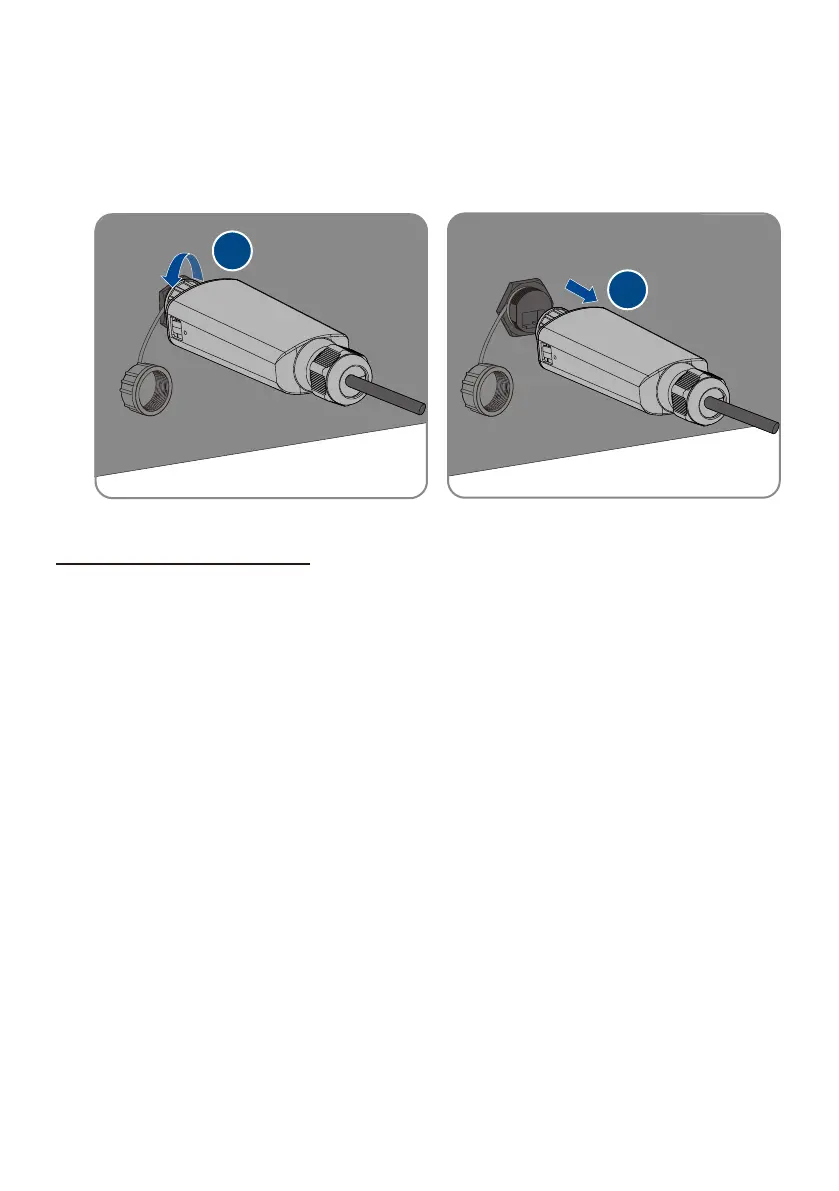

Remove the communication cover. Remove the communication cable in reverse order by
referring to 6.7 Communication equipment connection.
Step 10：
Hold down the buckle on the side of the Ai-Dongle and pull out the Ai-Dongle terminal.
