Solplanet ASW06kH-T2 - Backup Load Cable Connection; Requirements for the Backup Load Connection; Assembling the Backup Load Connectors

1
2
3

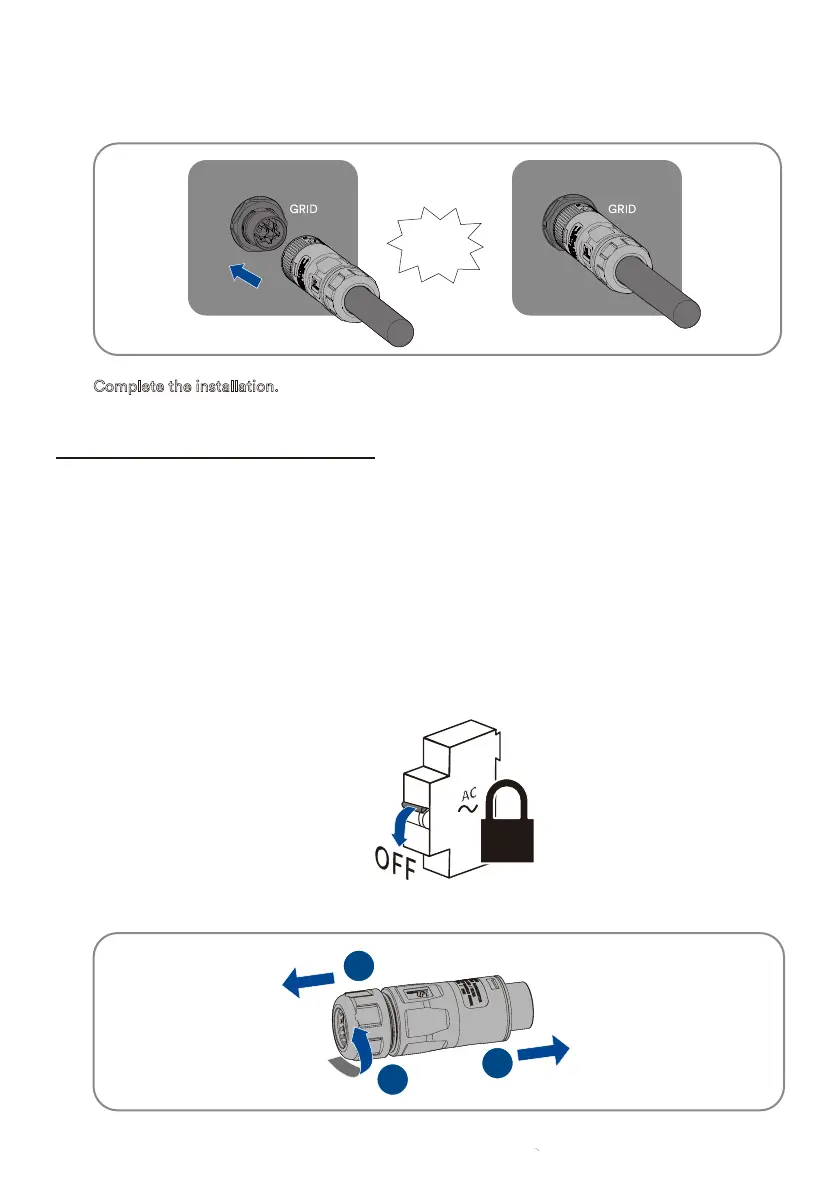

Step 1：
Switch off the miniature circuit-breaker or the switch of every energy sources and
secure it against being inadvertently switched back on.
Step 2：
Split Backup Load connector.
Complete the installation.
Step 2： The installation arrow indicates insertion the female connector, and hear the “click”
sound.
click
6.4 Backup Load cable connection
6.4.1 Requirements for the Backup Load connection
For Backup Load connection requirements, refer to “6.3.1 Requirements for the grid connec-
tion
” for details.
6.4.2 Assembling the Backup Load connectors
