Solplanet ASW06kH-T2 - Page 44

1
1
2
2
L2
L1
PE
N
L3
click

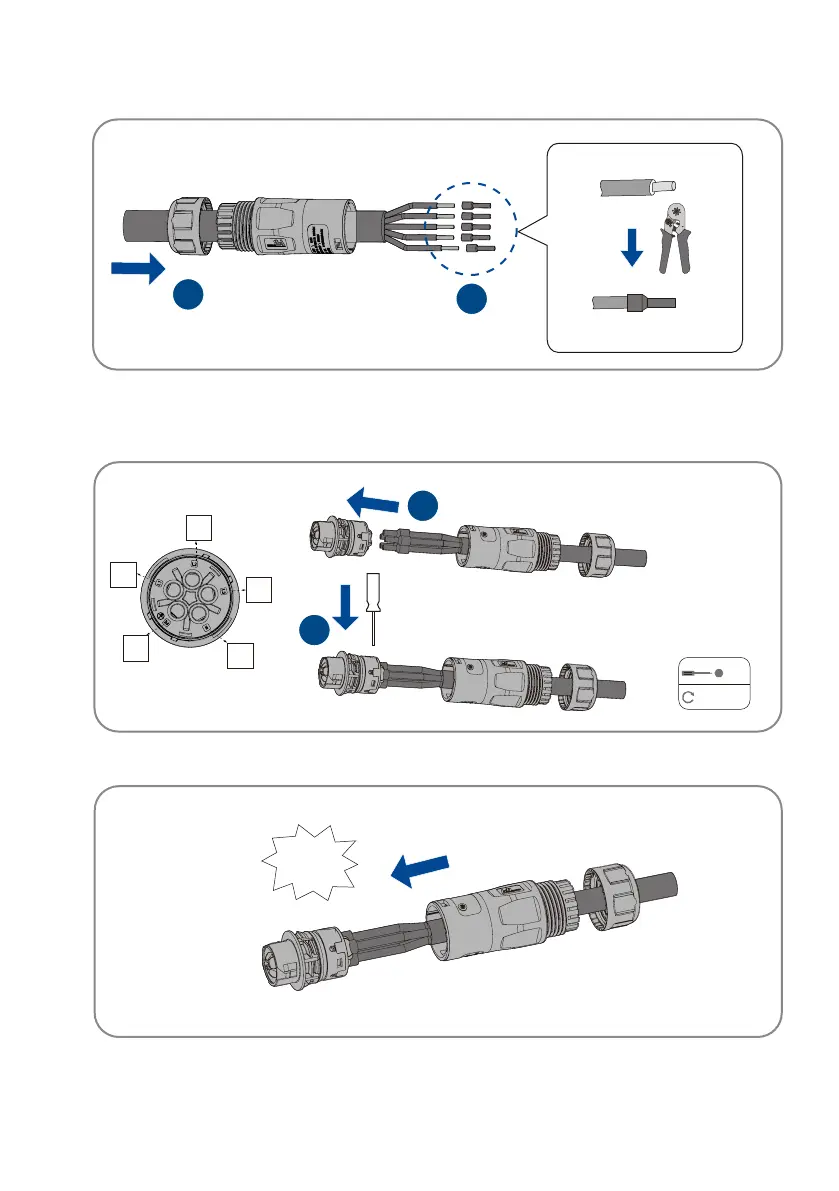

Step 3：
Crimp the terminals with crimping pliers.
1.2±0.1N·m
2mm
Step 4：Set the parts on the cable, insert the terminal holes in sequence. Crimp the wire with an
inner hexagon screwdriver and screw the torque 1.2+/-0.1N·m.
Step 5：Insert the main body into the rubber core and hear the “click” sound.
