Power connection
IWC Li-Ion motors feedback explanation

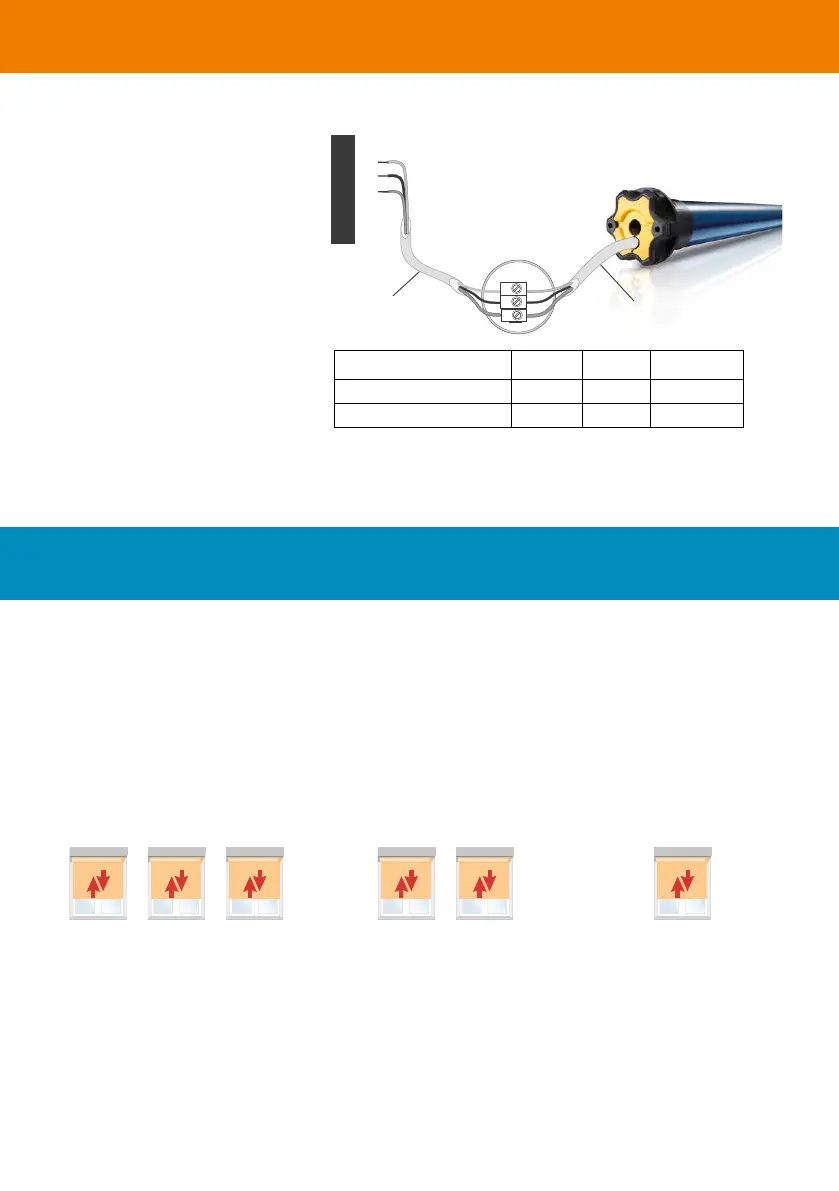

230 V AC motors:
Sonesse 40 RTS/io, 2 wires,
Sonesse (ULTRA) 50 RTS
For a motor that is in sleep mode, or with RTS Deactivated
1. Neutral 2. Phase 3. Ground
230V/50 Hz Sonesse 40 RTS Blue Black
230V/50 Hz Sonesse 50 RTS Blue Black Yellow/green
1
2
3 x 1,5 mm
2
3 x 0,75 mm
2
3
1
2
3
When connected to charger, or when the programming button on the head is pressed briefly, the motor
reacts with a number of up/down movements. The number tells the motors programmed status
If the motor moves up/down...
For Deactivating / Activating RTS, see page 49
3 times =
the motor is not programmed
2 times =
the motors is programmed, but
no control point is assigned
1 times =
the motor is programmed and
assigned to a remote control.
