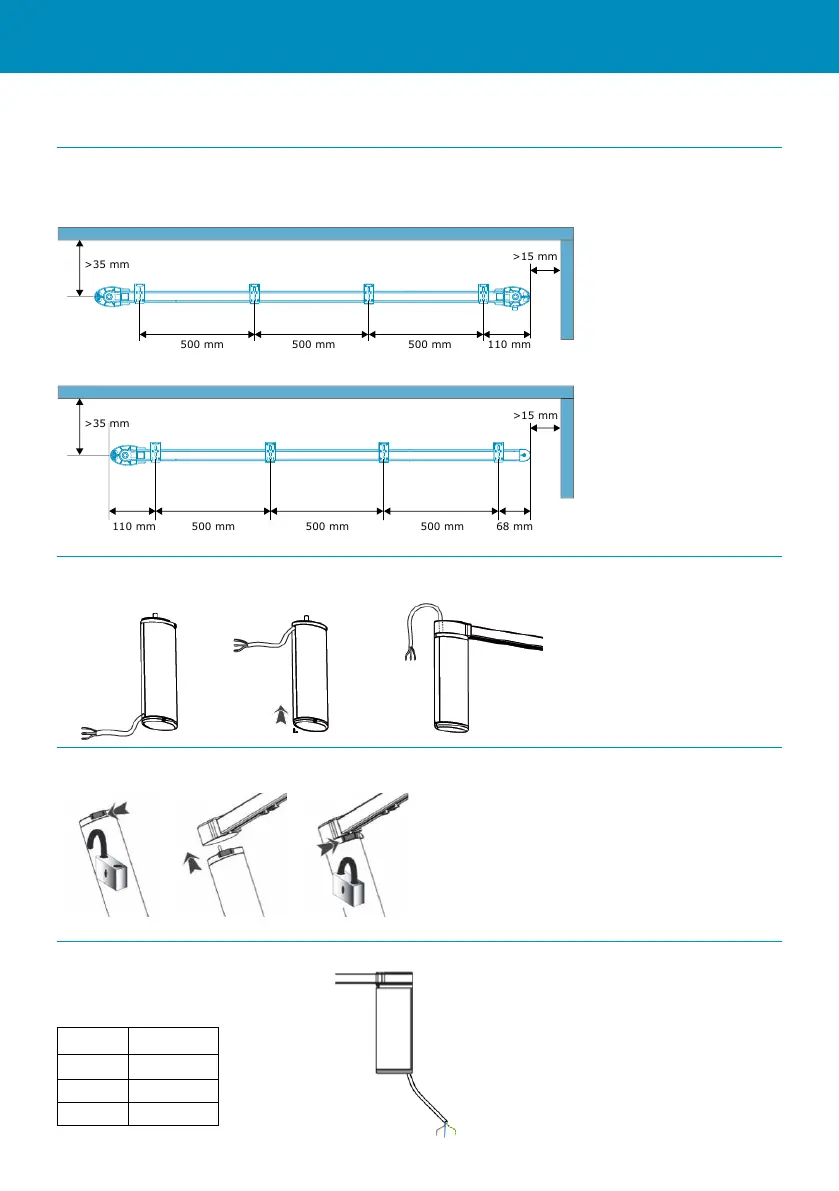

Please note there is a maximum distance between brackets and a minimum mounting distance from the

wall, see drawing below.

Motor cable output options (for Glydea Ultra 35/60 only)

Glydea ULTRA 35/60, Irismo 45 WF RTS, Movelite 35

Curtain track Basic

Attach motor to rail

Wiring guide DCT & RTS

Power connection

Wire

1. Neutral Blue

2. Live Brown

3. Earth Yellow/green

2. 3.

>35 mm

>15 mm

110 mm500 mm500 mm500 mm

>35 mm

>15 mm

68 mm110 mm 500 mm500 mm500 mm

Table of Contents3
Overview RTS Options8
Compatibility, Motor-Power Supply-Sensors9
Power Connections: Applications with RTS Integrated Motors11
Basic13
Programming and Setting of RTS Motors13
Connect the RTS Transmitter to the Motor13
Check the Motor Rotation Direction13
Change Motor Rotation Direction if Needed13
Place the Blind in the Desired up Position14
Set the down Position14
Set the up Position14
Confirm End Limit Setting14
Recording an RTS Transmitter14
Adjustments15
Adjusting the down Limit15
Adjusting the up Limit15
Set Blind Mode: Roller or Venetian16
Setting My Position for NON TILT Products17
Setting My Position for TILT Products17
Remove Programmed My Position17
Wired RTS Receivers, 24 VDC18
RTS Receivers, Setting and Programming18
Setting from the RTS Receiver19
Set the RTS Receiver in Programming Mode19
Record the First RTS Transmitter19
Power 4 X 2,5 DC RTS19
Setting from the RTS Remote Control20
Set Type of Blind: Roll up or Tilt and Lift21
Change the Motor Rotation Direction22
Sett the Time for Open and Close Movement23
Modify the MY Position, in Tilt & Lift Mode26
Modify the MY Position, in Roll up Mode27
Remove a Programmed MY-Position27
Activating the Motor Run Timer28
Add a Transmitter29
Remove an Assigned Transmitter29
Add or Remove Transmitters30
Factory Reset31
Program Individual Channels to Group Channel32
Sonesse 40 WT, Setting of End Limits33
Curtain Track34
Recommendations34
Motor Cable Output Options34
Attach Motor to Rail34
Wiring Guide DCT & RTS34
Curtain Track Motors RTS, Programming Instruction35
Connect the RTS Transmitter to the Motor35
Check the Motor Rotation Direction35
Change if Needed Motor Rotation Direction35
Record a RTS Transmitter35
Setting My Position36
Re-Adjustment of End -Limits36
Set Touch Motion or Manual over Ride Mode37
Set Track Speed, Default Speed = 20 CM/S38
Add Transmitter39
Reset Motor to Factory Mode, Erase All Settings39
Curtain Track DCT Motors, Wiring Control Unit to Glydea DCT40
Glydea DCT, Programming Instruction40
Modify Motor Rotation Direction, if Needed40
Re-Adjustment of End -Limits40
Set Touch Motion or Manual over Ride Mode41
Reset Motor to Factory Mode, Erase All Settings41
Curtain Track WT Motors, Wiring Instruction42
Programming Instruction42
Modify Motor Rotation Direction, if Needed42
Back Release Setting43
Reset Motor to Factory Mode, Erase All Settings43
Advanced44
Sun Sensor Functions44
Deactivate and Activate Privacy Function44
Set the Motor Speed45
Program Sun Disappearing Position45
Set the Tilt Speed / Scroll Wheel Step46
Modify Motor Rotation Direction47
Modify Scroll Wheel Rotation Direction47
Li-Ion Motors49
Activate/Deactivate RTS49
Temporary Sleeping Mode50
How to Replace Battery51
Sonesse 30 DCT52
Wiring52
Setting Type of Blind52
Setting of Rolling Speed52
Setting of Tilt Speed53
Reset Motor in Factory Mode53
Wired Controls for Roll up Application54
Setting of My Positions54
Wired Control for Tilt & Lift Applications55
Adjust Tilt Speed55
Set Automatic Slat Tilting55
Set My Position - from up End Limit55
Sunis RTS, Adding and Setting56
Connect Sun Sensor57
Check Sun Mode on or off58
Check and Installation59
Set the Demo Mode on59
Switch the Demo Mode off60
Explanations of LED Signals61
Is the Sunis Sensor RTS in DEMO-Mode61
Thermosunis Indoor Wirefree RTS, Adding and Setting62
Thermosunis Indoor Wirefree RTS63
Connect Sun Sensor63
Mounting of Thermosunis Indoor Wire Free RTS64
Usage Options for Thermosunis Indoor Wirefree RTS64
Get Started with Thermosunis Indoor Wire Free RTS65
Activate the Sensor66
Erase the Sensor from the Motor67
Setting of the Sensitivity (Threshold Values)68
DEMO Mode69
Sunis Wirefree II Io Sensor70
Description70
Program the Sensor on a Motor with a 1-Way Transmitter71
Programming Moco DCE73
To Change to Lift Application73
Setting of End Limits74
Tahoma75
Composition75
Connect the Box75
Create Your Account75
Configure Your Connected Home76
Add Devices76
Connexoon Window RTS77
Product Components77
To Add Products (Without Internet Connection)77
Select One of the 6 Channels78
To Register the Connexoon79
