OPERATING MANUAL PAT-1, PAT-2, PAT-2E, PAT-10 version 1.02
37

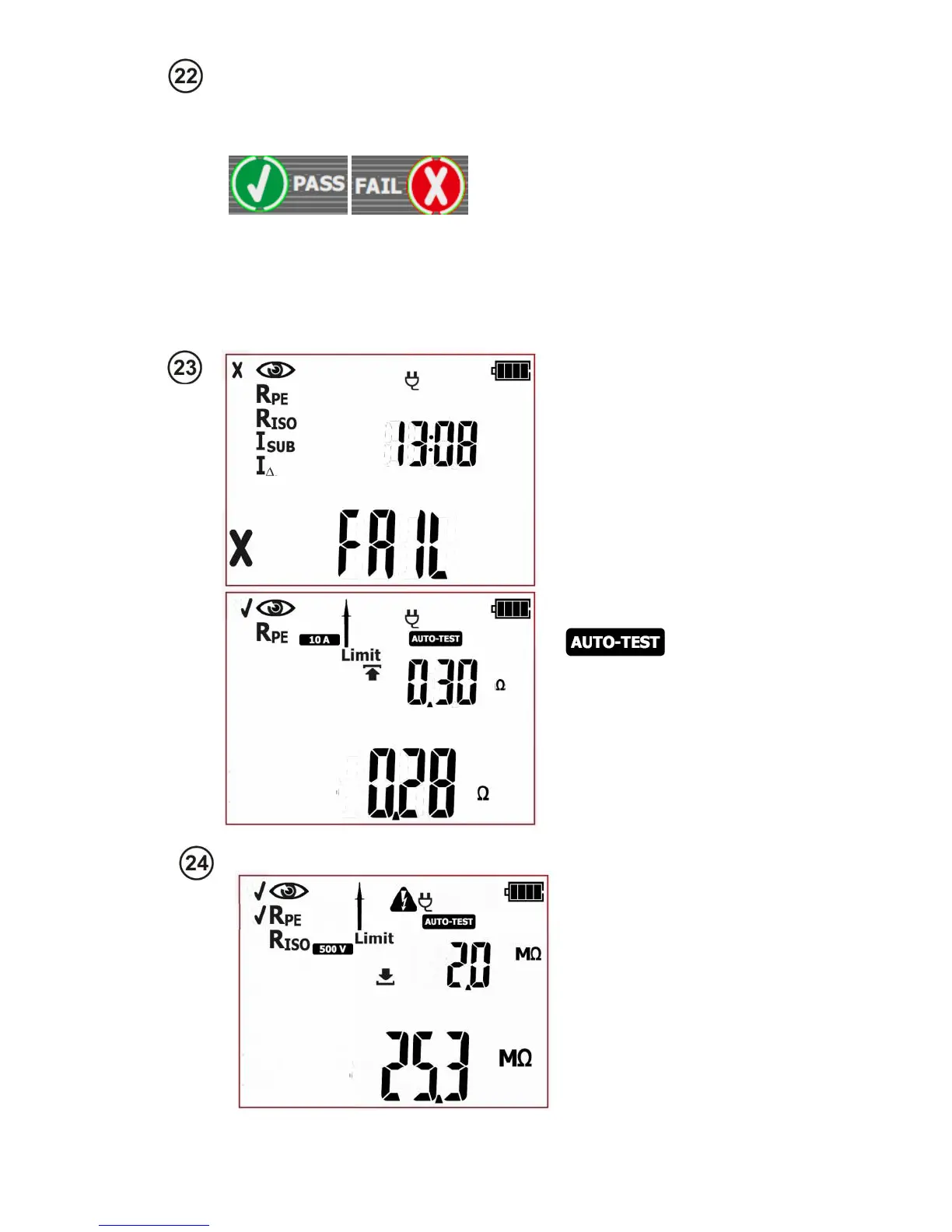

Press PASS (V) or FAIL button (X) to
evaluate the tested device’s condition:
PASS means positive visual examina-
tion result – if the AUTO-TEST mode
is on, the tester will automatically run
the sequence of tests. If the AUTO-
TEST mode is off, commencing sub-
sequent test will require pressing
START/STOP button. FAIL – means
negative visual examination result. Ir-
regularities in the device have been
found. Further measurements will not
be conducted.
Negative visual inspection
result, further measurements
will not be conducted. Red
LEDs of FAIL indication are
on. On the right side of the
screen the current time is
shown.
Positive visual inspection
result. If the AUTO-TEST
( ) mode is on,
the tester will automatically
run the subsequent tests,
which by default is: R
PE
. If the
AUTO-TEST mode is off the
tester will wait for the
START/STOP button to be
pressed.
Measurement of PE
protective conductor has
been completed. If the
measurement result is
negative, further
measurements will not be
conducted. In case of the
positive test result:
If the AUTO-TEST mode
is on, the tester will
automatically run the
subsequent test, which by
default is: R
ISO
. If the
AUTO-TEST mode is off
the tester will wait for the
