3-20
DSR-2000A/2000AP

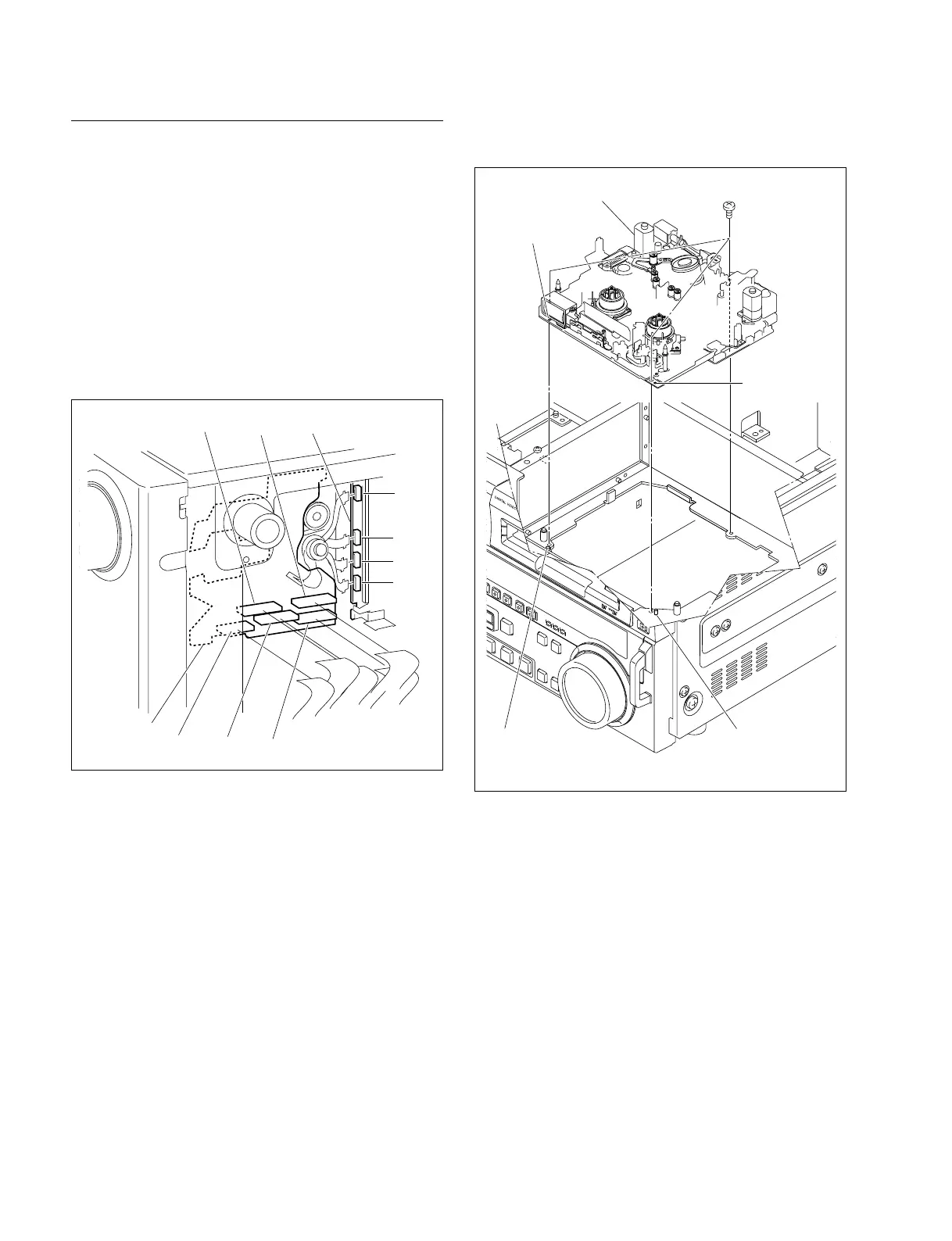

Mechanism deck assembly
Positioning hole
Positioning hole
Positioning pin Positioning pin
Screws
B2 x 4
Removal/Reattachment of the MS-64 board
(1) Remove the top panel. (Refer to Section 3-3.)
(2) Remove the cassette compartment.
(Refer to Section 3-4.)
(3) Remove the bottom plate. (Refer to Section 3-3.)
(4) Remove the MD cover. (Refer to Section 7-2)
(5) Disconnect the four flexible card wires from the
connectors (CN1, CN2, CN3 and CN4) of the RP-111
board.
(6) Disconnect the five flexible card wires from the
connectors (CN500, CN501, CN502, CN503 and
CN504) of the MS-64 board.
(7) Remove the three screws (B2 x 4) to remove the
mechanism deck from the unit
CN1
CN2
CN3
CN4
CN503
CN504
CN502
RP-111 board
CN500CN501
MS-64 board
