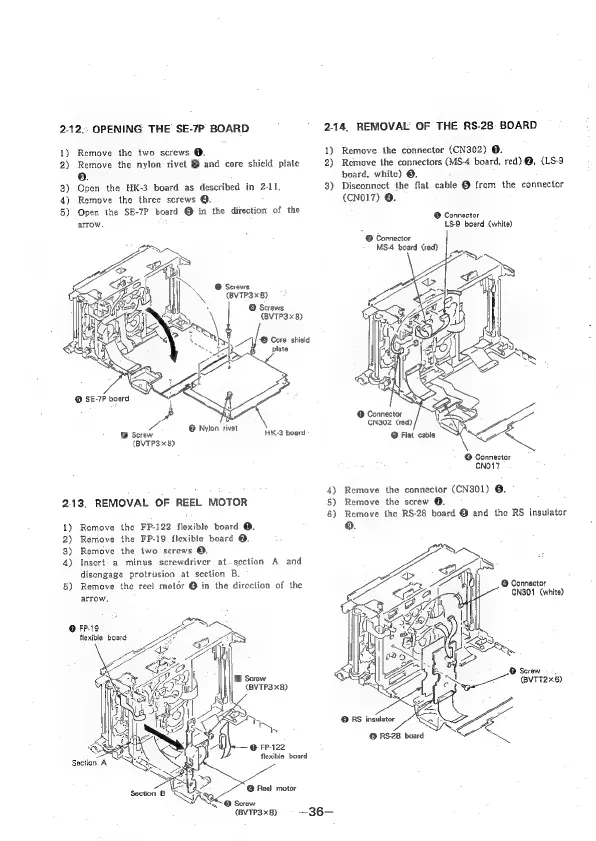

2.12.; OPENING THE SE-7P BOARD
1) Remove the two screws @.
2) Remove the nylon rivet @ and core shield ptate
8.
3) Open the HK-3 board as described in 2-11,
4) Remove the three screws Q.
5) Open the SE-7P board @ in the direction of the
arrow.
@ Screws
(BVTP3x8)
@ Screws
(BVTP3 x8)
© Core shield
@ SE-7P board
yp
:
Nyl
© Screw @ Nylon rivet
(BVTP3 x8)
HK-3 board
2.13, REMOVAL OF REEL MOTOR
1) Remove the FP-122 flexible board @.
2) Remove the FP-19 flexible board @.
3) Remove the two screws ®.
4) Insert a minus screwdriver at.section A and
disengage protrusion at section B.
5) Remove the reel motor @ in the direction of the
arrow.
@ FP-19
flexible board
© Scrow
{BVTP3 x8)
™,
@ FP122
flexible board
2-14, REMOVAL OF THE RS-28 BOARD
1) Remove the connector (CN302) O.
2) Remove the connectors (MS-4 board, red).@, (LS-9
board, white) ®.
3) Disconnect the flat cable @ from the connector
(CNO17) O.
© Connector
LS9 board (white)
@ Connector
MS board (red)
© Connector
CN3OZ (red)
© Connector
CNO17
4) Remove the connector (CN301) @.
5) Remove the screw @.
6) Romove the RS-28 board @ and the RS insulator
@ Connector
ON3O1 (white)
@ Screw
eye (BVTT2%6)
