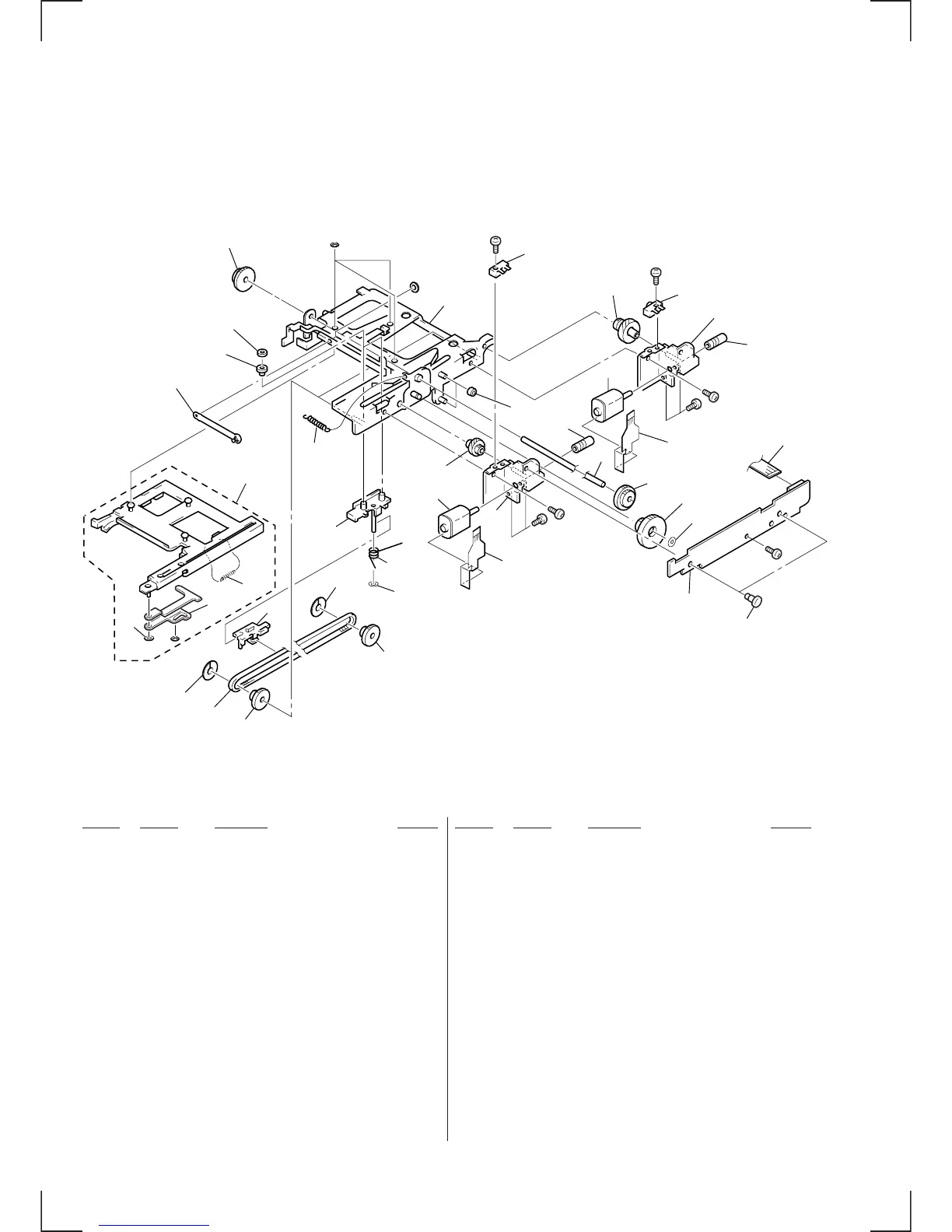

Sony HCD-MD555 - MD Mechanism Deck-2 (MDM-C1 E)

— 126 —
161
173
M904
157
175
155
158
156
164
180
170
#10
167
179
172
#13
M903
162
171
154
169
168
165
166
167
#12
S10
#12
S11
163
#11
#8
162
161
160
159
177
176
#8
174
153
151
153
152
151
164
#13
#10
#13
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
151 4-986-951-01 GEAR (4)
152 4-987-243-01 BELT, TOOTHED LOCK
153 4-986-947-01 STOPPER
154 3-701-438-21 WASHER (E-2.3), NYLON
155 4-987-236-01 SPRING, TORSION
156 X-4947-932-1 SLIDER (2) ASSY
* 157 X-3374-359-1 HOLDER (1H) ASSY
158 4-987-238-01 SPRING (2), TENSION
159 X-4948-193-1 LEVER (S) ASSY
160 4-987-111-01 ROLLER (2)
161 3-307-948-11 WASHER, NYLON
162 4-986-952-01 GEAR (5)
* 163 X-4949-171-1 CHASSIS (ELEVATOR) (NEW) ASSY
164 1-667-955-11 PC BOARD, FLEXIBLE
165 4-986-948-01 GEAR (1)
166 X-4949-225-3 BRACKET (1BN) ASSY
167 4-986-953-01 WORM
* 168 1-671-469-01 ELEVATOR RELAY BOARD
169 1-782-909-11 WIRE (FLAT TYPE) (13 CORE)
170 X-4947-928-1 BRACKET (1A) ASSY
171 4-986-950-01 GEAR (3)
172 4-987-244-01 SHAFT (1)
173 4-986-949-11 GEAR (2)
174 4-987-235-01 CLAMP (B)
175 3-326-162-08 WASHER, POLYETHYLENE, SLIT
177 4-996-395-02 SPRING (H), TENSION
179 4-987-253-01 ROLLER (1)
180 4-997-937-01 SCREW (EL), STEP
? 181 3-889-035-01 SHEET (A), ADHESIVE
182 4-900-590-01 SCREW, PRECISION SMALL
* 183 X-4950-607-1 SLIDER (3H) ASSY
M903 1-698-874-11 MOTOR, DC (LOADING)
M904 1-698-874-11 MOTOR, DC (UP/DOWN)
S10 1-762-952-11 SWITCH, PUSH (1 KEY)
S11 1-762-952-11 SWITCH, PUSH (1 KEY)
8-4. MD MECHANISM DECK-2 (MDM-C1E)
