Sony HCD-MD555 - Tray (Sub); Chassis (Mold B), Stocker, Slider (Selection)

— 34 —
Pulley (LD)
Stocker
Tray (Sub)
Pulley (Mode)
Slider (Selection)
L
R
6 Stocker
7 Two screws
(+PTP WHM 2.6)
1 Three screws
(+BVTP 2.6)
8 Slider (Selection)
2 Chassis (Mold B)
Note: Turn the pulley (LD) so
that the slider (selection) i
s
moved to the left.
9 Washer
0 Compression
spring
Pulley(LD)
3 Gear (EJECT)
4 Two step screws
5 Two step screws

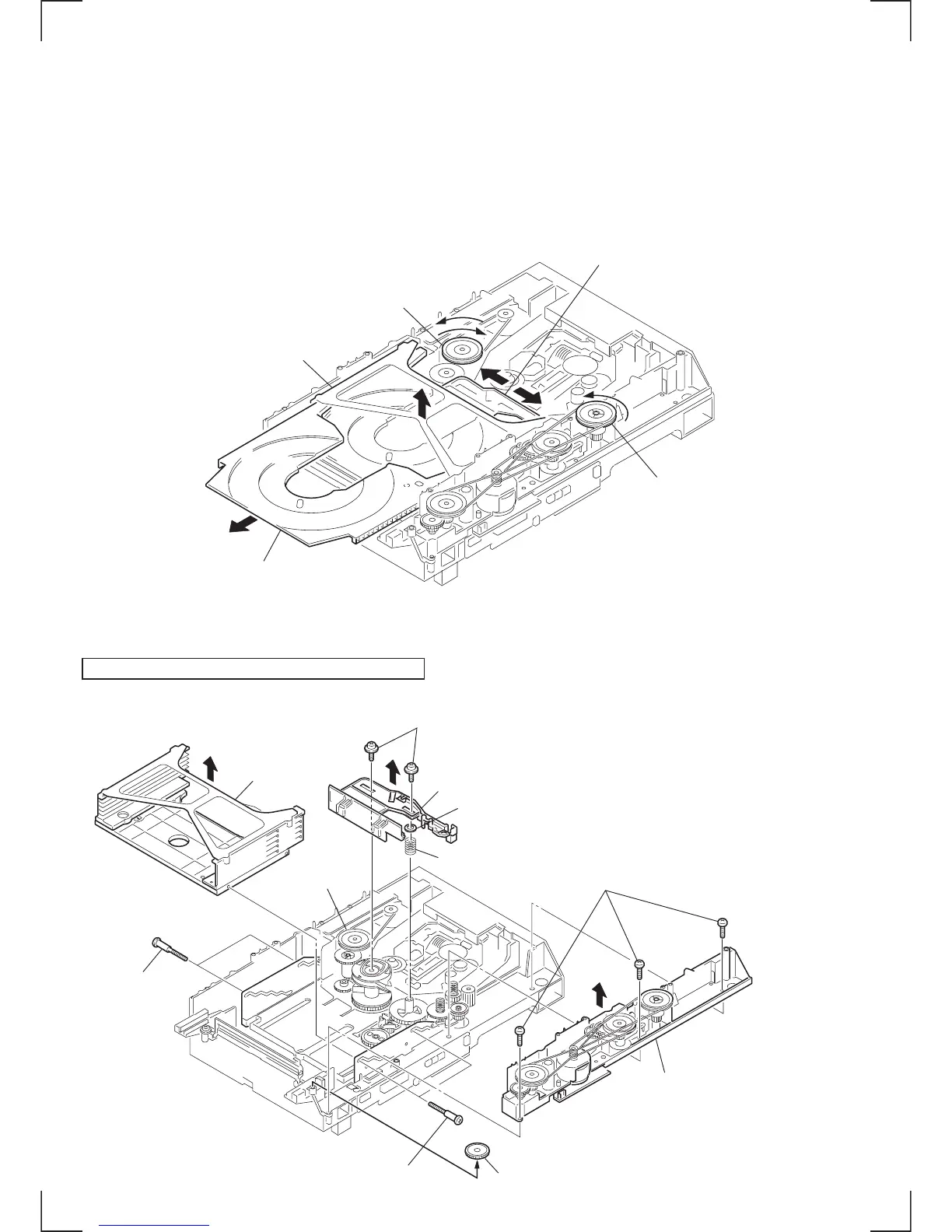

4-17. TRAY (SUB)
1 Turn the pulley (LD) and move the slider (selection) in the
direction of the arrow L.
2 Turn the pulley (mode) in the direction of the arrow to adjust
the tray (sub) that you want to remove.
(It depends on the height and position
of the stocker.)
3 Turn the pulley (LD) and move the slider
(selection) in the direction of the arrow R.
4 Turn the pulley (mode) in the direction of the arrow so
that you can remove the tray (sub) that you
want to remove.
4-18. CHASSIS (MOLD B), STOCKER, SLIDER (SELECTION)
Note: When assembling the parts, refer to pages 35 and 36.
