Sony HCD-MD555 - Power Key Board, LED Board, Panel Board; Power Transformer (T960), Trans-A;B;C;D Board

— 27 —

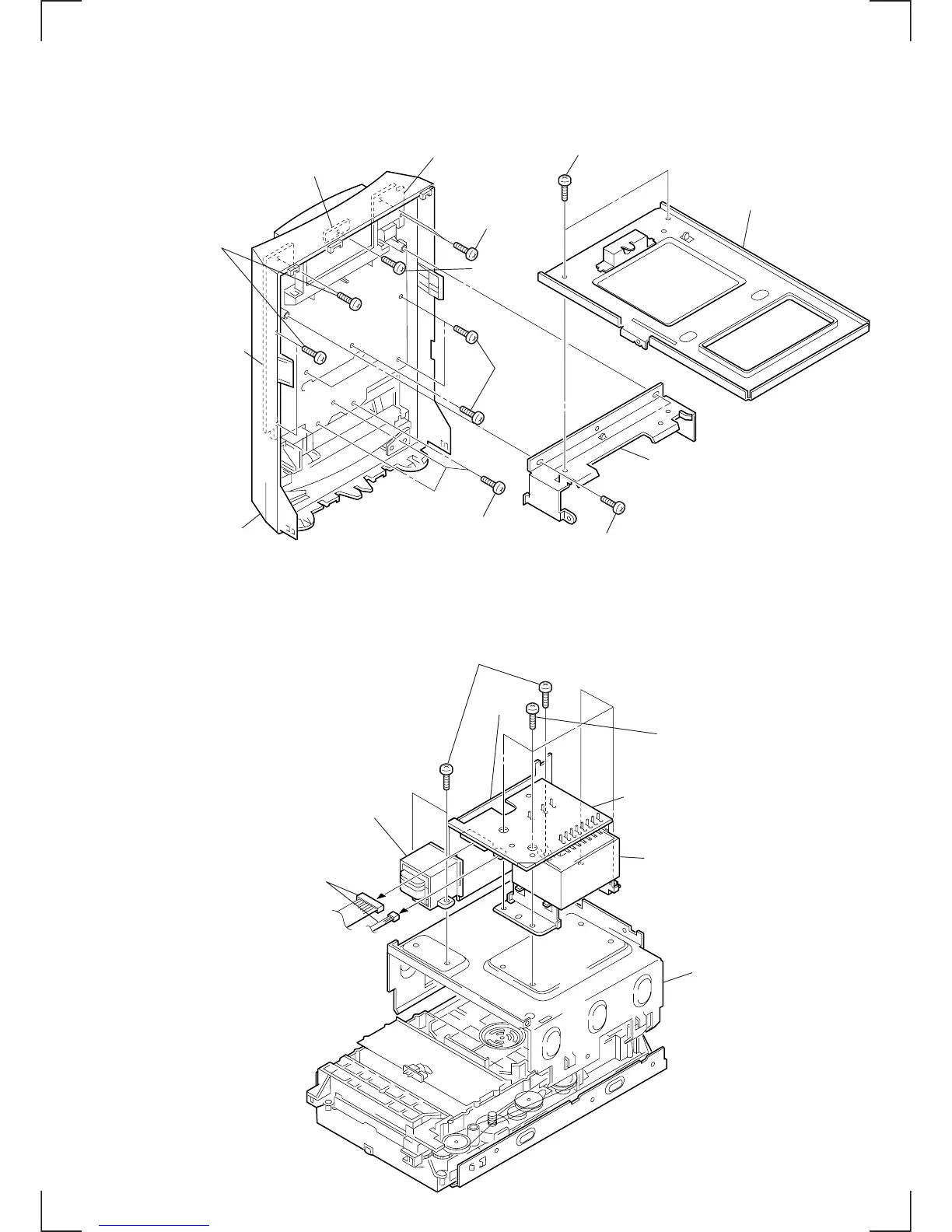

4-5. POWER KEY BOARD, LED BOARD, PANEL BOARD
4-6. POWER TRANSFORMER (T960), TRANS-A/B/C BOARD
1 Two screws
(+BV 3
× 8)
5 Two screws
(+BVTP 2.6
× 8)
9 Two screws
(+BVTP 2.6
× 8)
!º Four
screws
(+BVTP
2.6
× 8)
!¡ Three screws
(+BVTP 2.6
× 8)
3 Two screws
(+BVTP 2.6
× 8)
7 Screw
(+BVTP
2.6
× 8)
!™ PANEL board
Front panel
8 LED board
6 POWER KEY board
2 Chassis (MD)
4 Bracket
(MD chassis)
2 Three screws
(+BV 3
× 10)
1 Four screws
(+BVTT 3
× 8)
6 TRANS-B board
7 TRANS-C board
5 TRANS-A
board
4 Two connectors
8 Chassis (Transformer
)
3 Power transformer
(T960)
