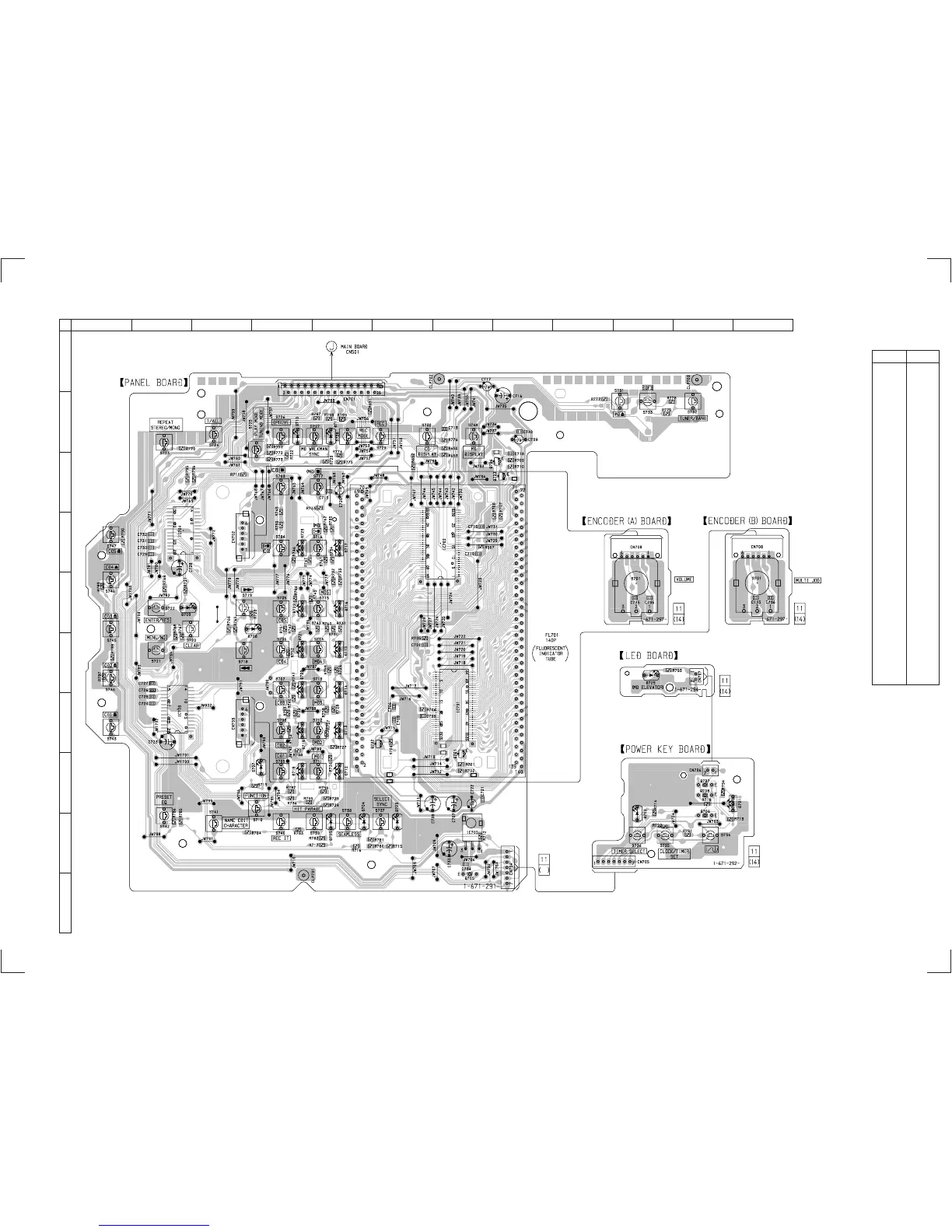

7-21. PRINTED WIRING BOARD — PANEL SECTION —
• Refer to page 61 for Circuit Boards Location.
(Page 83)
C745
C746
C743
C744
R703
R742
C741
14
12
A
B
C
D
E
F
G
H
I
J
3456789101112
16
Ref. No. Location
D701 H-12
D702 H-10
D703 H-6
D704 I-5
D705 I-5
D707 H-3
D708 F-3
D709 D-2
D710 B-4
D711 B-5
D712 H-5
D713 G-5
D714 F-5
D715 F-5
D716 E-5
D717 D-5
D718 H-4
D719 G-4
D720 F-4
D721 F-4
D722 E-4
D723 D-4
D724 B-10
D725 B-10
IC701 G-7
IC702 D-7
IC703 G-2
IC704 D-2
IC705 I-7
Q701 G-7
Q702 G-6
Q703 C-8
Q704 C-8
Q705 I-7
Q706 H-11
Q707 H-11
Q708 H-11
• Semiconductor
Location
