Sony HCD-MD555 - Printed Wiring Board - Amp Section

HCD-MD555
— 93 — — 94 —

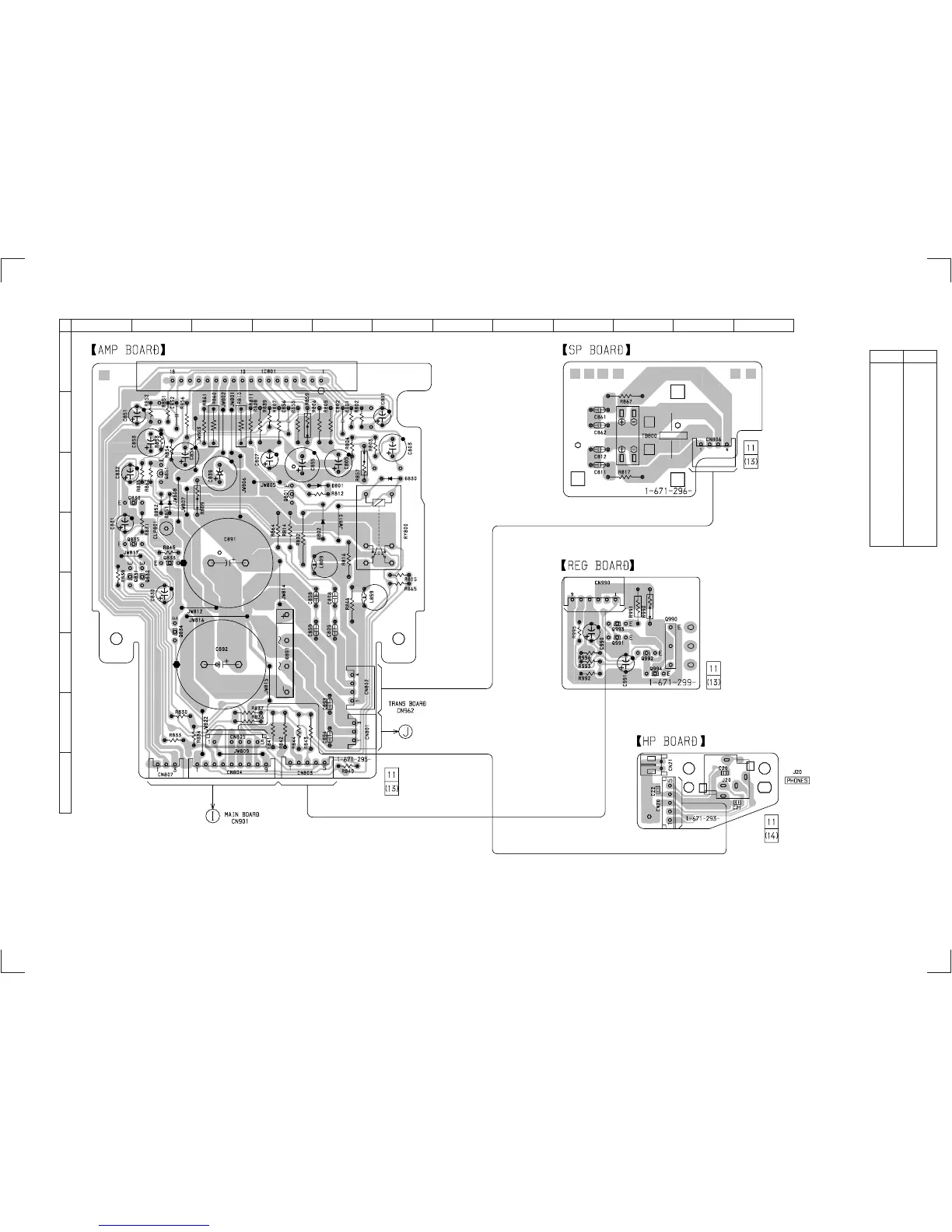

7-19. PRINTED WIRING BOARD — AMP SECTION —
• Refer to page 61 for Circuit Boards Location.
(Page 101)
(Page 83)
SPEAKER
R
L
12
A
B
C
D
E
F
G
H
3456789101112
16
Ref. No. Location
D801 C-5
D802 D-5
D830 C-6
D851 C-2
D852 C-2
D891 F-4
IC801 A-4
Q801 C-4
Q830 C-2
Q831 E-2
Q832 E-2
Q833 D-2
Q834 F-2
Q835 D-2
Q851 C-2
Q990 E-11
Q991 F-10
Q992 F-10
Q993 F-10
Q994 F-10
• Semiconductor
Location
