— 35 —
3
Gear (Gear B)
2
Gear (U/D slider)
1
Move the slider (U/D) in the
direction of the arrow as far
as it can go.
A
4
Gear (Gear A)
Attach the gear so that
radius of the gear agrees
with that of "A" portion
as shown in the figure.
Gear of the slider (U/D)
Attach the gear so that the
gear engages with the bottom
gear of the slider (U/D) as shown
in the figure.
Attach the gear so that
the gear is positioned in
line with the gear
(Gear B) as shown in
the figure.
Gear
(Gear B)
In line with this
straight line
6
Two screws
(+PTP WHM 2.6)
5
Washer
4
Compression spring
7
Insert the slider (selection)
to "A" portion.
3
Protrusion of slider (selection
1
Rotary encoder
2
Gear (chucking)
A
This portion must come
into the groove of the rotary
encoder.
Rotary encoder
Two marks must
be aligned.
Aligning the marks
Gear (Chucking)
Insert the protrusion into
the groove of the gear (chucking).

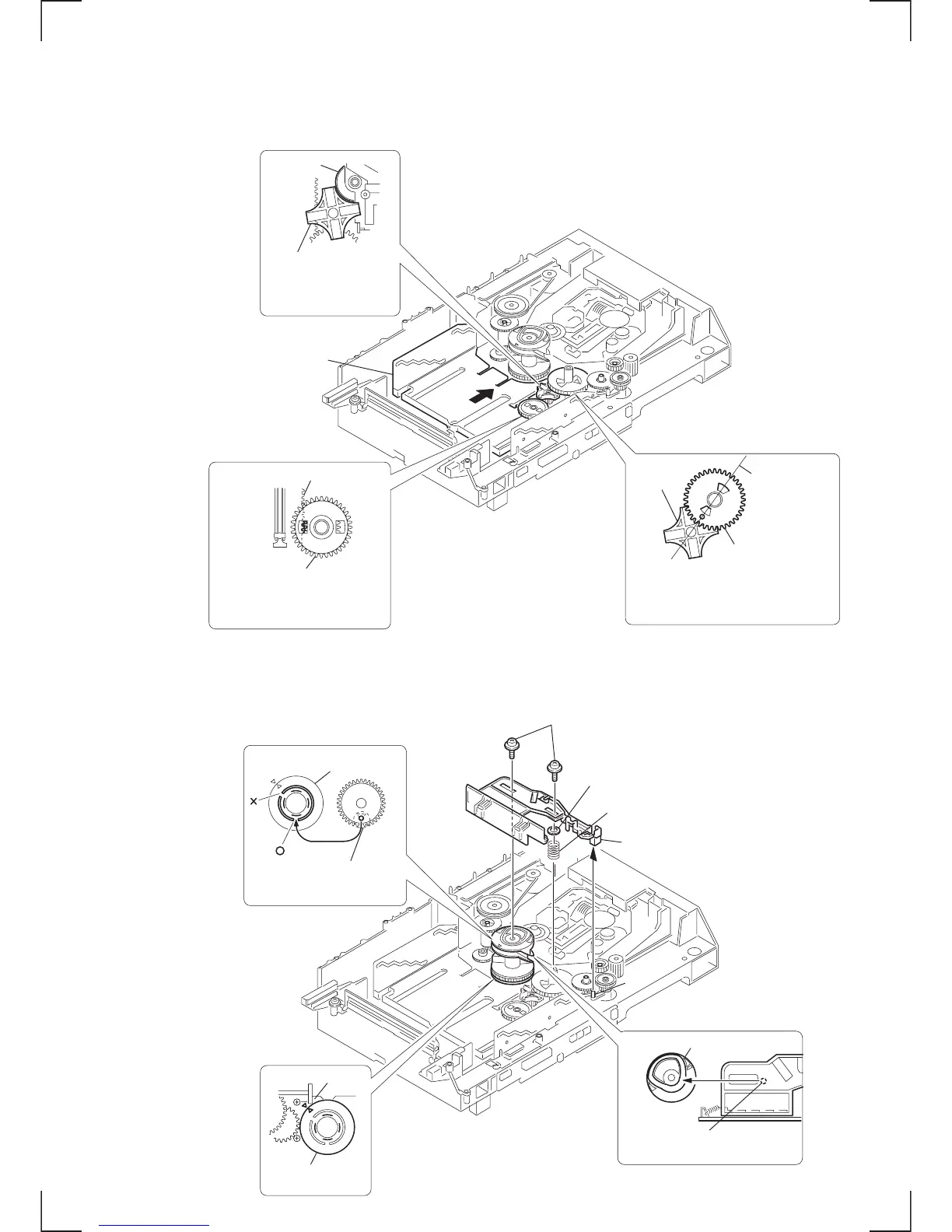

4-19. HOW TO ASSEMBLE THE GEARS
4-20. HOW TO ATTACH THE SLIDER (SELECTION)
