Sony HCD-MD555 - Printed Wiring Board - Power Section

HCD-MD555
— 101 — — 102 —

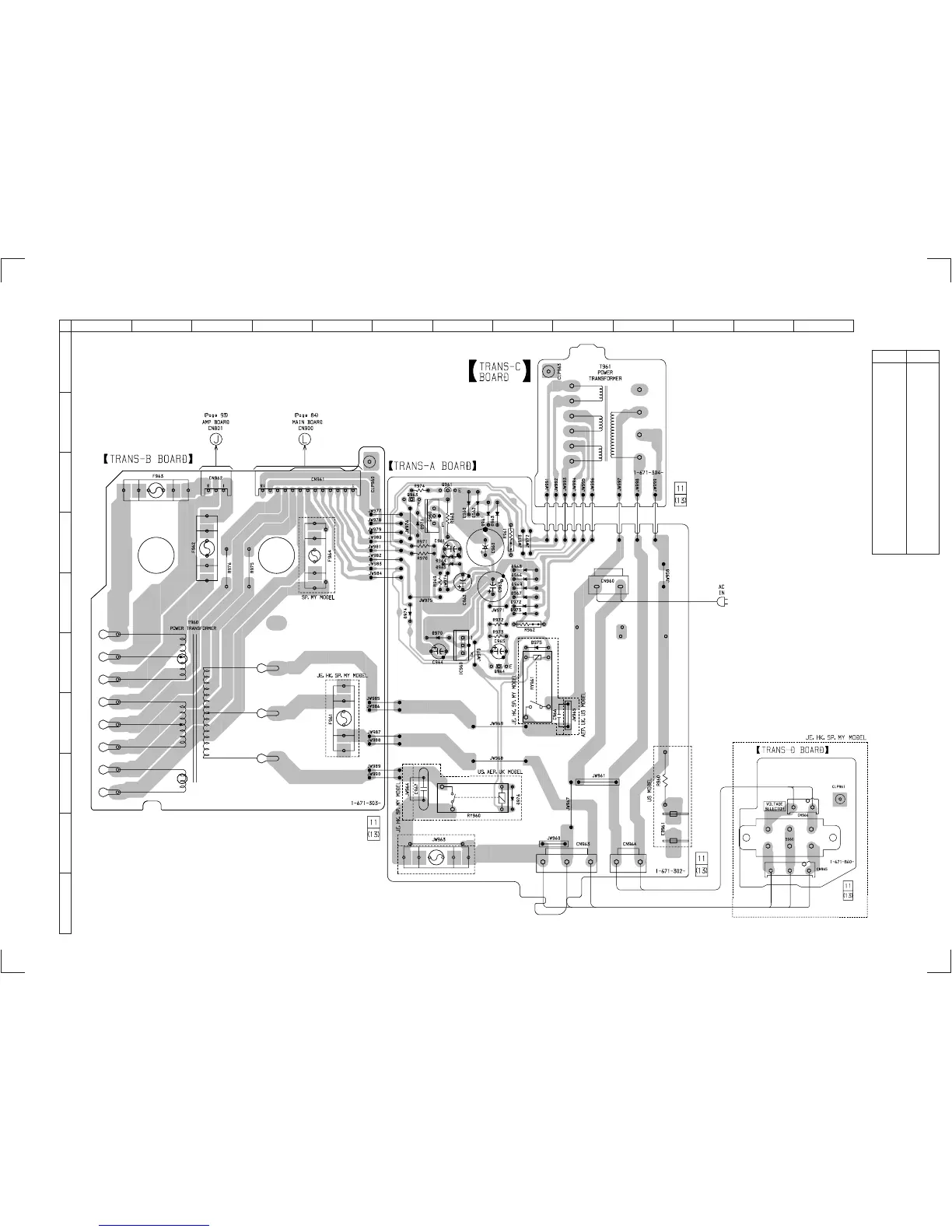

7-23. PRINTED WIRING BOARD — POWER SECTION —
• Refer to page 61 for Circuit Boards Location.
Ref. No. Location
D960 C-7
D961 C-7
D962 C-7
D963 C-8
D964 D-7
D965 D-7
D966 D-8
D967 E-8
D968 D-8
D969 D-8
D970 E-7
D971 C-6
D972 E-8
D973 E-8
D974 E-6
D976 H-8
IC960 F-7
Q960 C-6
Q961 C-7
Q963 C-6
Q964 F-8
• Semiconductor
Location
F960
US MODEL
EXCEPT US MODEL
12
A
B
C
D
E
F
G
H
I
J
345678910111213
16
