Sony HCD-MD555 - MD Base Unit (MBU-C1 E)

— 127 —
201
217
M102
209
208
206
205
207
204
203
215
211
212
#16
M681
213
211
HR901
#17
210
214
202
#15
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
* 201 A-4724-319-A BD(MD) BOARD, COMPLETE
202 4-979-911-21 GEAR (B)
! 203 8-583-028-02 OPTICAL PICK-UP BLOCK KMS-260A/J1N
204 1-664-039-11 PC BOARD, OP TRANSLATION FLEXI
205 4-963-914-02 RACK (INSERTER)
206 3-366-890-11 SCREW (M1.4)
* 207 1-671-467-01 SW BOARD
208 4-987-061-01 SPACER (RACK)
209 4-955-841-11 SCREW
210 4-979-906-11 SPRING (LEAD SCREW)
211 3-342-375-11 SCREW (M1.7 × 1.4), SPECIAL
* 212 4-988-702-01 SHAFT (MAIN)
* 213 4-988-484-01 STOPPER
214 A-3304-200-A SCREW ASSY, LEAD
* 215 4-983-511-02 PIN (OUTSERT)
217 4-908-618-21 SCREW (+BTP) (2 × 6)
218 4-967-688-11 MAGNET, ABSORPTION
219 4-979-914-01 SPRING (CLV), TORSION
220 4-996-088-01 SPRING (AU3)
HR901 1-500-489-14 HEAD, OVER LIGHT
M102 A-4672-240-A MOTOR ASSY, SLED
M681 A-4672-241-A MOTOR ASSY, SPINDLE

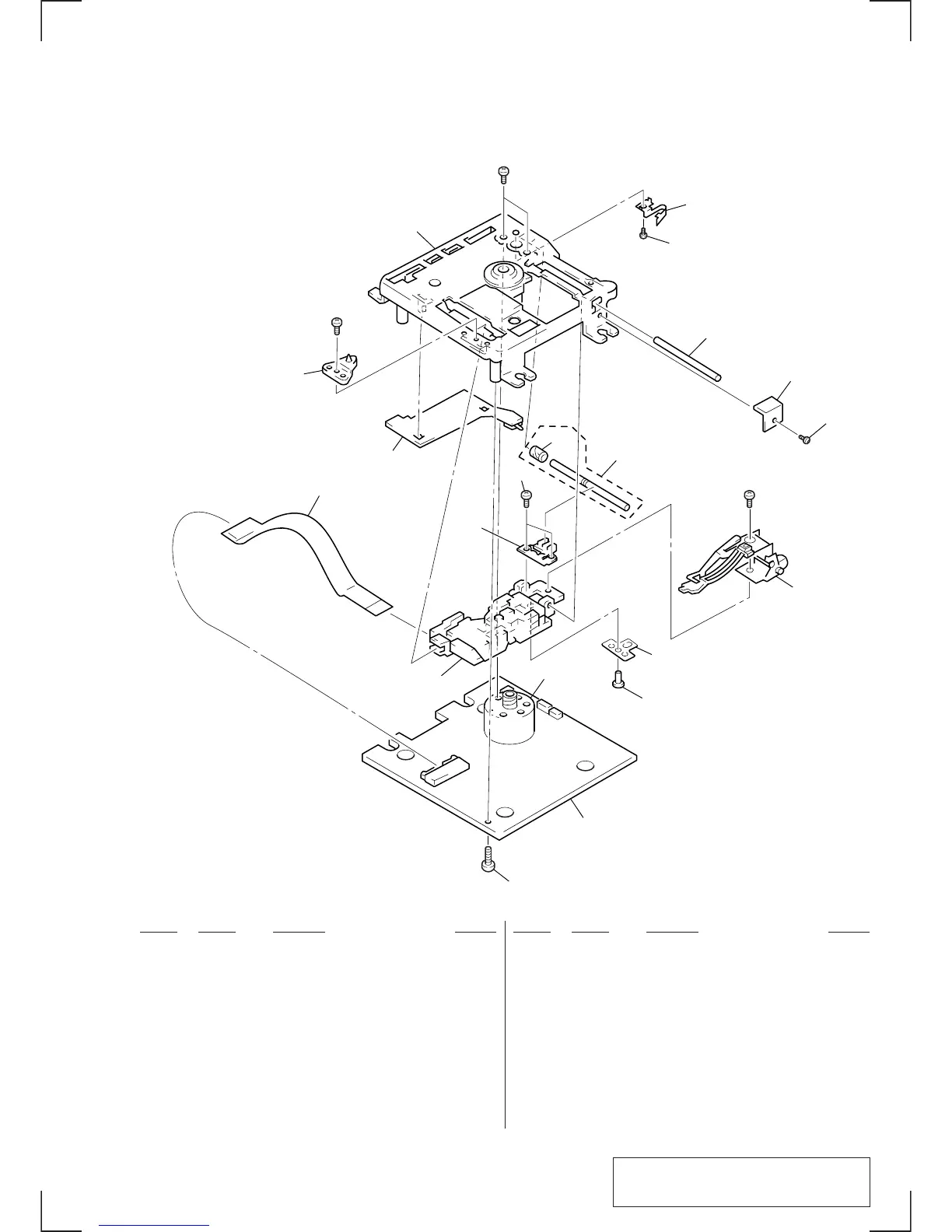

8-5. MD BASE UNIT (MBU-C1E)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
