Sony HCD-MD555 - CD Mechanism Deck-2 (CDM53-K1 BD33)

— 129 —
339
333
306
252
341
315
312
314
313
310
309
307
308
311
318
320
322
323
324
317
321
319
313
316
339
331
331
307
313
BU-K1BD33
307
328
340
327
326
325
334
329
307
301
302
303
304
305
332
332
330
340
338
#19
M701
#19
#19
#19
not supplied
not supplied
not supplied
not supplied
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
301 4-211-212-01 TRAY (SUB NO1)
302 4-211-212-11 TRAY (SUB NO2)
303 4-211-212-21 TRAY (SUB NO3)
304 4-211-212-31 TRAY (SUB NO4)
305 4-211-212-41 TRAY (SUB NO5)
306 4-211-210-01 STOCKER (L)
307 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
308 4-211-233-01 SLIDER (SELECTION)
309 4-212-678-01 SPRING (SHUTTER), TENSION
310 4-212-677-01 SLIDER (SHUTTER)
311 4-211-230-01 GEAR (CHUCKING)
312 4-211-237-01 BELT (MODE)
313 4-951-620-41 SCREW (2.6), +BVTP
314 4-211-214-01 PULLEY (LD)
315 4-211-232-01 GEAR (MODE DECELERATION)
316 4-211-215-01 GEAR (EJECT)
317 4-211-245-01 SPRING, COMPRESSION
318 4-211-221-01 GEAR (LD MOVABLE)
319 4-211-217-02 GEAR (SELECTION)
320 4-211-242-01 SHAFT (SELECTION GEAR)
! 321 1-418-045-01 ENCODER, ROTARY
322 4-211-240-01 GEAR (LD DECELERATION B)
323 4-211-216-01 GEAR (RELAY)
324 4-211-241-01 LEVER (SELECTION)
326 4-211-218-01 GEAR (GEAR A)
327 4-211-219-01 GEAR (GEAR B)
328 4-211-220-01 GEAR (U/D SLIDER)
* 329 1-671-507-12 CLAMP MOTOR BOARD
330 X-4950-322-2 HOLDER (BU) ASSY
331 4-211-871-11 INSULATOR (M)
332 4-211-871-01 INSULATOR (M)
333 4-211-224-02 BASE (STOCKER), FITTING
334 3-701-446-21 WASHER, 8
338 4-211-223-01 SLIDER (U/D)
339 4-211-244-01 SCREW, STEP
340 4-933-134-01 SCREW (+PTPWH M2.6 × 6)
341 4-211-211-01 STOCKER (R)
? 342 3-341-549-21 SCREW(2.6 × 12)(DIA.7.5),+PTP WH
343 3-831-441-99 CUSHION, SPEAKER
344 4-216-879-01 SPRING (GEAR A), COMPRESSION
M701 X-4950-341-1 MOTOR (CLAMP) ASSY

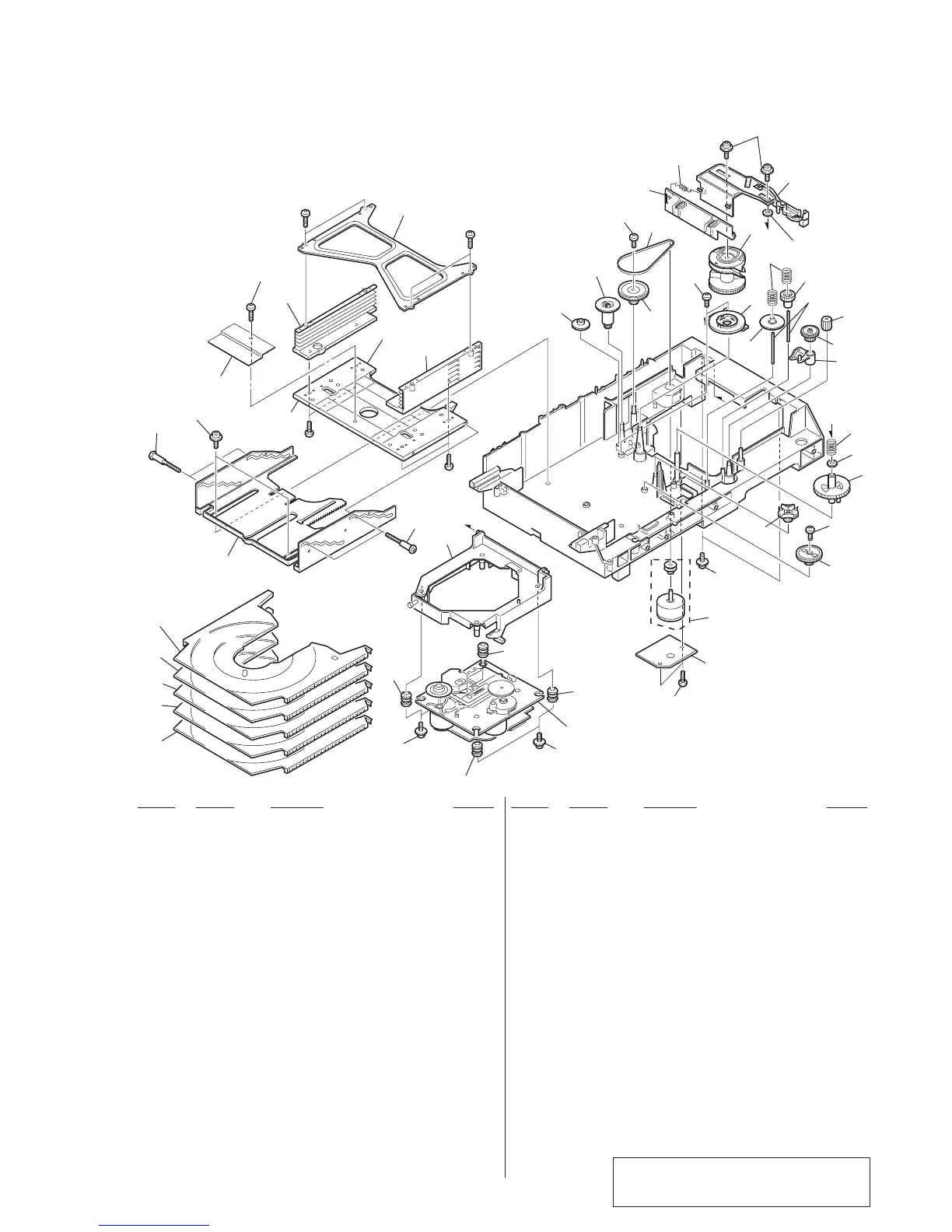

8-7. CD MECHANISM DECK-2 (CDM53-K1BD33)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
Ver 1.1 2001. 08
