Sony HCD-MD555 - CD Optical Pick-Up Block (KSS-213 BA;F-NP); Fitting Base (Guide;Magnet) Assy

— 33 —
1 Two screws
(+PTPWHM 2.6)
1 Two screws
(+PTPWHM 2.6)
2 Optical pick-up bloc
k
(KSS-213BA/F-NP)
8 Four screws
(+BVTP 2.6)
7 Connector
9 Fitting base (Magnet) ass
y
5 Two screws
(+BVTP 2.6)
4 Two screws
(+BVTP 2.6)
6 Loading panel
(Chassis)
2 Four screws
(+BVTP 2.6)
3 Fitting base (Guide) assy
1 Two connectors

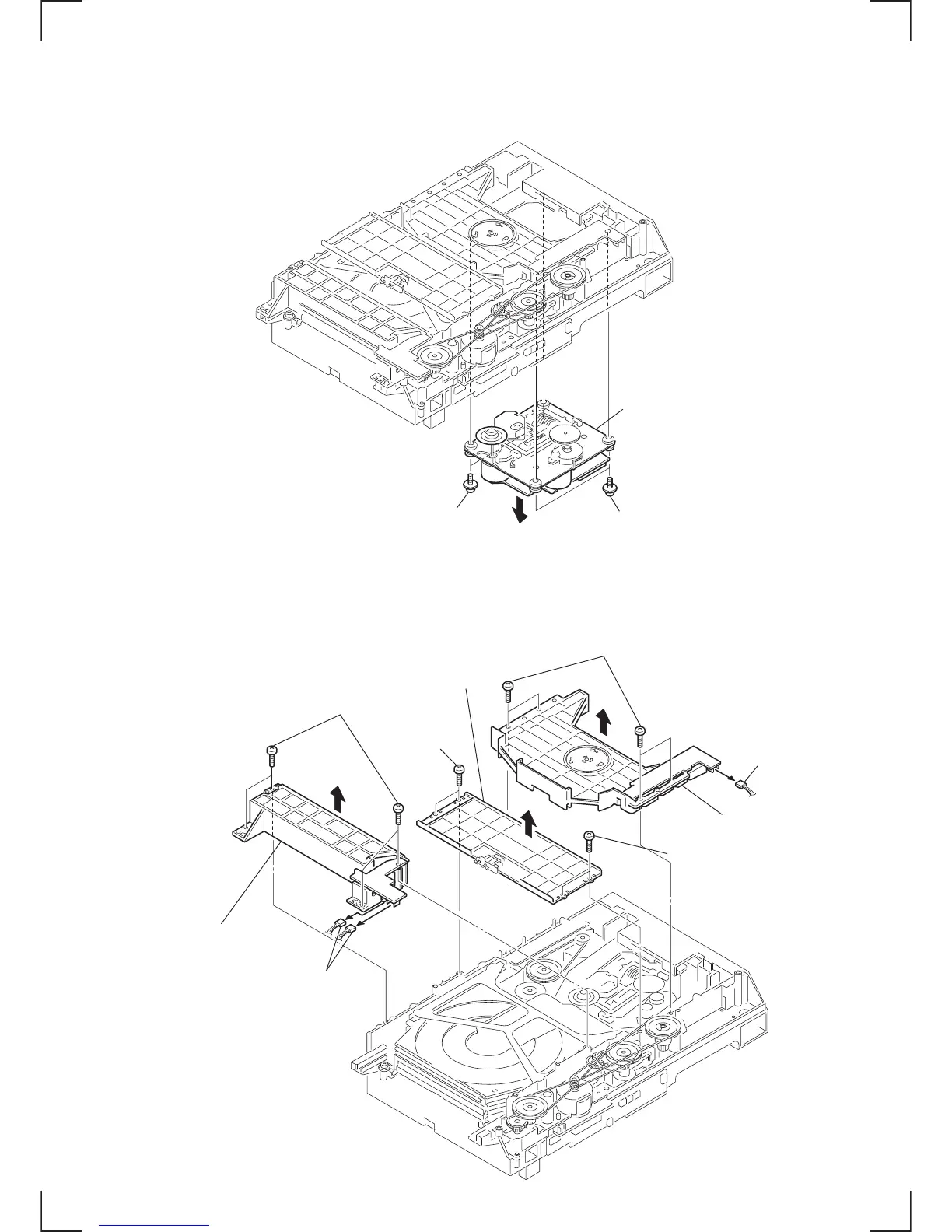

4-15. CD OPTICAL PICK-UP BLOCK (KSS-213BA/F-NP)
4-16. FITTING BASE (GUIDE/MAGNET) ASSY
