Sony HCD-MD555 - DISASSEMBLY PROCEDURES; Component Disassembly Steps

— 25 —
SECTION 4
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

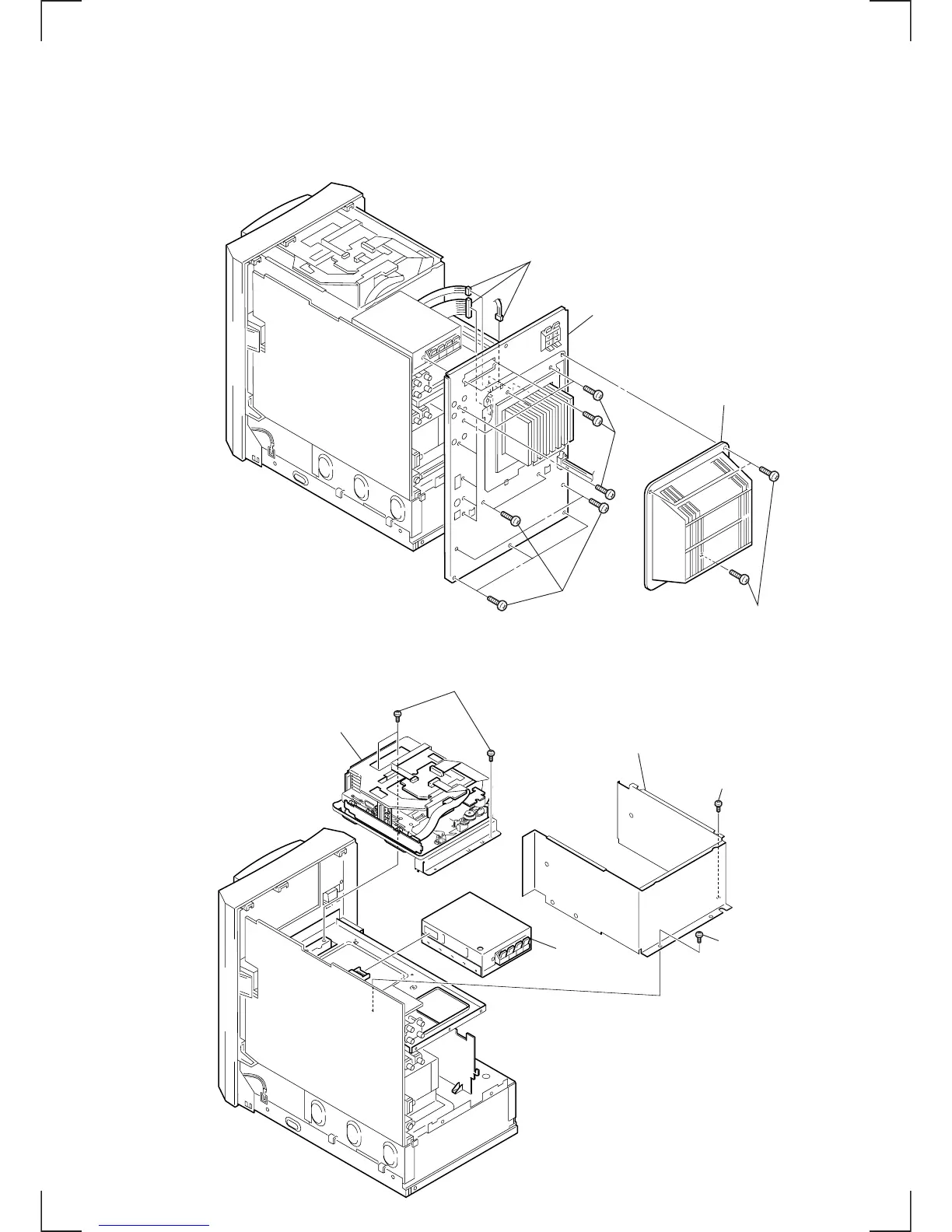

4-1. BACK PANEL
• Remove the upper cover first.
4-2. MECHANISM (MDM-C1E)
5 Three connectors
6 Back panel
2 Cover (Back)
3 Ten screws
(+BV 3 × 8)
4 Seven screws
(+BV 3 × 8)
1 Three screw
s
(+BV 3 × 8)
4 Cover (MDM)
6 MD mechanism
(MDM-C1E)
1 TUNER
5 Three screws
(+BV 3 × 8)
3 Screw (+BV 3 × 8)
2 Screw (+BV 3 × 8)
