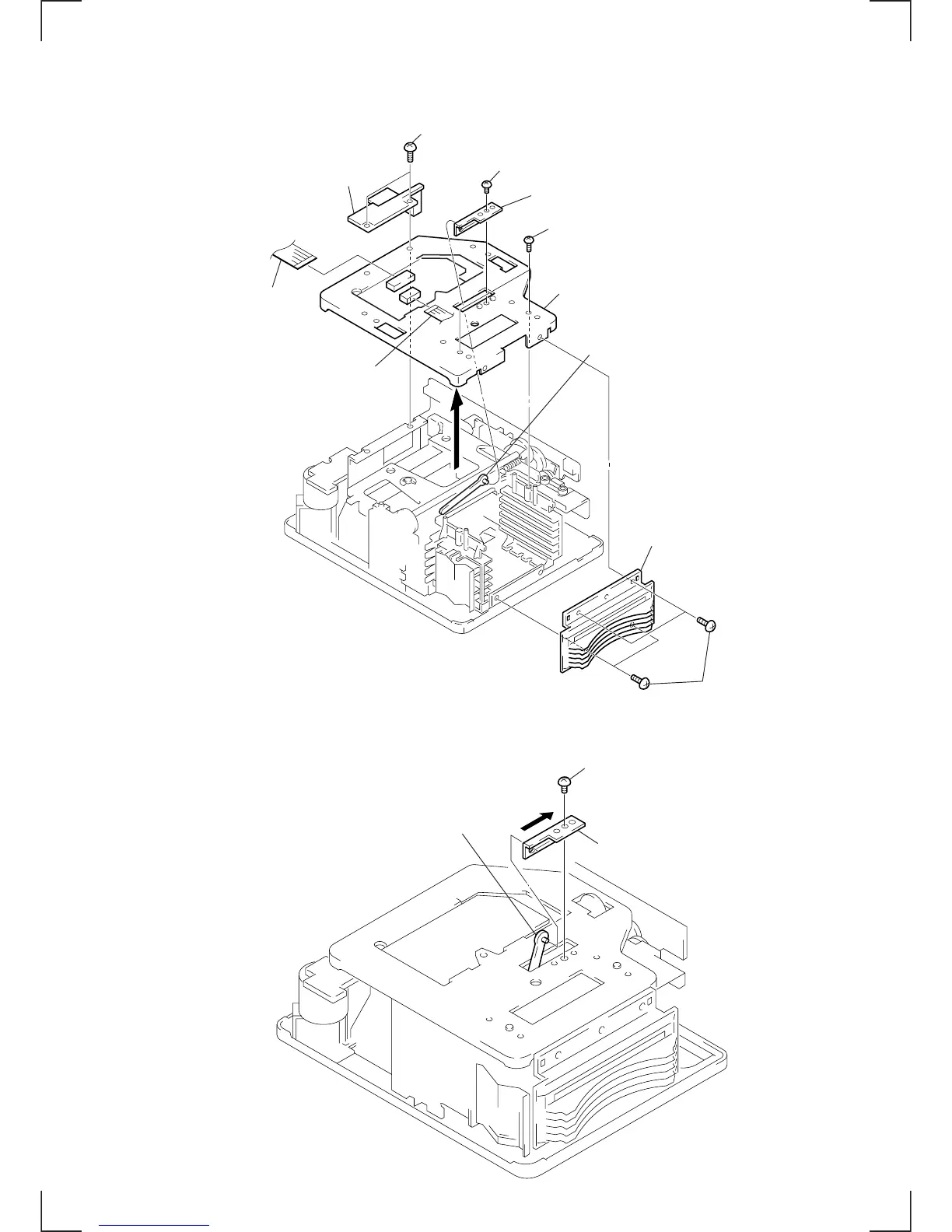

4-8. ESCUTCHEON, CHASSIS (TOP)
5 Two screws
(+BVTT 2.6 × 5)
!º Two screws
(+P 2 × 5)
1 Four screws
(+BVTT 2.6 × 5
)
!™ Chassis (TOP)
2 Escutcheon
8 Lever (S) assy
6 Cover (FFC)
9 Bracket (To assemble the bracket,
refer to the following note.)
4 Flat type wire
(13 core)
3 Flat type wire
(7 core)
7 Screw (+BVTT 2.6 × 5)
!¡
Screw (+BVTT 2.6 × 5)
Lever (S) assy
Bracket
Note: When assembling the bracket, raise the lever (S) assembly,
engage it with the bracket, and slide them in the direction
of the arrow.
