Sony HCD-MD555 - MD Base Unit (MBU-C1 E); BD Board

— 31 —

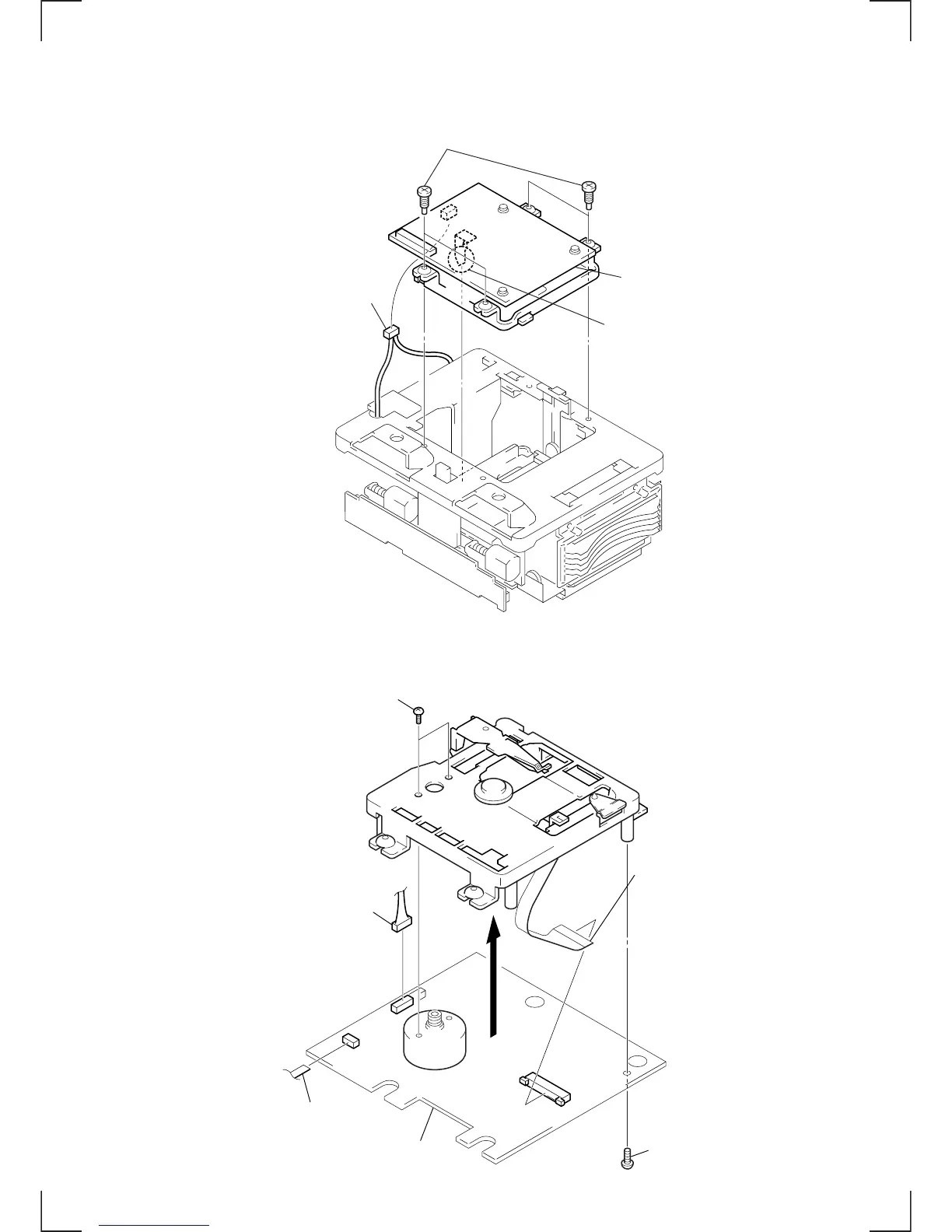

4-11. MD BASE UNIT (MBU-C1E)
2 Four step screws
1 Connector
3 MD base unit (MBU-C1E)
Note: Remove the MD base unit while
being careful of the over-write head.
Over-write head
4 Two screws
(+P 1.7
× 2.2)
2 Connector
1 Flexible pc board
6 OP translation flexible
pc board
7 BD board
3 Screw
(+BVP 2
× 6)
5
4-12. BD BOARD
