Sony HCD-MD555 - Schematic Diagram - Power Section

HCD-MD555
— 99 — — 100 —

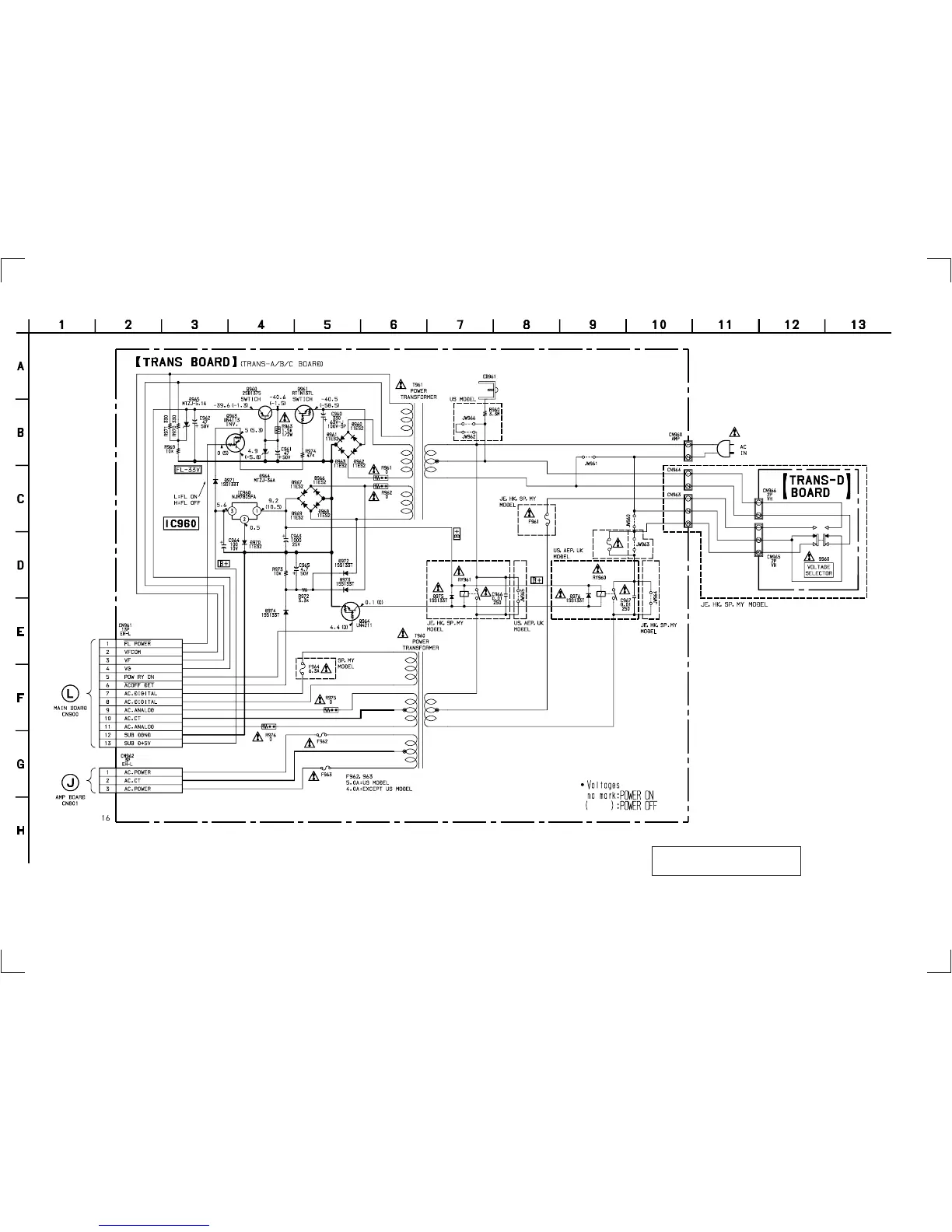

7-22. SCHEMATIC DIAGRAM — POWER SECTION —
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
2.5A
250V
4A
125V
F960
EXCEPT
US MODEL
US MODEL
