SECTION 8
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
— 123 —
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
29
12
not
supplied
#1
not
supplied
12
28
MDM-C1E
#1
5
4
3
not
supplied
8
not
supplied
11
9
7
13
6
not supplied
10
18
16
19
17
22
12
not supplied
21
36
2
12
12
1
12
12
12
24
25
23
31
30
32
33
39
#1
#1
#1
#1
not supplied
not
supplied
not
supplied
34
27
20
15
14
12
#1
28
28
#1
#1
#1
#1
not supplied
27
26
#1
#6
#1
1 4-212-246-01 SPRING (CD)
* 2 4-930-336-71 FOOT (FELT)
3 4-212-239-01 EMBLEM (5MD/5CD)
4 4-212-228-01 LID (CD)
5 4-212-225-01 KNOB (JOG)
6 4-925-161-81 EMBLEM (4-A), SONY
7 4-212-226-02 LID (MD)
8 4-212-227-02 BASE (LID)
9 4-989-453-11 CUSHION (LID)
10 4-212-247-01 PLATE, LIGHT GUIDE
11 3-354-963-21 DAMPER
12 4-951-620-01 SCREW (2.6 × 8), +BVTP
13 X-4950-345-1 PANEL ASSY, FRONT (JE,US,HK,SP,MY)
13 X-4950-420-1 PANEL ASSY, FRONT (AEP,UK)
14 X-4950-325-1 BRACKET (CD LID) (L) ASSY
15 X-4950-326-1 BRACKET (CD LID) (R) ASSY
16 X-4950-327-1 BRACKET (MD LID) ASSY
17 3-736-779-41 MAGNET
* 18 1-671-297-11 ENCORDER BOARD(B)
* 19 1-671-297-11 ENCORDER BOARD(A)
* 20 1-671-293-11 HP BOARD
* 21 1-671-305-11 WM BOARD
* 23 A-4417-173-A PANEL BOARD, COMPLETE
* 24 1-671-294-11 LED BOARD
* 25 1-671-292-11 POWER KEY BOARD
* 26 4-212-205-11 CASE
27 3-363-099-11 SCREW (CASE 3 TP2)
28 3-831-441-11 CUSHION
29 1-790-136-11 WIRE (FLAT TYPE) (23 CORE)
30 1-233-544-22 ENCAPSULATED COMPONENT (US)
30 1-233-546-22 ENCAPSULATED COMPONENT (JE,HK,SP,MY)
30 1-693-387-21 TUNER (FM/MW/LW) (AEP,UK)
* 31 1-671-301-11 RDS BOARD (AEP,UK)
* 32 A-4417-169-A MAIN BOARD, COMPLETE (US)
* 32 A-4417-181-A MAIN BOARD, COMPLETE (AEP,UK)
* 32 A-4417-187-A MAIN BOARD, COMPLETE (JE,HK,SP,MY)
33 1-790-135-11 WIRE (FLAT TYPE) (19 CORE)
34 1-790-252-11 WIRE (FLAT TYPE) (17 CORE)
39 4-889-836-01 CUSHION
* 40 4-023-575-01 CUSHION, LID

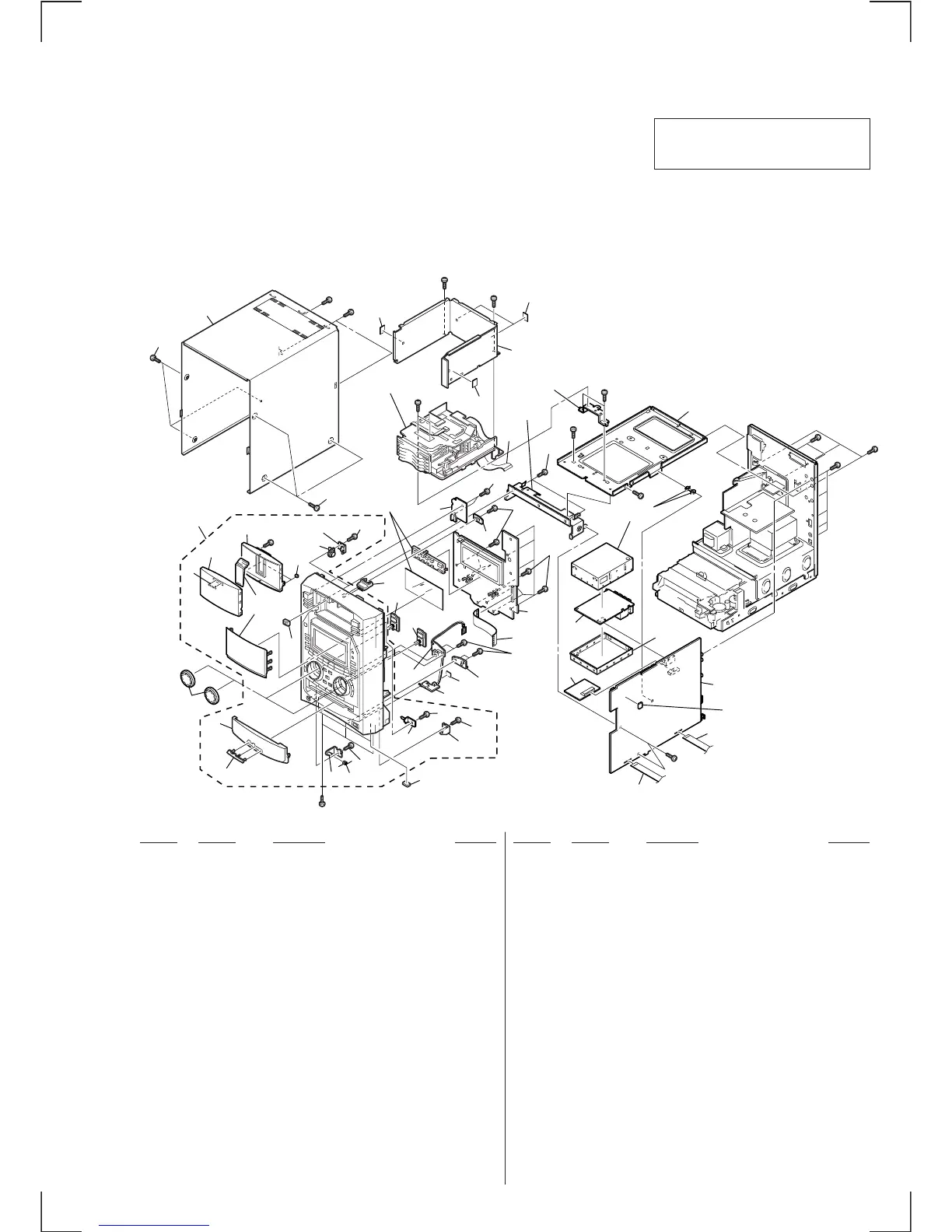

8-1. MAIN BLOCK
• Abbreviation
HK : Hong Kong
SP : Singapore
MY : Malaysia
JE : Tourist
