Sony HCD-MD555 - How to Attach the Stocker; How to Attach the Chassis (Mold B)

— 36 —
2 Tray (Sub) A
4 Two step screws
3 Two step screws
1 Stocker
Catch of the
slider (selection)
Engage the "A" portion of the
tray (sub) with the slider (selection).
"A" portion of the
tray (sub)
Tray (Sub) A
3 Three screws
(+BVTP 2.6)
1 Chassis (Mold B)
Insert the "A" portion to the
"B" portion of the slider (selection).
A
2 Gear (EJECT)
Insert the gear (EJECT) beneath
the gear (LD deceleration).
Gear (LD deceleration)
"B" portion of the slider (selection)

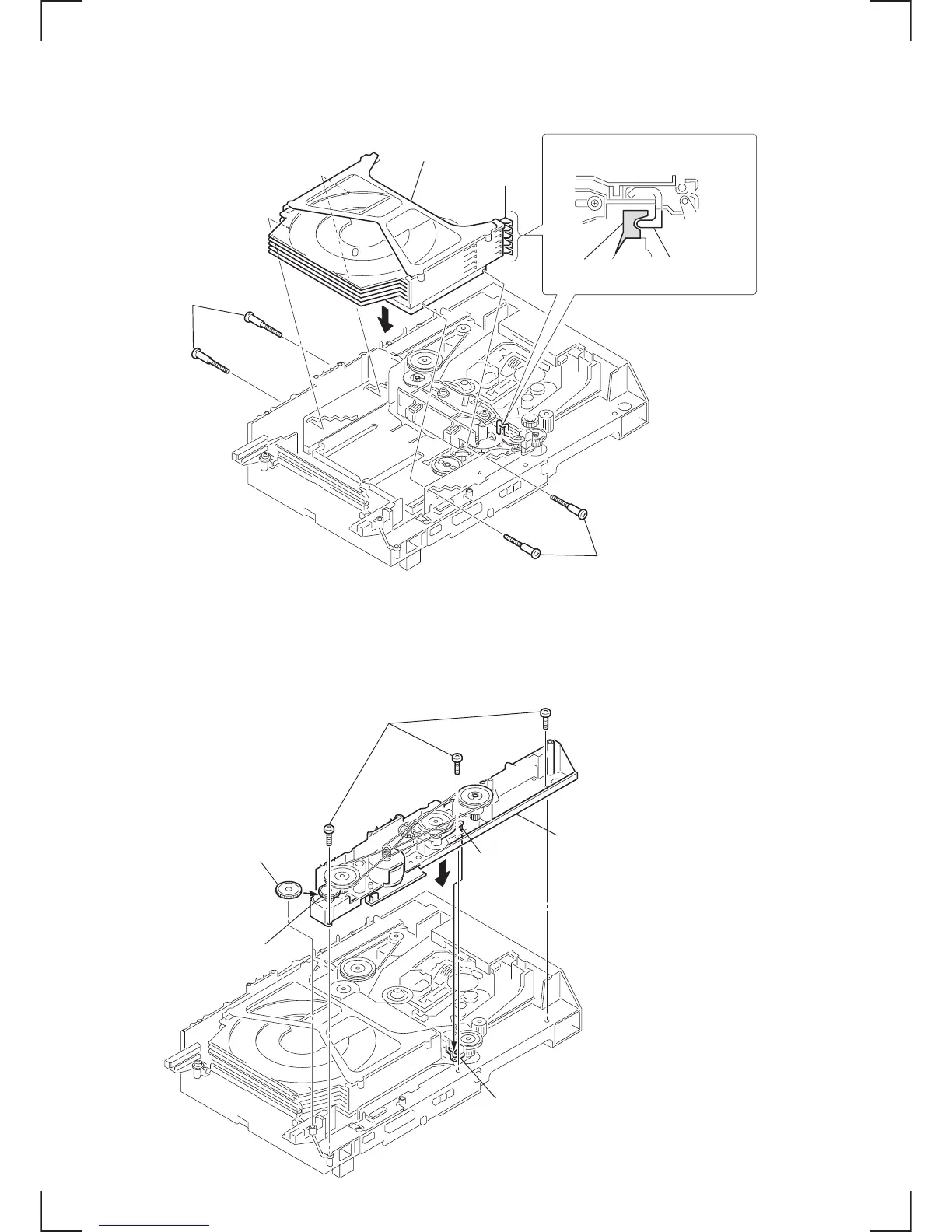

4-21. HOW TO ATTACH THE STOCKER
4-22. HOW TO ATTACH THE CHASSIS (MOLD B)
