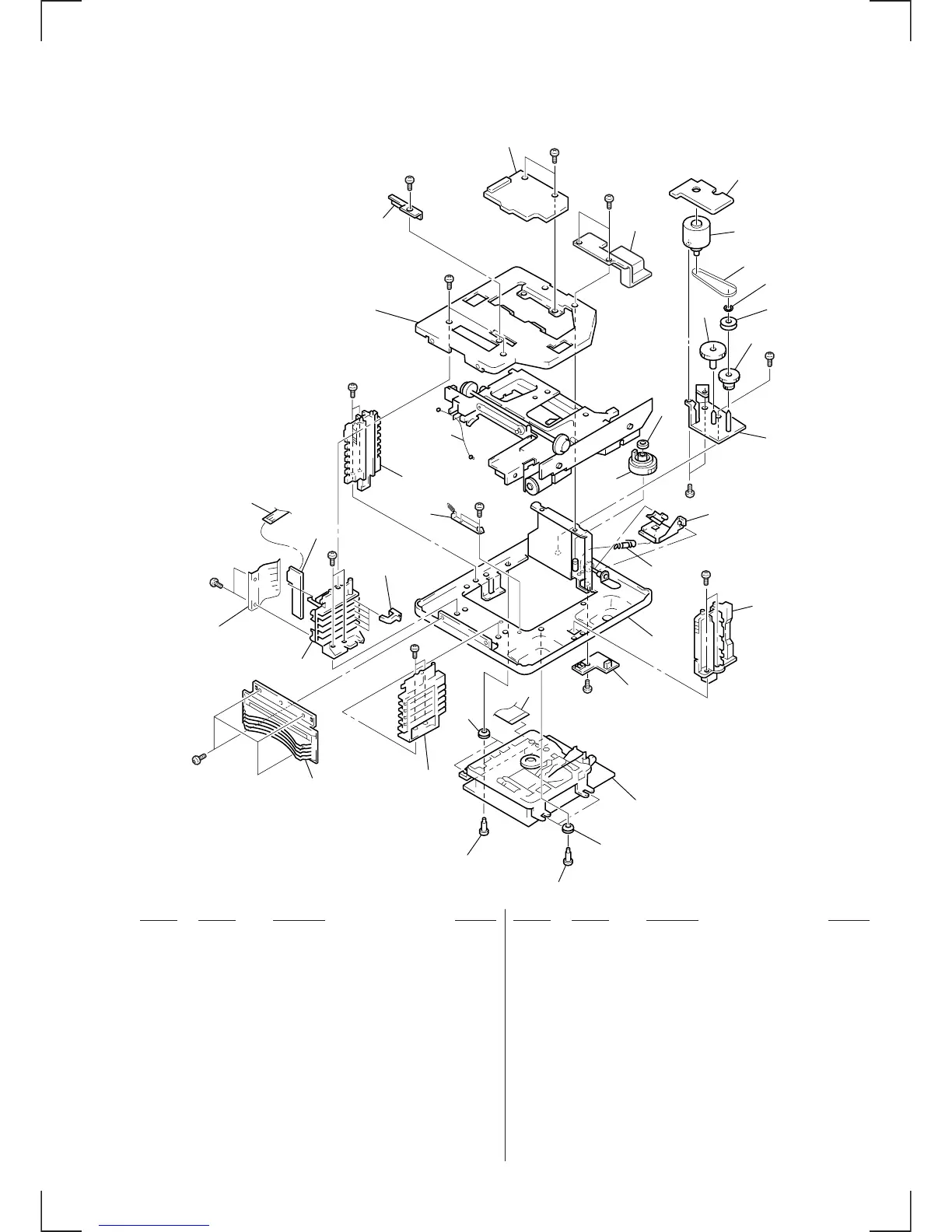

Sony HCD-MD555 - MD Mechanism Deck-1 (MDM-C1 E)

— 125 —
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
#9
not supplied
not supplied
#7
112
#9
#9
not supplied
111
126
#9
#9
101
108
109
110
107
106
127
#7
#9
#9
124
122
121
120
#9
#10
123
102
102
101
MBU-C1
104
103
125
#9
#9
115
119
117
116
115
114
#9
118
113
128
M905
101 4-987-327-01 INSULATOR
102 4-987-240-01 SCREW, STEP
103 4-986-932-01 HOLDER (R)
104 4-212-592-01 ESCUTCHEON (’98 FRONT)
106 4-986-930-01 HOLDER (L)
107 4-986-934-01 SPRING (LOCK), LEAF
108 4-213-115-01 LOCK (’98 NEW)
* 109 1-671-472-01 DISK SW BOARD
111 4-988-375-01 RACK (L)
* 112 1-671-468-01 MECH RELAY BOARD
* 113 1-671-470-01 HEAD RELAY BOARD
114 3-661-080-00 BELT, (A)
115 3-701-438-21 WASHER (E-2.3), NYLON
116 3-018-636-01 GEAR (PULLEY) (C)
117 3-018-203-01 GEAR (HEAD) (A)
118 3-018-204-01 GEAR (HEAD) (B)
119 X-3374-348-1 CHASSIS (HEAD GEAR) ASSY
120 4-987-242-01 GEAR (CAM)
* 121 4-987-241-01 LEVER (H)
122 4-996-395-02 SPRING (H), TENSION
123 X-4947-927-1 CHASSIS (BASE) ASSY
124 4-994-630-12 RACK (RN)
* 125 1-671-471-01 HEAD SW BOARD
126 X-4949-848-1 STAY (WIRE) ASSY
127 1-790-121-01 WIRE (FLAT TYPE) (21 CORE)
* 128 4-997-713-01 COVER (FFC)
M905 X-4949-160-1 MOTOR (HEAD) ASSY
8-3. MD MECHANISM DECK-1 (MDM-C1E)
