Sony HCD-VX777 - Disassembling Driver, Motor, CD Sensor, and Video Boards

10
HCD-VX777

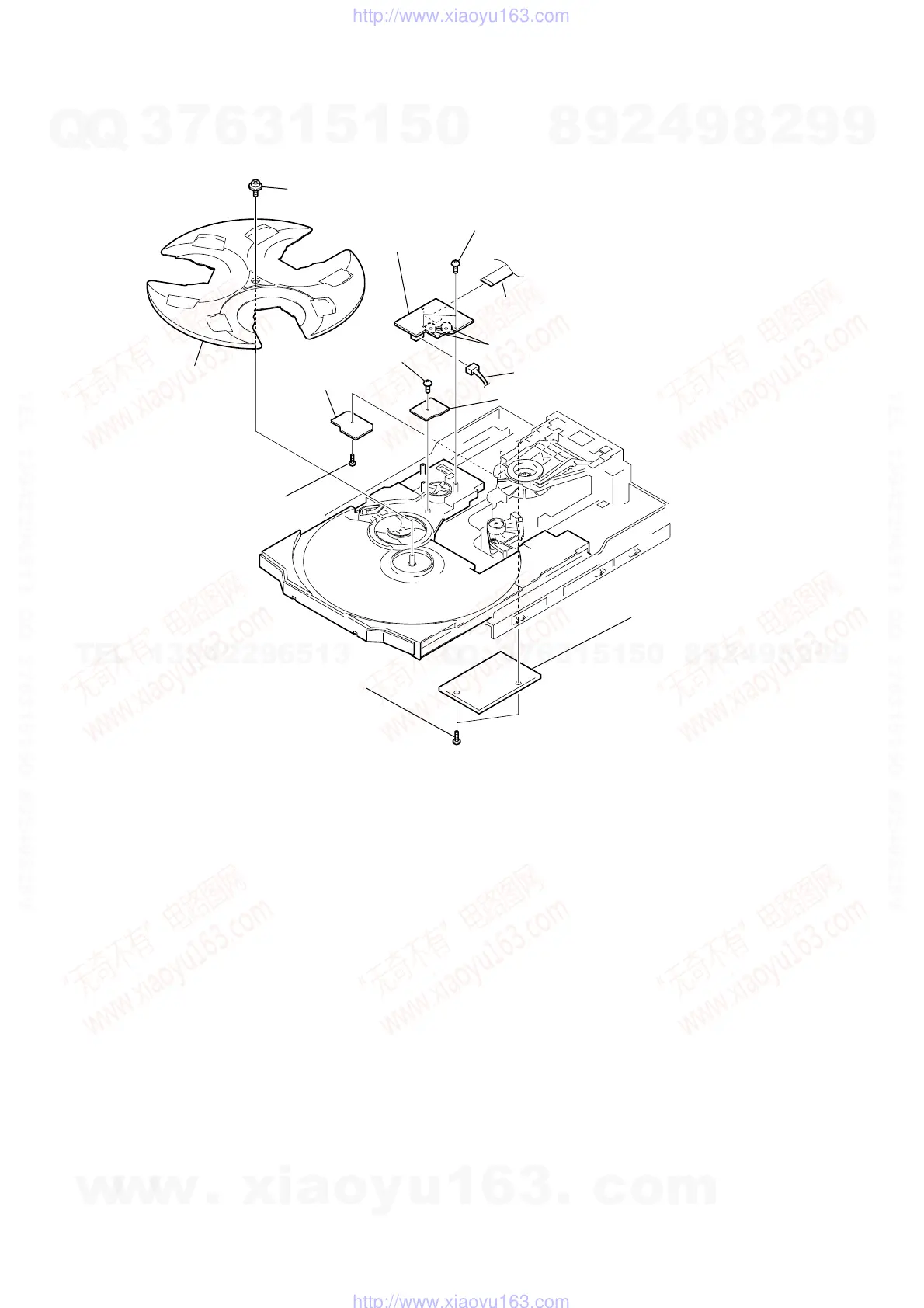

2-10. DRIVER BOARD, MOTOR BOARD, CD SENSOR BOARD AND VIDEO BOARD
2 VIDEO boar
d
1 two screws (+BVTP 2.6 × 8)
5 two screws (+BVTP 2.6 × 8)
0 screw (+PTPWH 2.6 × 8)
qa tray
3 screw (+BVTP 2.6 × 8)
qs screw (+BVTP 2.6 × 8)
8 flat type wire (CN721)
7 MOTOR board
qd SENSOR board
9 connector(CN722)
4 DRIVER board
6 Remove the two solderings of motor.
