Sony HCD-VX777 - Printed Wiring Board: BD Section

2525
HCD-VX777

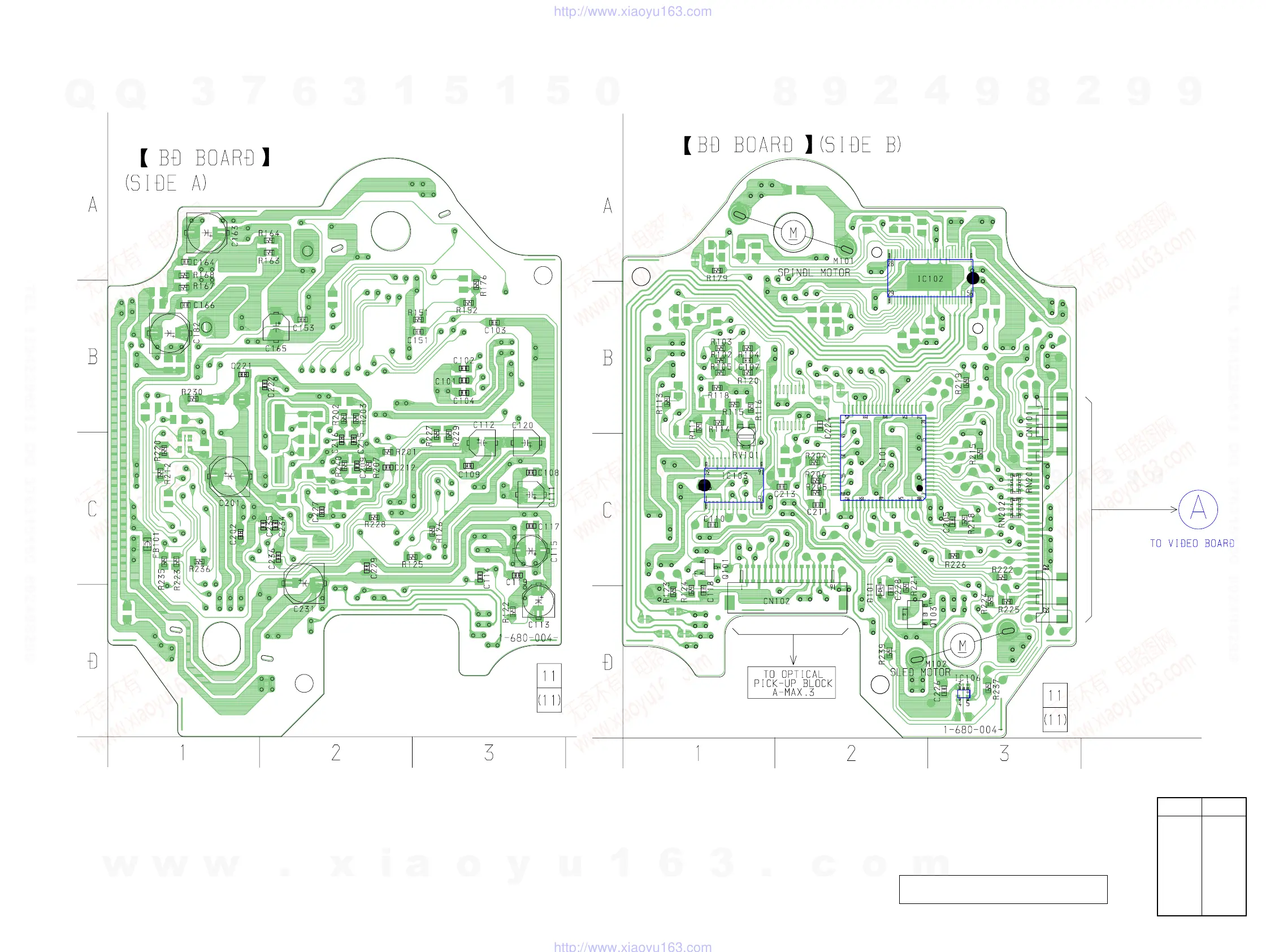

6-4. PRINTED WIRING BOARD – BD SECTION – • See page 19 for Circuit Boards Location.
There are a few cases that the part isn’t mounted
in model is printed on diagram.
(Page 26)
Ref. No. Location
D101 D-2
IC101 C-2
IC102 A-2
IC103 C-1
IC106 D-3
Q101 C-1
Q103 D-2
• Semiconductor
Location
