HCD-VX777
3434

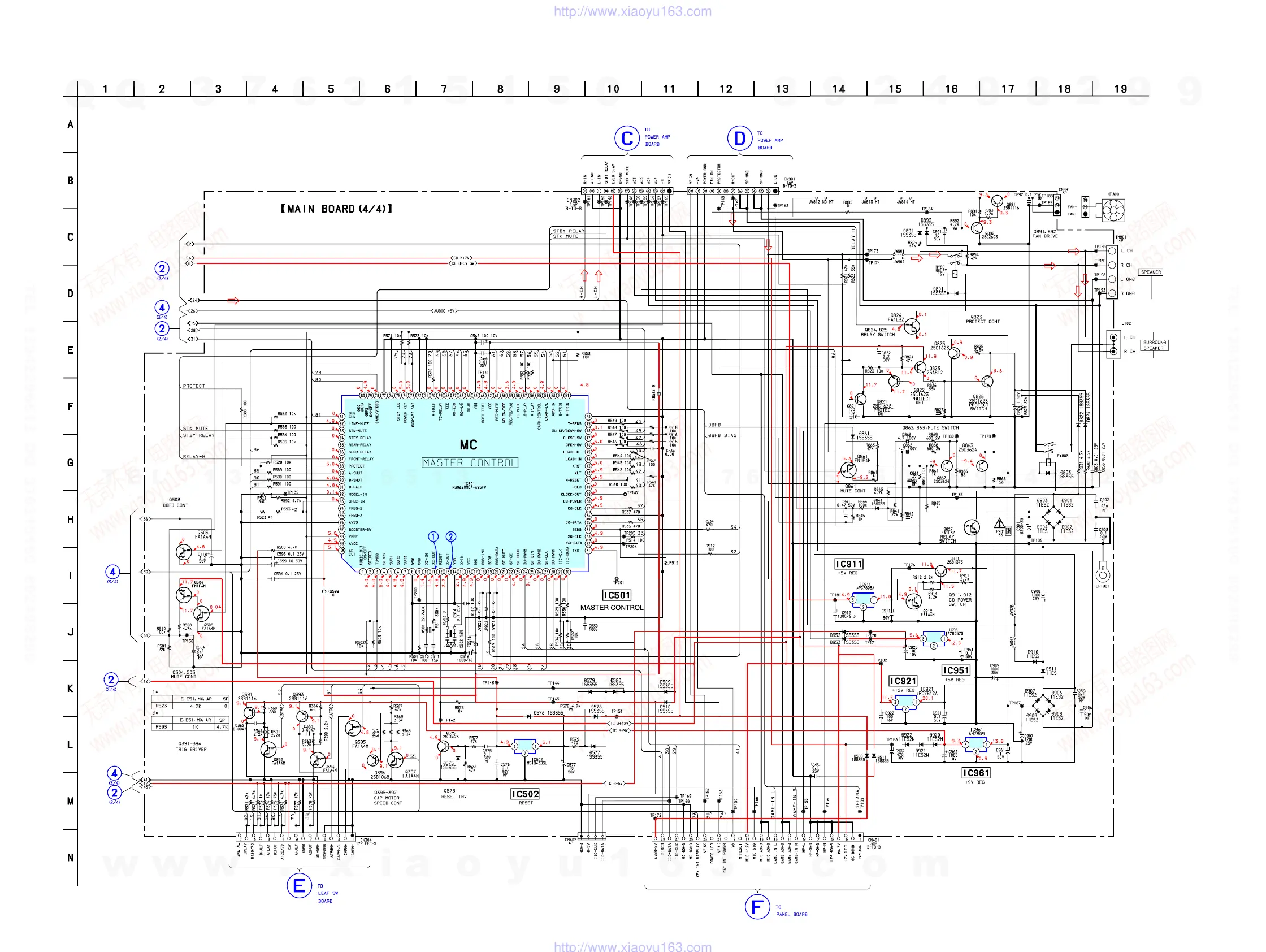

6-13. SCHEMATIC DIAGRAM – MAIN (4/4) SECTION – • See page 20 for Waveforms. • See page 49 for IC Pin Function.
