Sony HCD-VX777 - Printed Wiring Board: Panel Section

HCD-VX777
3838
M

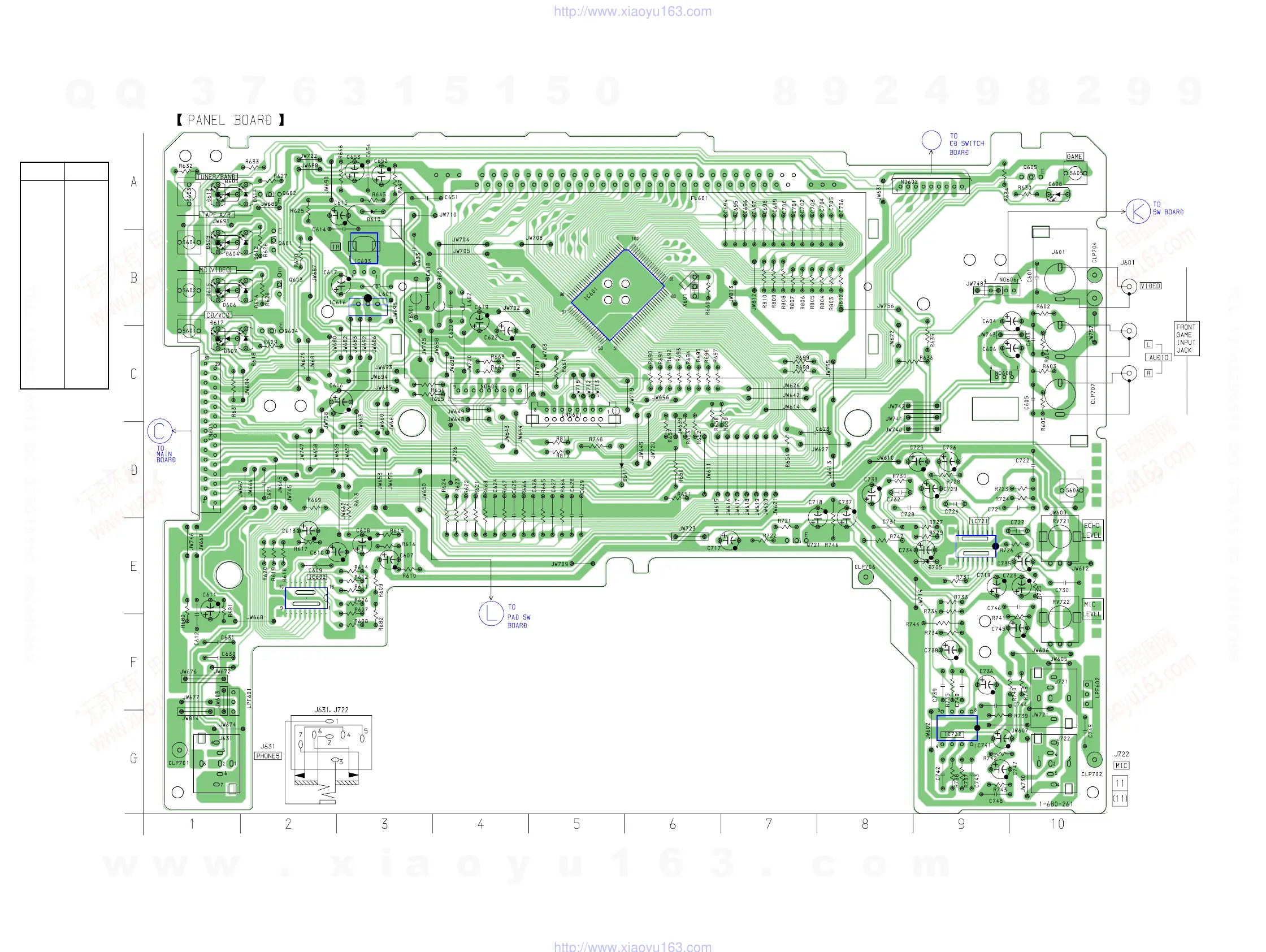

6-18. PRINTED WIRING BOARD – PANEL SECTION – • See page 19 for Circuit Boards Location.
Ref. No. Location
D604 B-1
D605 A-1
D606 B-1
D607 B-1
D608 A-10
D609 B-1
D610 A-3
D611 D-5
IC601 B-5
IC602 E-2
IC603 B-3
IC722 G-9
Q601 B-2
Q602 A-2
Q603 B-2
Q604 C-2
Q605 A-10
Q721 E-7
• Semiconductor
Location
(Page 30)
(Page 40)
(Page 40)
(Page 35)
