Sony HCD-VX777 - Printed Wiring Board: CD-SW;Pad Switch Section

HCD-VX777
4040
M

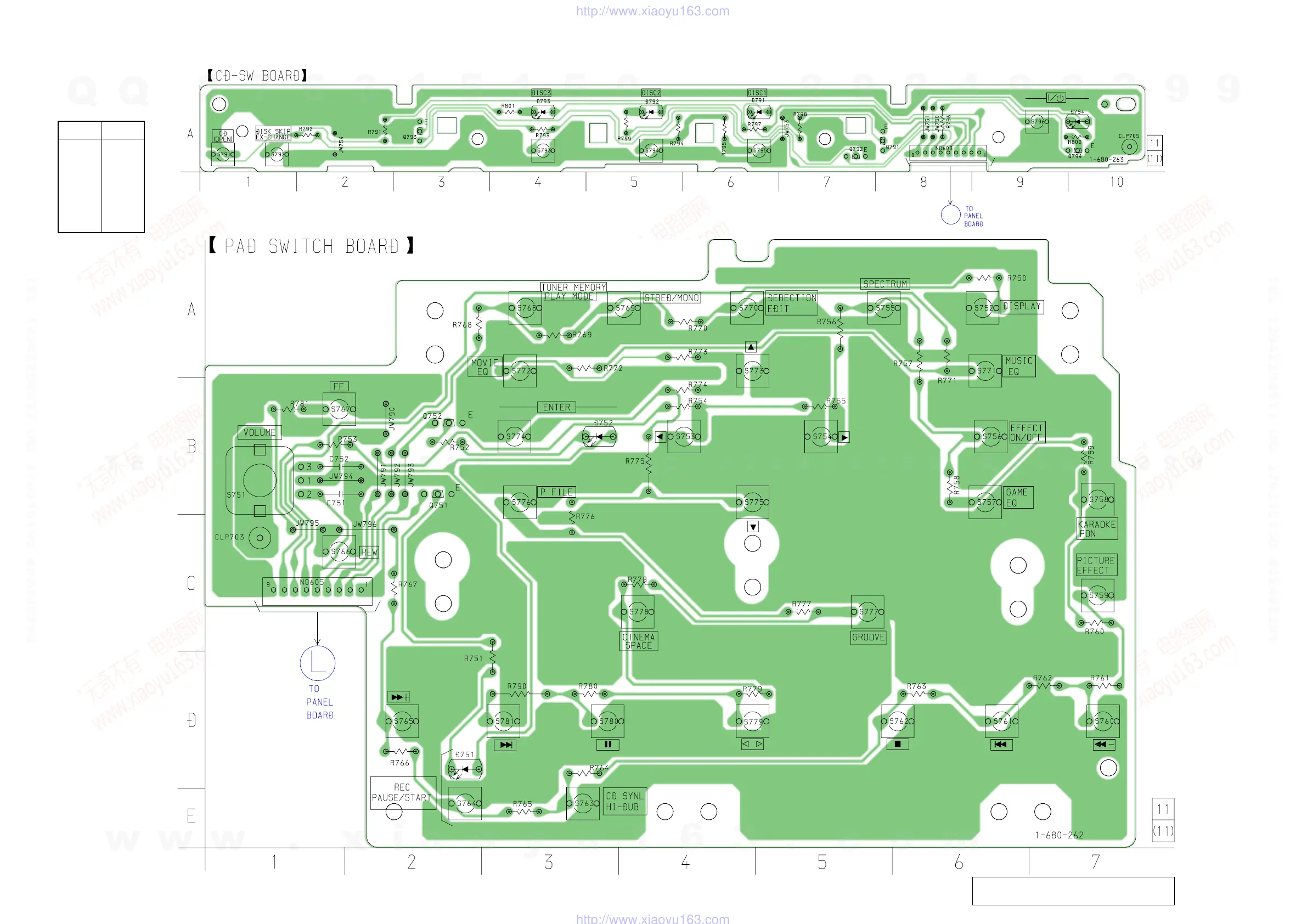

6-20. PRINTED WIRING BOARDS – CD-SW/PAD SWITCH SECTION – • See page 19 for Circuit Boards Location.
Ref. No. Location
D791 A-6
D792 A-5
D793 A-4
D794 A-10
Q791 A-8
Q792 A-7
Q793 A-3
Q794 A-10
• Semiconductor
Location
(Page 38)
(Page 38)
There are a few cases that the part isn’t mounted
in model is printed on diagram.
