63
HCD-VX777

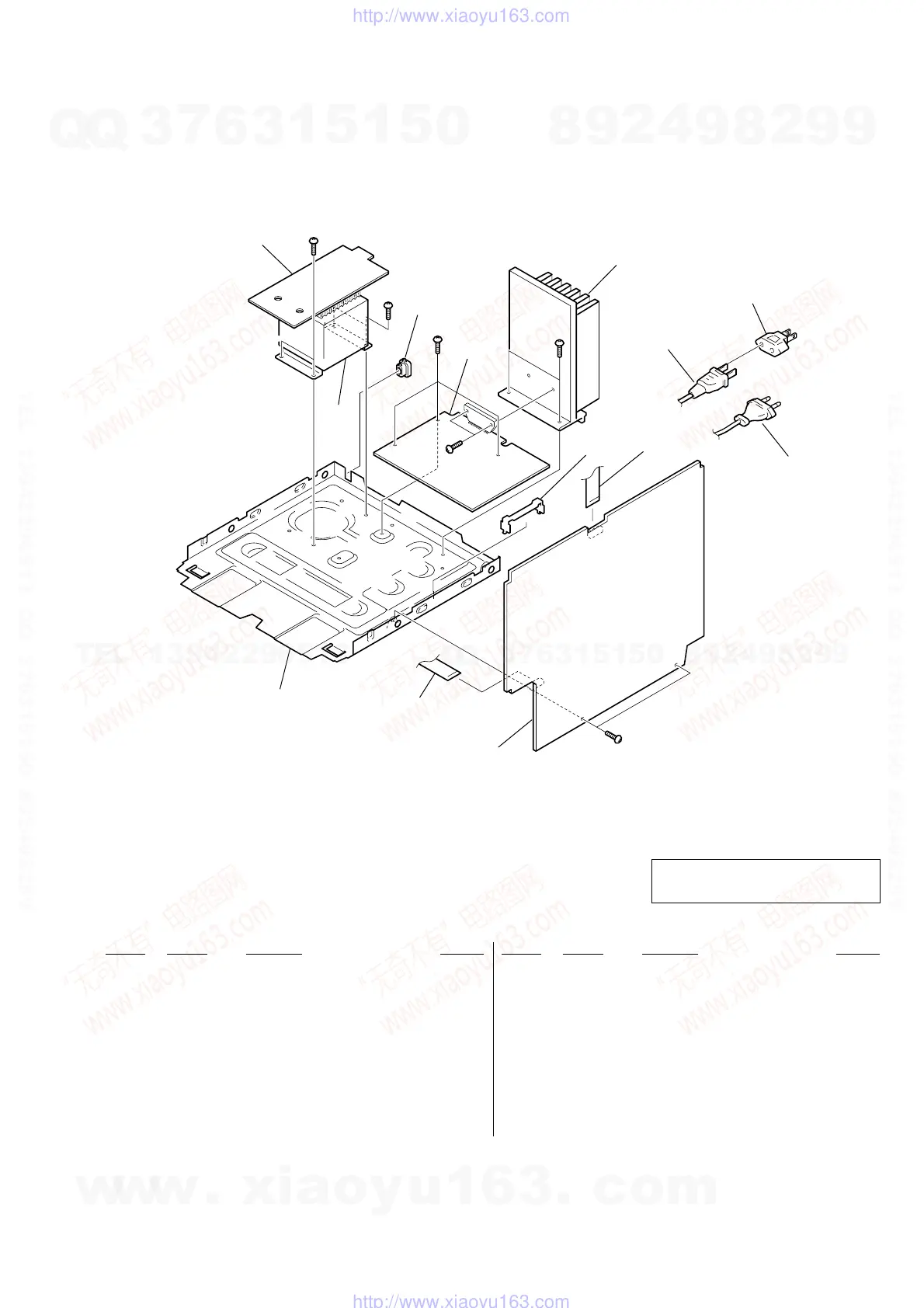

7-3. CHASSIS SECTION
not supplied
not supplied
T901
101
102
103
104
105
106
107
108
109
#4
#4
#5
#2
#2
#2
(E, EA, SP, IA)
108
(TH
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
101 A-2007-984-A MAIN MOUNTED PC BOARD (EA)
101 A-4476-138-A MAIN MOUNTED PC BOARD (E,SP)
101 A-4476-618-A MAIN MOUNTED PC BAORD (IA)
101 A-4726-198-A MAIN MOUNTED PC BAORD (TH)
102 1-773-045-11 WIRE (FLAT TYPE) (17 CORE)
* 103 4-988-533-01 HOLDER, PWB
104 1-690-589-31 WIRE (FLAT TYPE)(13 CORE)
105 1-680-265-11 MAIN TRANS BOARD
106 3-703-571-11 BUSHING (S) (4516), CORD (E,TH)
* 106 3-703-244-00 BUSHING (2104), CORD (EA,SP)
106 4-966-266-01 BUSHING (S)(FBS002), CORD (IA)
107 A-4475-766-A POWER MOUNTED PC BOARD (E,EA,SP,IA)
107 A-4726-195-A POWER MOUNTED PC BOARD (TH)
0108 1-777-071-51 CORD, POWER (E,EA,SP,IA)
0108 1-791-901-11 CORD, POWER (TH)
0109 1-569-008-21 ADAPTOR, CONVERSION
0T901 1-435-861-11 TRANSFORMER, POWER (TH)
0T901 1-435-866-11 TRANSFORMER, POWER (E,EA,SP,IA)
