Sony HCD-VX777 - Tape Mechanism Deck; CD SW Board, PANEL Board, Pad Switch Board

7
HCD-VX777

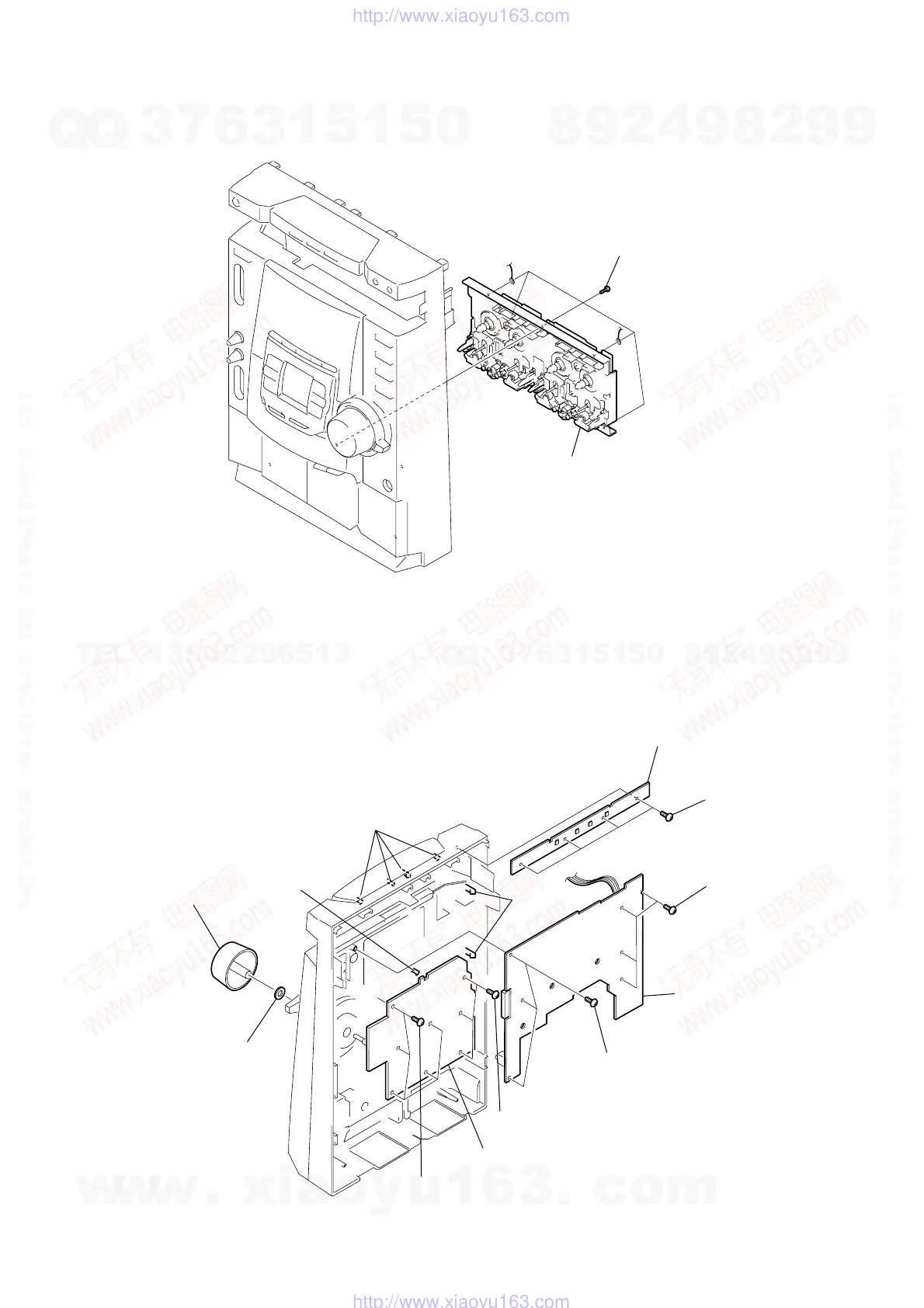

2-4. TAPE MECHANISM DECK
2-5. CD SW BOARD, PANEL BOARD, PAD SWITCH BOARD
2 Tape mechanism deck
1 five screws (+BVTP 2.6 × 8)
2 fore claws
1 four screws
(+BVTP 2.6
× 8)
4 four screws
(+BVTP 2.6
× 8)
5 three screws
(+BVTP 2.6
× 8)
0 three screws
(+BVTP 2.6
× 8)
qa five screws
(+BVTP 2.6
× 8)
qd PAD SWITCH board
7 PANEL board
6 two claws
qs claw
3 CD SW board
8 knob vol
9 nut
