Sony HCD-VX777 - Printed Wiring Board: Main Section

HCD-VX777
3030
REC LEVEL (R)
(A)
REC LEVEL (L)
(A)
RV354
RV304
REC LEVEL (R)
(B)
RV351
REC LEVEL (L)
(B)
RV301
PB LEVEL (L)
(A)
RV302
PB LEVEL (L)
(B)
RV303
FM TUNED LEVEL
RV11
NULL
T11

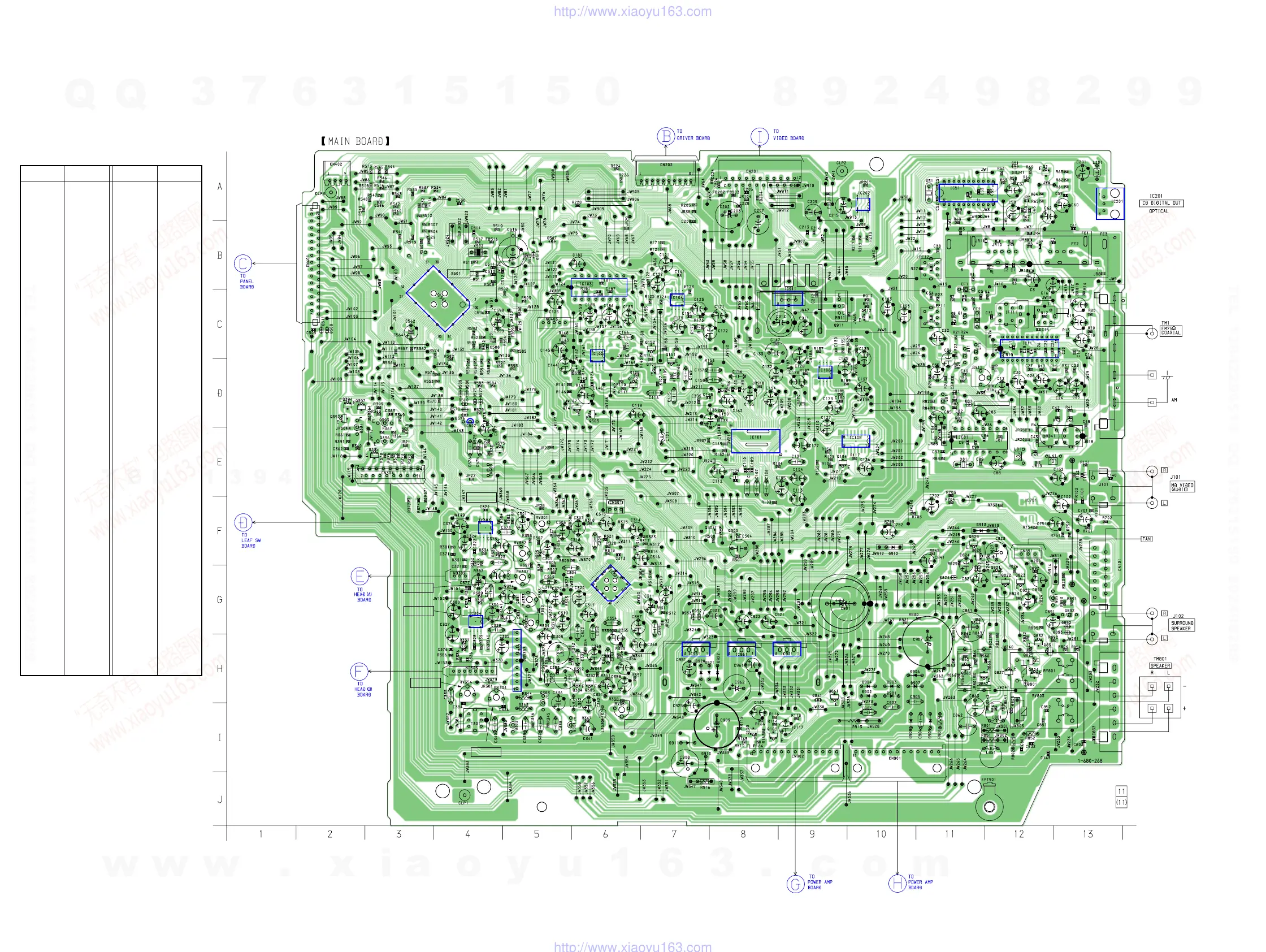

6-9. PRINTED WIRING BOARD – MAIN SECTION – • See page 19 for Circuit Boards Location.
Ref. No. Location
• Semiconductor Location
D51 A-12
D508 C-2
D509 D-4
D510 D-4
D511 C-2
D575 E-4
D576 D-4
D577 D-4
D578 D-4
D579 D-4
D580 D-4
D801 H-12
D803 H-12
D822 G-11
D824 G-11
D841 H-12
D861 H-9
D892 G-13
D901 H-10
D902 H-10
D903 H-10
D904 H-10
D906 H-11
D907 H-11
D908 I-10
D909 I-11
D910 I-7
D911 I-7
D920 H-7
D921 H-7
D922 H-8
D952 G-7
D953 G-7
IC11 C-12
IC51 A-11
IC101 E-8
IC102 C-6
IC103 B-6
IC104 C-7
IC105 E-10
IC106 D-9
IC201 A-13
IC202 A-10
IC301 G-5
IC302 H-5
IC303 F-4
IC304 G-4
Ref. No. Location
IC501 C-4
IC502 D-4
IC911 C-9
IC921 H-9
IC951 H-7
IC961 H-8
Q1 C-11
Q2 A-12
Q11 C-11
Q12 C-11
Q101 D-7
Q102 D-6
Q103 I-8
Q141 D-6
Q151 C-7
Q152 C-7
Q153 I-8
Q301 I-5
Q302 I-5
Q303 H-5
Q304 H-6
Q305 H-6
Q391 D-2
Q392 D-2
Q393 D-3
Q394 D-2
Q395 E-3
Q396 E-3
Q397 D-2
Q503 D-6
Q504 F-8
Q505 F-8
Q575 E-4
Q821 G-12
Q822 G-12
Q823 G-12
Q824 H-12
Q825 H-12
Q827 H-12
Q828 F-11
Q861 H-9
Q862 H-11
Q863 H-11
Q891 G-12
Q892 G-13
Q911 C-9
Q912 C-10
(Page 44)
(Page 26)
(Page 38)
(Page 42)
(Page 42)
(Page 42)
(Page 36) (Page 36)
