Sony HCD-VX777 - MAIN Trans Board; MAIN Board, Power Board

8
HCD-VX777

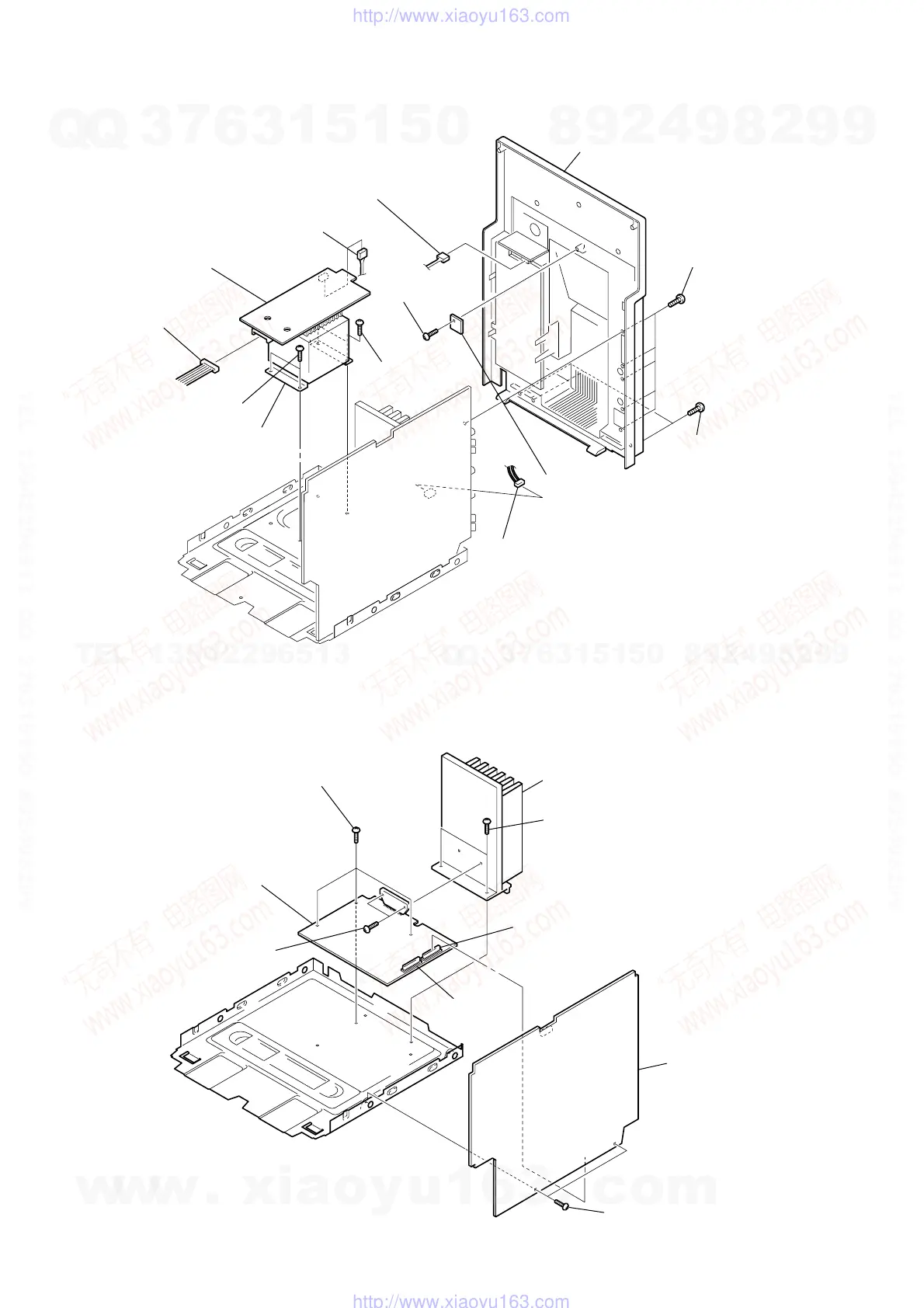

2-6. MAIN TRANS BOARD
2-7. MAIN BOARD, POWER BOARD
qa two screws
(+BVTT 4
× 8)
8 five screws
(+BVTP 3
× 10)
7 three screws
(+BVTP 3
× 10)
9 panel, back
0 two screws (+BVTT 4 × 8)
qd MAIN TRANS board
qs trans
5 connector (CN973)
2 SENSOR board
6 connector (CN977)
3 connector (CN891)
4 connector (CN403)
1 screw
(+BVTP 3
× 8)
4 three screws (+BVTP 3 × 8)
6 two screws (+BVTP 3 × 8)
7 heat sink
3 two screws (+BVTP 3 × 16)
1 two screws (+BVTP 3 × 8)
2 MAIN board
connector(CN502)
connector
(CN503)
5POWER board
