HCD-VX777
7-1. MAIN SECTION
SECTION 7

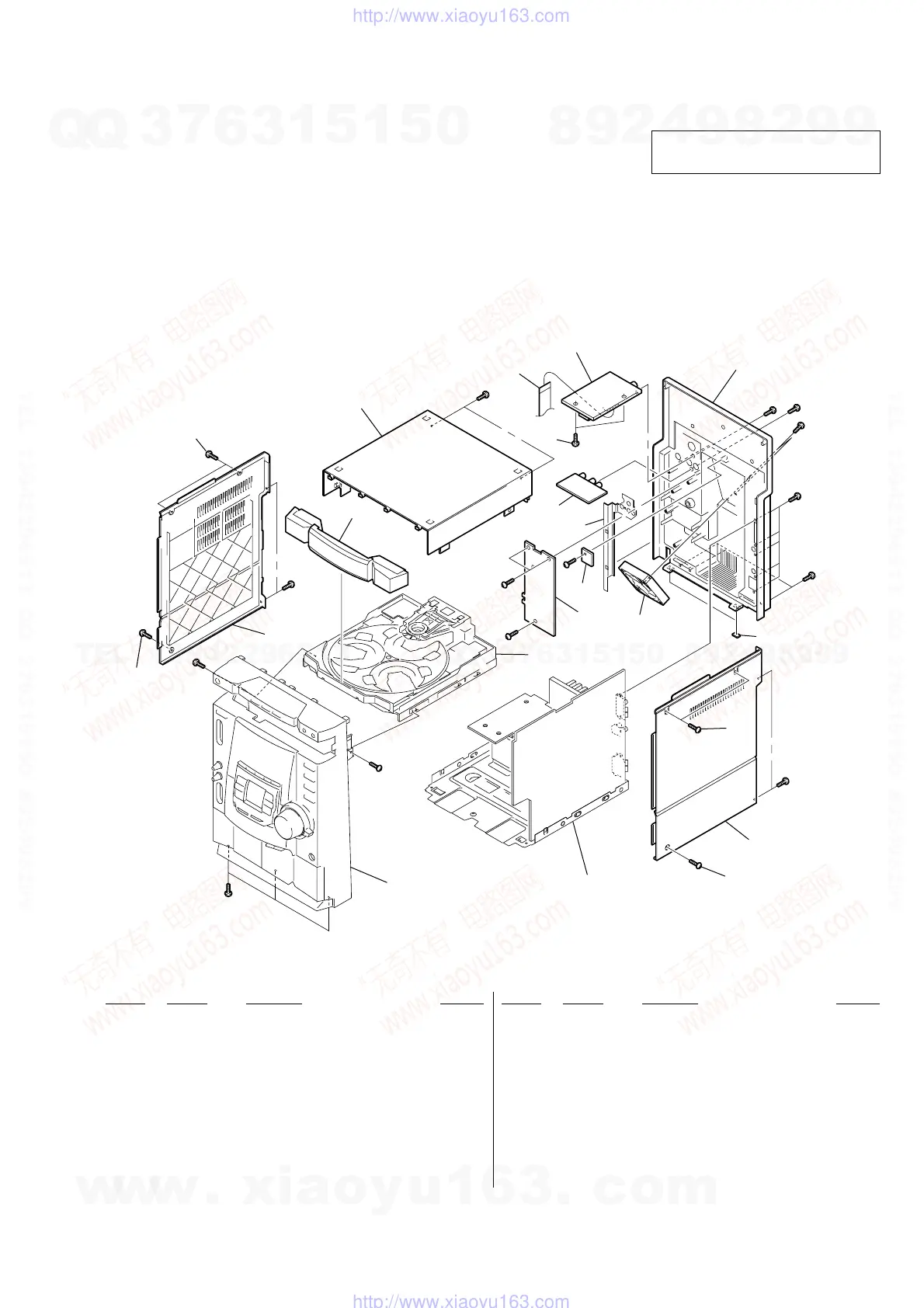

EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
EA : Saudi Arabia model
IA : Indonesian model
SP : Singapore model
TH : Thai model
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
1
1
1
1
2
3
4
5
6
7
8
14
9
10
11
12
13
Front panel section
Chassis section
CD mechanism deck
M961
#3
#3
#3
#3
#3
#
#3
#
#3
#3
#2
#3
#3
#3
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
1 3-363-099-41 SCREW (CASE 3 TP2)
2 4-225-038-21 SIDE PANEL (L)
3 4-231-563-41 LOADING PANEL
4 4-224-550-01 CASE (TOP)(IA)
4 4-224-550-41 CASE (TOP)(E,EA,SP,TH)
5 1-757-421-11 WIRE (FLAT TYPE)(25 CORE)
6 4-951-620-01 SCREW (2.6X8), +BVTP
7 A-4725-689-A VIDEO MOUNTED PC BOARD (E,EA,SP,IA)
7 A-4725-693-A VIDEO MOUNTED PC BOARD (TH)
8 1-680-892-11 SWITCH BOARD
9 4-232-028-11 BACK PANEL (E,EA,SP,IA)
9 4-232-028-51 BACK PANEL (TH)
10 4-225-252-01 CUSHION (FOOT)
11 4-225-039-72 SIDE PANEL (R)
12 A-4475-786-A SUB TRANS MOUNTED PC BOARD (E,EA,SP,IA)
12 A-4476-633-A SUB TRANS MOUNTED PC BOARD (TH)
13 1-681-143-11 SENSOR BOARD
14 4-233-148-01 GROUND PLATE
M961 1-763-072-11 FAN, D1C
