HCD-VX777

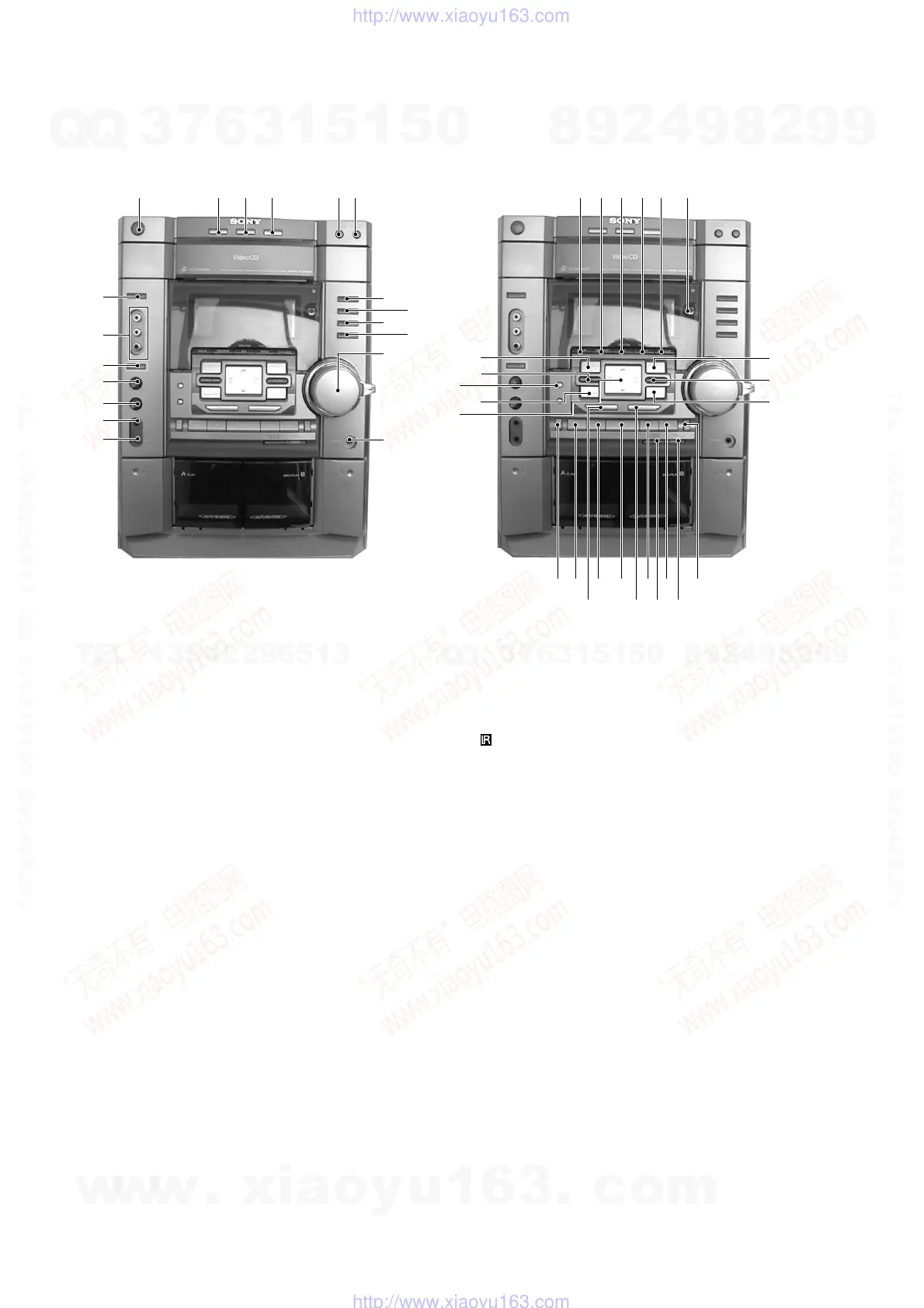

Location of Parts and Controls
1 @/1 (POWER) button and indicator
2 DISC 1 button and indicator
3 DISC 2 button and indicator
4 DISC 3 button and indicator
5 DISC SKIP EX-CHANGE button
6 CD (OPEN) button
7 CD button and indicator
8 TUNER/BAND button and indicator
9 TAPE A/B button and indicator
q; MD (VIDEO) button and indicator
qa VOLUME knob
qs PHONES jack
qd MIC 2 jack
qf MIC 1 jack
qg MIC LEVEL knob
qh ECHO level knob
qj SURROUND speaker indicator
qk GAME INPUT (VIDEO, AUDIO L/R) jack
ql GAME button and indicator
w; DISPLAY button
wa SPECTRUM button
ws EDIT (DIRECTION) button
wd REPEAT (FM MODE/DOLBY NR) button
SECTION 1
GENERAL
Front Panel
wf PLAY MODE (TUNER MEMORY) button
wg Remote sensor
wh MOVIE EQ button
wj ENTER button and indicator
wk P FILE button
wl M/+ button
e; REC PAUSE/START button and indicator
ea > button
es CD SYNC HI-DUB button
ed X button
ef SURROUND button
eg bB button
eh x button
ej GROOVE button
ek . button
el m/– button
r; b/v/B/V button
ra GAME EQ button
rs KARAOKE PON button
rd EFFECT ON/OFF button
rf MUSIC EQ button
