66
HCD-VX777

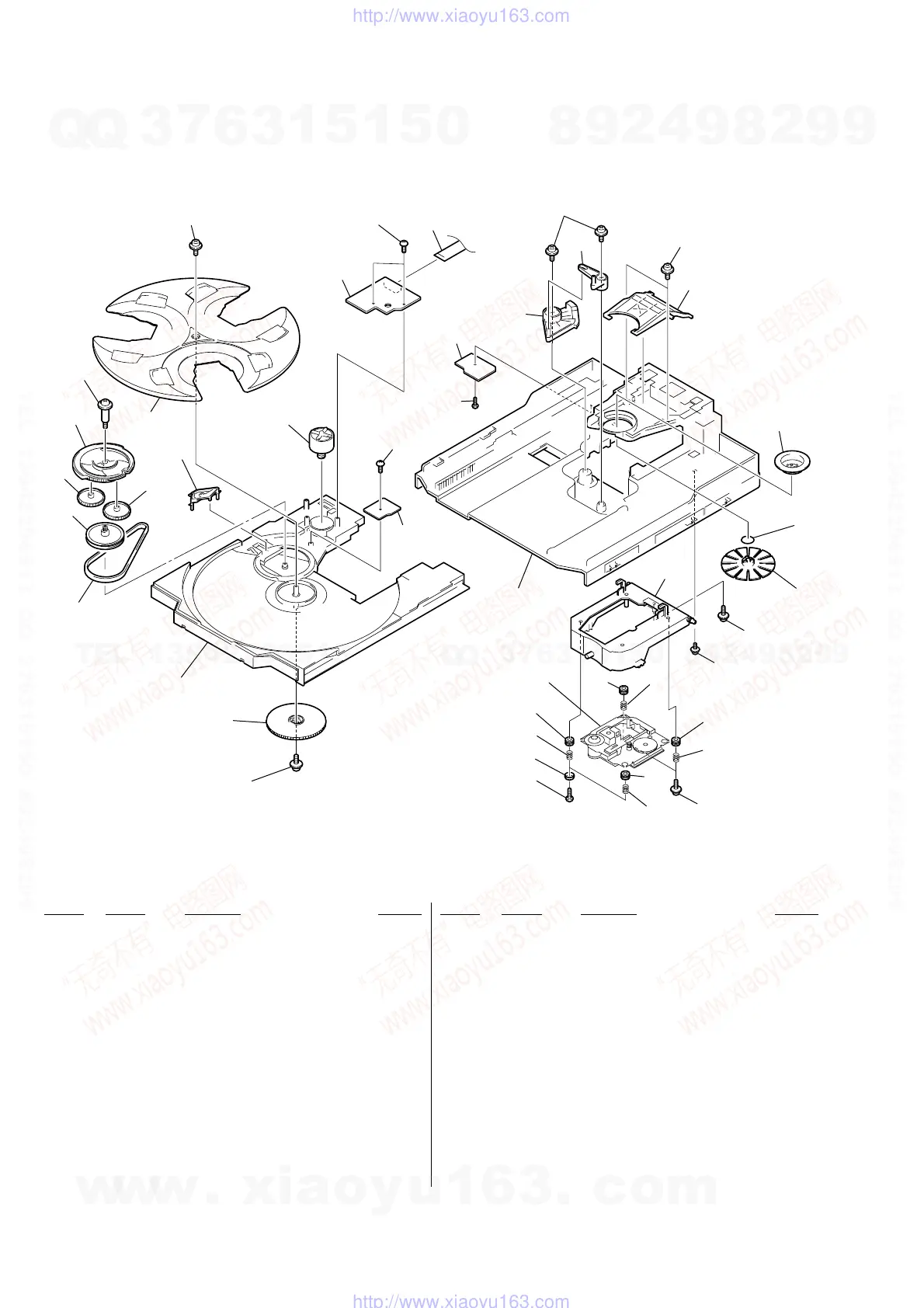

7-6. CD MECHANISM DECK SECTION
(CDM58E-30BD61A)
not supplied
BU-30BD61
251
252
253
254
273
269
272
275
274
274
M721
255
256
257
259
258
258
258
260
261
262
263
251
264
271
265
267
266
271
268
271
270
270
276
276
276
270
270
258
277
276
278
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
251 4-933-134-11 SCREW (+PTPWH M2.6X8)
252 4-221-679-01 CAM (RELAY)
253 4-231-452-01 TABLE (NEW)
254 4-221-686-01 LEVER (CHANGE)
255 4-221-676-02 TRAY (E,EA,SP,TH)
256 4-933-134-51 SCREW (+PTPWH 2.6X8)
257 1-675-910-14 MOTOR BOARD
258 4-951-620-01 SCREW (2.6X8), +BVTP
259 1-791-983-12 WIRE (FLAT TYPE) (8 CORE)
260 1-675-911-14 SENSOR BOARD
261 1-675-912-14 DRIVER BOARD
262 X-4952-608-3 CAM (U/D) ASSY
263 4-221-681-01 LEVER (EX)
264 4-221-682-01 LEVER (LIFTER)
265 4-231-513-01 PULLEY (B) (BU-30), CHUCKING
266 X-4953-306-1 HOLDER (BU) (BU-30) ASSY
267 X-4953-307-1 PULLEY (A) ASSY, CHUCKING
268 4-227-899-01 SCREW (DIA. 12), FROATING
269 4-222-097-01 SCREW, STEP
270 4-227-045-11 SPRING (INSULATOR), COIL
271 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
272 4-222-095-01 BELT
273 4-221-678-06 CAM (CONTROL)
274 4-221-683-01 GEAR (U)
275 4-221-685-01 PULLEY (S)
276 4-231-451-01 INSULATOR (BU-30)
277 4-231-151-01 STOPPER (BU)
278 4-228-414-01 BRACKET (YOKE)
M721 A-4672-826-A MOTOR ASSY
