Sony HCD-VX777 - Loading PANEL; Front PANEL Section

6
HCD-VX777

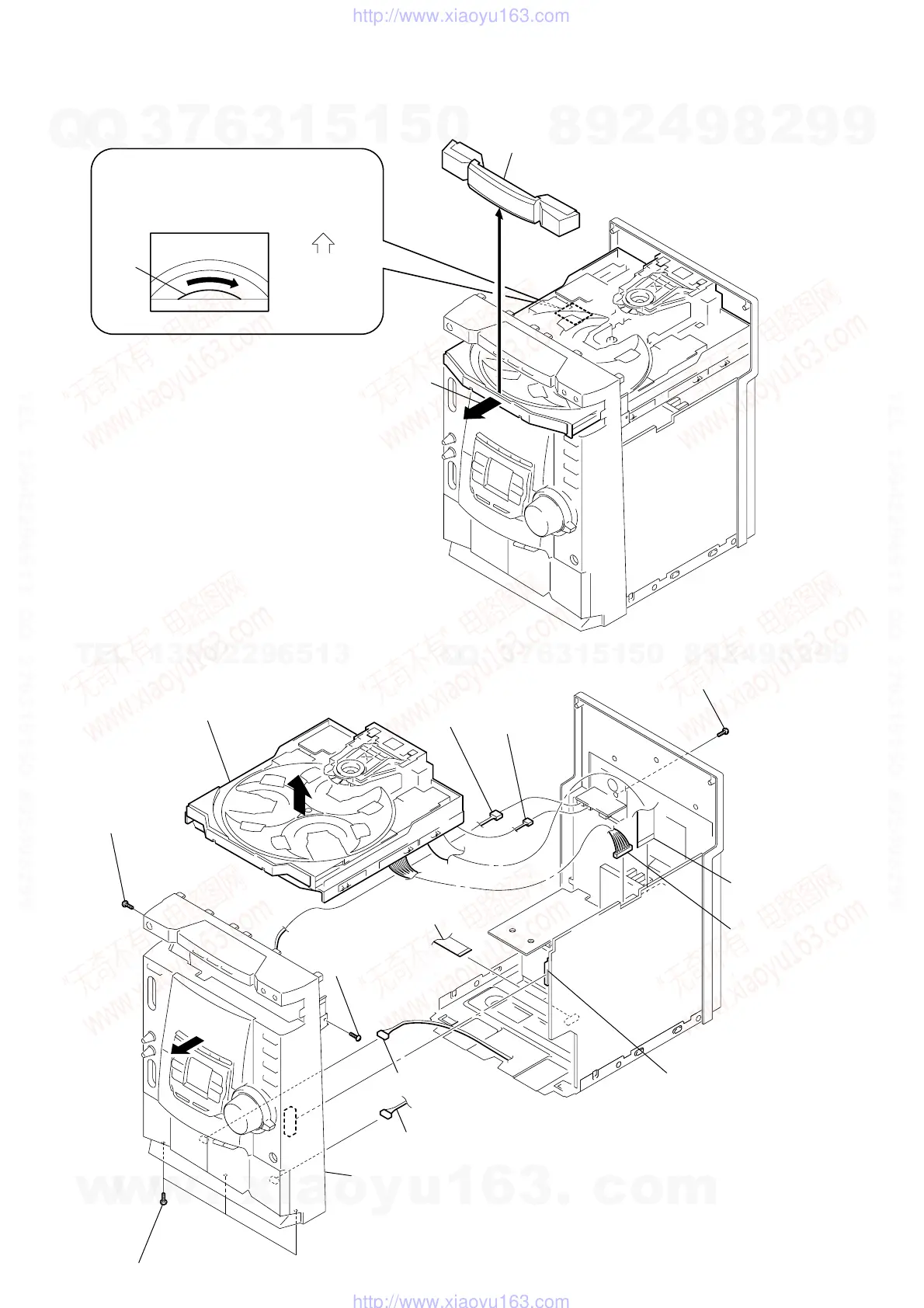

2-2. LOADING PANEL
2-3. FRONT PANEL SECTION
2 Pull-out the disc tray.
4 Pull-out the disc tray.
1 Turn the pulley to the direction of arrow.
pulley
Front panel side
CD mechanism deck (CDM58)
3
8
3
connector (CN2)
4 connector
(CN607)
0 connector
(CN781)
qa flat type wire
(CN201)
qs connector
(CN202)
2 connector (CN1)
connector
(CN401)
1 flat type wire (CN304)
qg CD mechanism deck (CDM58)
7 three screws (+BVTT 3 × 8)
9 front panel section
5 screw (+BVTP 3 × 10)
qd screw (+BVTP 3 × 10)
6 screw
(+BVTP 3
× 10)
qf
