Sony HT-CT500 - Connecting Components; Step 3 a: HDMI Connections

26
GB
Sony recommends that you connect components to the system using HDMI cables.
With HDMI, you can easily enjoy both high quality sound and high quality images.
For details on the Control for HDMI function, see “What is “BRAVIA” Sync?” (page 59).

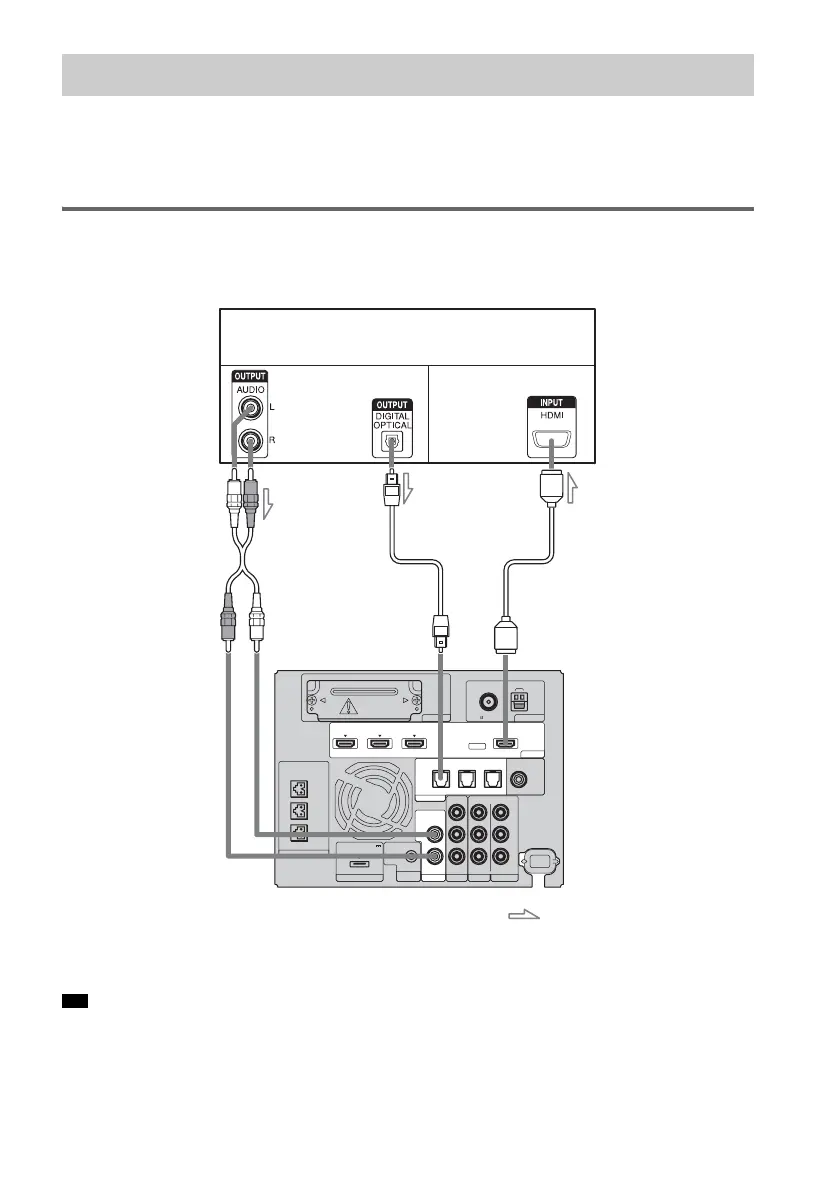

Connecting a TV monitor, projector, etc.
Connect the audio output of the TV to the audio input of the system using a digital optical cord or an
audio cord in order to listen to the TV sound from the system.
• For details on connecting the TV without an HDMI jack, see “Step 3b: Connecting the components without HDMI
jacks” (page 29).
Step 3a: Connecting the components with HDMI jacks
Tip
EZW-T100 ANTENNA
HDMI
SPEAKER
TV OUTSAT/CATV INDVD IN
CENTER
ONLY FOR SS-CT500
ASSIGNABLE
AUDI O IN
L
R
AUDI O IN
VIDEO IN COMPONENT VIDEO IN
R
L
Y
R
L
BD IN
AM
FM
75 COAXIAL
DMPORT TV
REMOTE
CTRL
VIDEO 1
DC 5V
0.7A MAX
ONLY FOR
SS-CT500
VIDEO 2 VIDEO 3
PB/
C
B
PR/
C
R
OPTICAL
TV IN
COAXIAL
VIDEO 2 IN VIDEO 3 IN VIDEO 3 IN
DIGITAL
TV monitor, projector, etc.
A Audio cord (not supplied)
B Digital optical cord (supplied)
C HDMI cable (not supplied)
BC
Audio signal
: Signal flow
A
Rear of the
subwoofer
Audio/video
signal
or
