The subwoofer is equipped with a function for converting video signals.
Video signals and component video signals can be output as HDMI video signals (output from the
HDMI TV OUT jack only).
For conversion of images, see “Video input/output conversion table” (page 35).

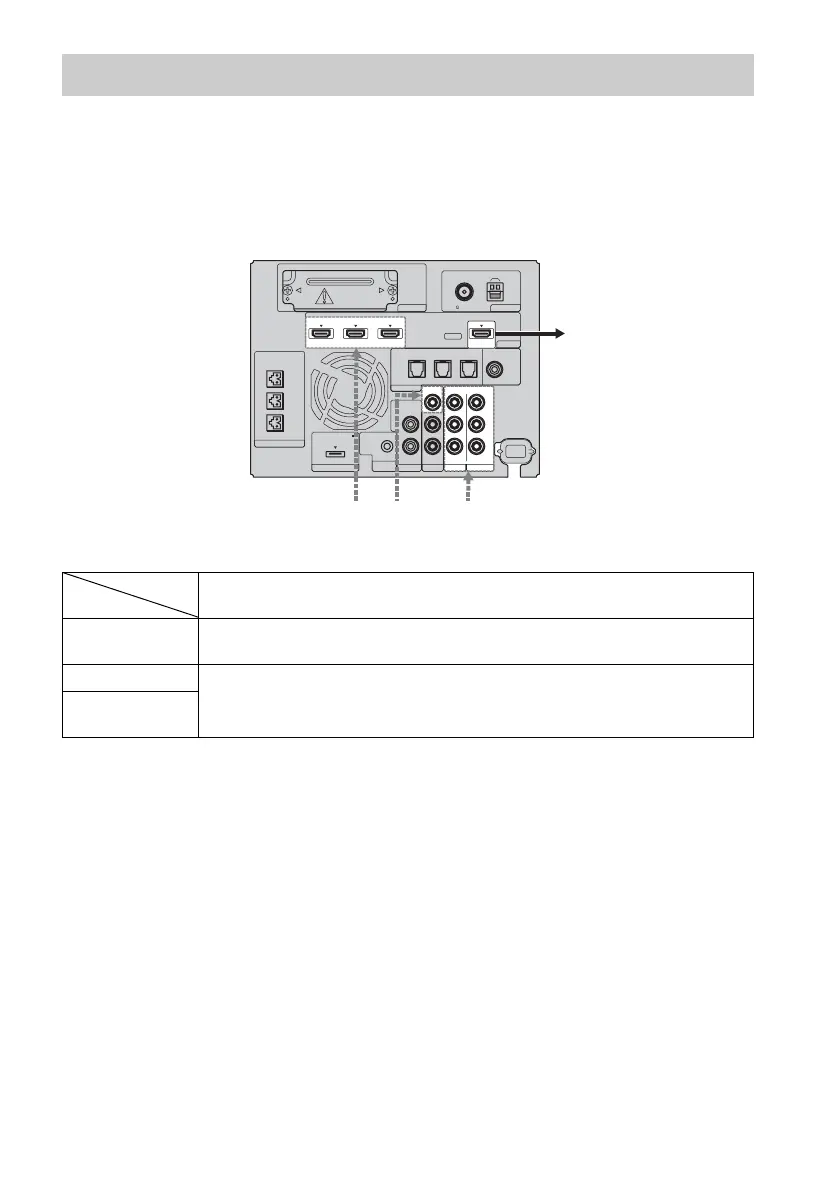

Video input/output conversion table of the subwoofer
Notes on converting video signals
• When video signals from a VCR, etc., are converted by the subwoofer and then output to your TV,
depending on the status of the video signal output, the image on the TV screen may appear distorted
horizontally, or no image may be output.
• If your VCR has an image improvement circuit, such as TBC, the images may be distorted or may
not be output. In this case, set the image improvement circuit function to off.
Function for conversion of video signals
HDMI TV OUT
HDMI IN A The same type of signal as that of the input signal is output. Video signals are not up-
converted.
VIDEO IN B
Video signals are up-converted and output through this system.
