Control Panel Configuration (ICP-X7000)
The ICP-X7000 Integrated Control Panel is a control
panel that comprises multiple modules.
The control blocks and supported modules of the control
pan
el are described below.
a) There are three types of cross-point modules: 36-button (MKS-X7017),
28-button (MKS-X7018), and 20-button (MKS-X7019).
They can be configured as a cross-point control block or AUX bus
c
ontrol block in the Home > Setup > Panel > Config > M/E / AUX Assign
menu (19104.11).

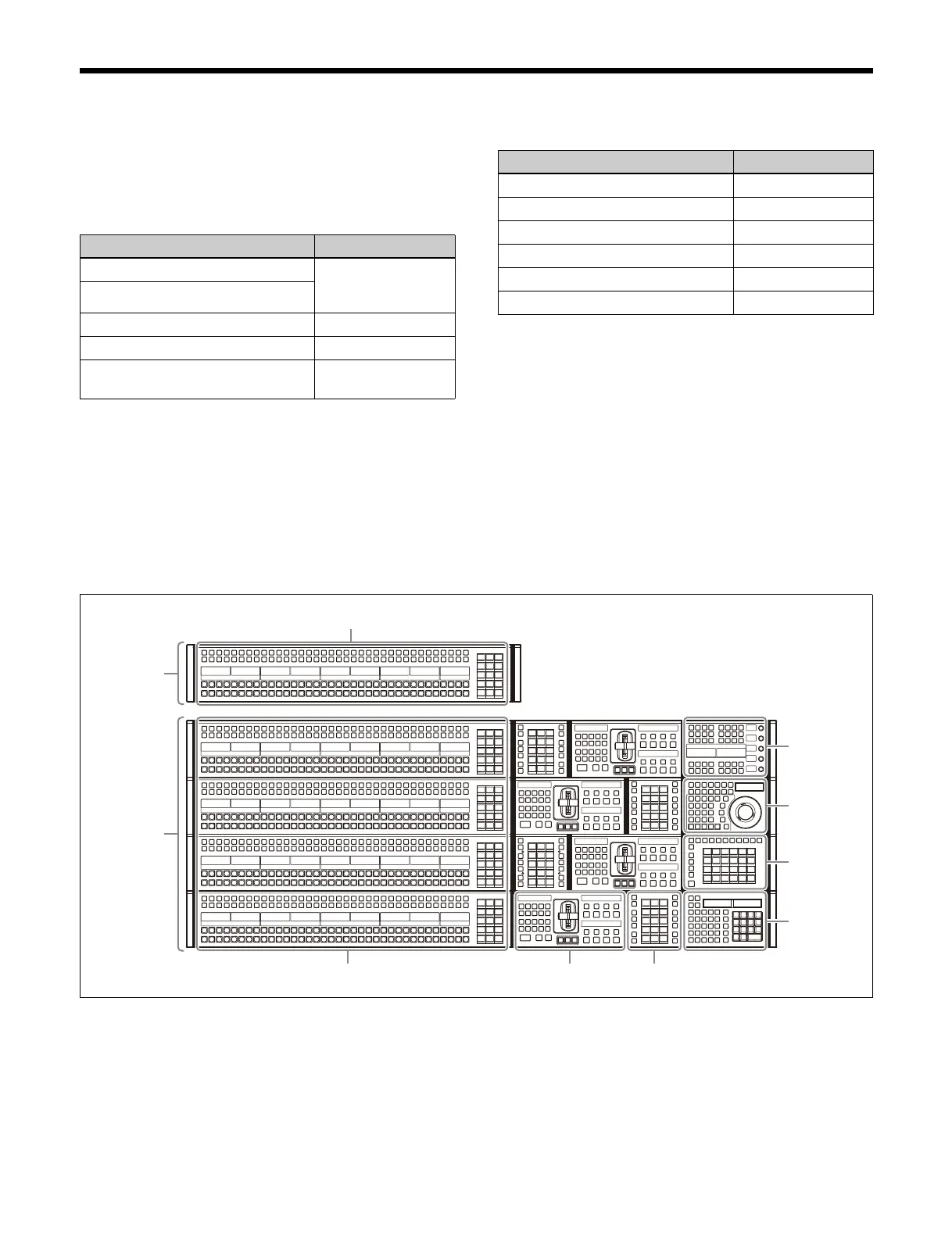

Control panel configuration example
The modules of each control block are combined and
connected in a single row. Up to a 14-row control panel
can be configured.
4M/E configuration example using 36-button modules in cross-point control blocks and an AUX bus
c
ontrol block
Control block Module
Cross-point control block MKS-X7017,
MK
S-X7018,
MKS-X7019
a)
AUX bus control block
Transition control block MKS-X7020
Transition control block (simple type) MKS-X7021
Independent key transition control
bl
ock
MKS-X7023
Flexi Pad control block MKS-X7024
Key control block MKS-X7035
Key fader control block MKS-X7032
Device control block MKS-X7031TB
Numeric keypad control block MKS-X7026
Utility/shotbox control block
MKS-X7033
Control block Module
a
de
f
c
b
j
i
h
g
