Note: Follow the disassembly procedure in the numerical order given.

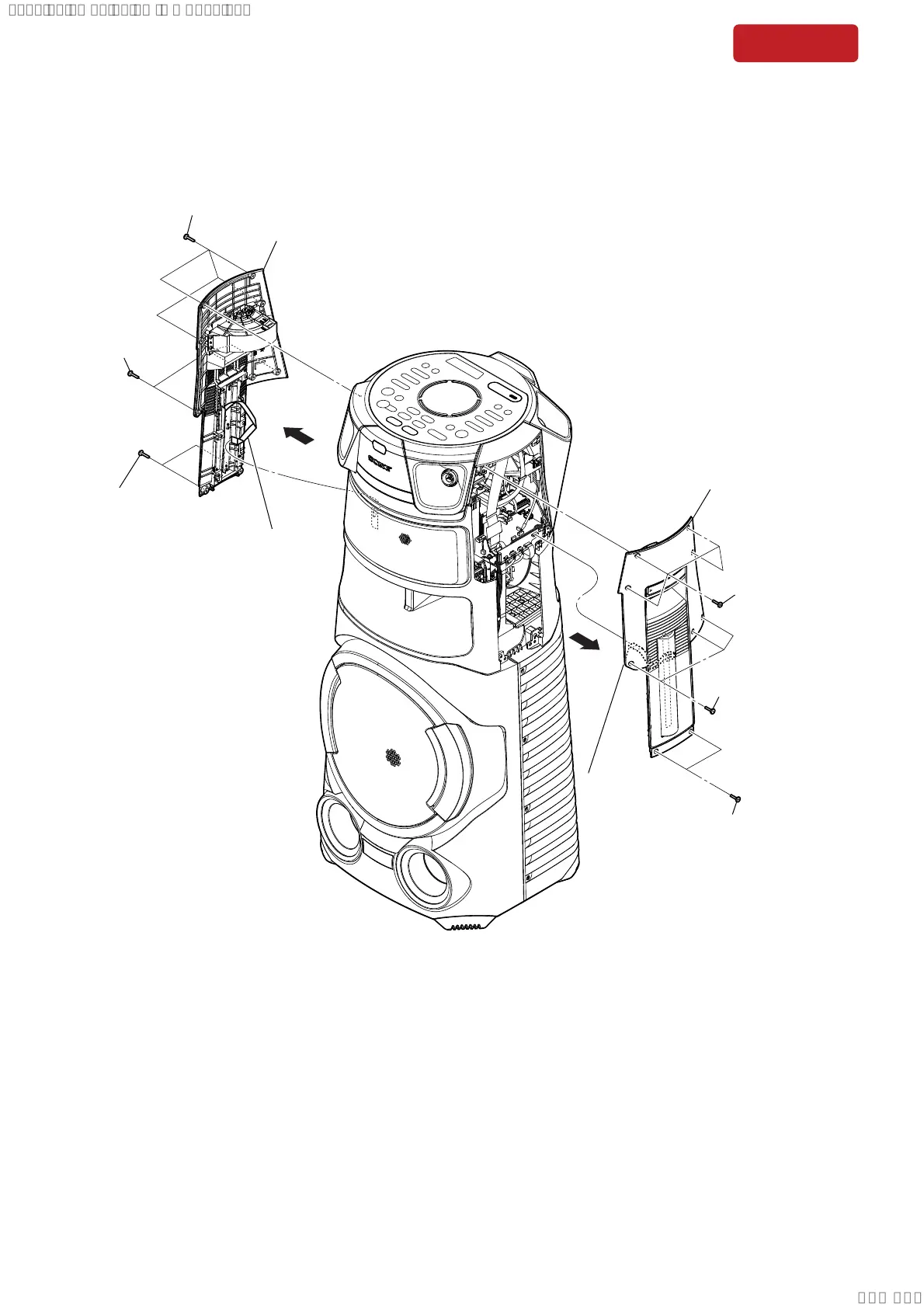

2-2. SIDE PANEL H-L, H-R SECTION
1 four screws
(tapping (flat head))
1 two screws
(tapping (flat head))
2 flexible flat cable
(9 core) (CN9501)
1 three screws
(tapping (flat head))
6 flexible flat
cable (9 core)
(CN8508)
5 four screws
(tapping (flat head))
5 three screws
(tapping (flat head))
5 two screws
(tapping (flat head))
4 side panel
H-L section
8 side panel
H-R section
3
7
