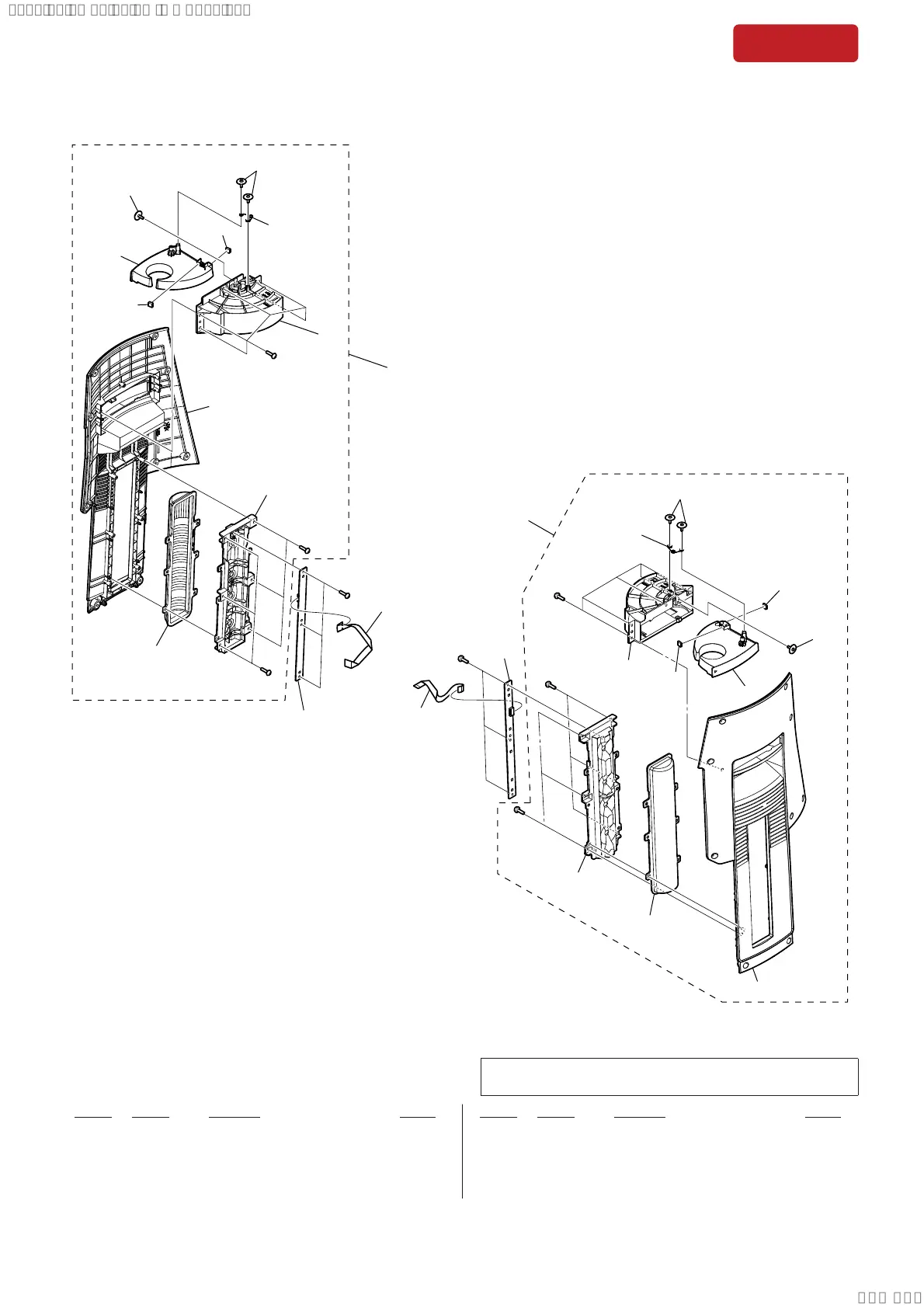

7-11. SIDE PANEL H-L, H-R SECTION
Note: If fl exible fl at cable is replaced, install it after bending it in
the same form as that before replacement.
501 234511501 SCREW (S), FLOAT
502 459141011 SPRING, USB
503 501127301 FOOT, LID (S)
504 100543111 FLEXIBLE FLAT CABLE (9 CORE)
505 A5009716A PARTY LED-LR MOUNTED PC BOARD
506 X50018351 PANEL, SIDE H-L ASSY
507 X50018341 PANEL, SIDE H-R ASSY
#1 768564671 SCREW +BVTP 3X8 TYPE2 IT-3
ns not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
504
501
501
502
501
502
505
503
503
503
503
501
#1
#1
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
#1
#1
#1
#1
#1
#1
505
506
507
504
