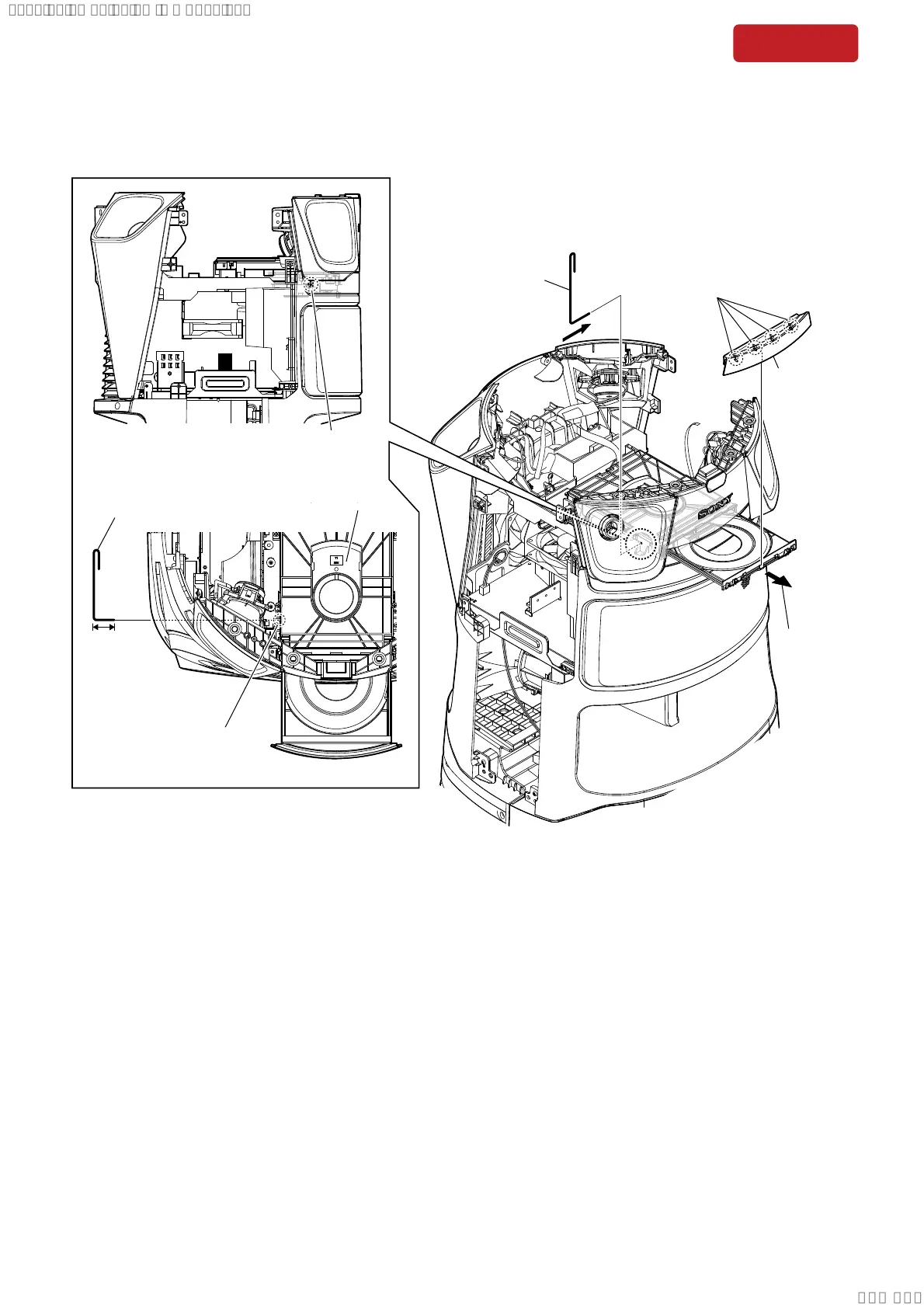

2-4. LOADING-H PANEL SECTION
2 Draw out
the tray.
3 four claws
4 panel,
loading-H
1 Insert the clip etc.
– Left view –
hole
– Top view –
tray
DVD mechanism
deck
Insert the clip etc. processed to the
length of 25mm, diameter 1.7mm
in the hole on the side of the
CDM and push.
Note: Push after it inserts it
in this hole well.
25mm,
diameter
1.7mm
