Sony MHC-V83D - Service Optical Device (7 G), Flexible Flat Cable

MHC-V83D
18
Sony CONFIDENTIAL
For Authorized Servicer

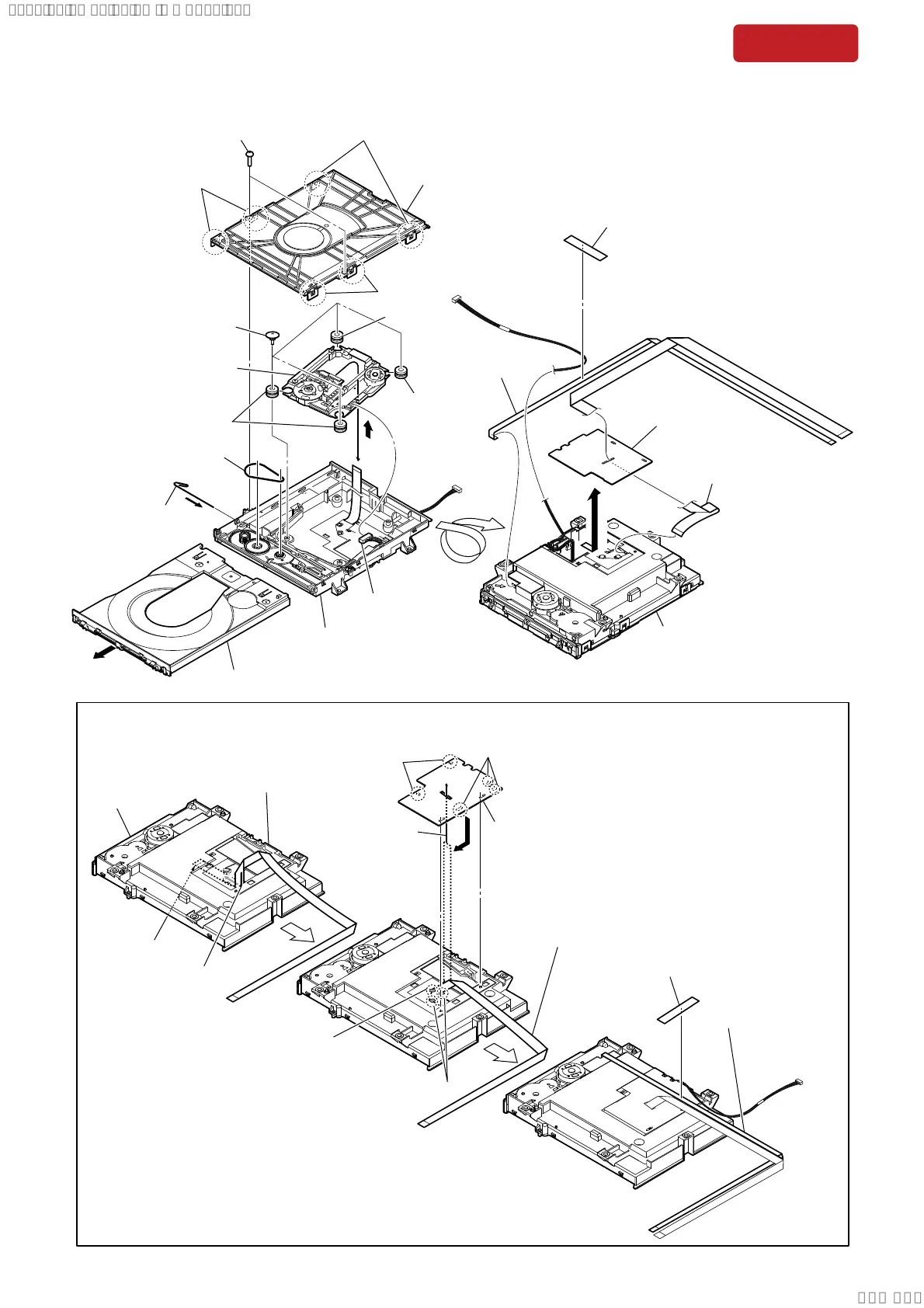

2-8. SERVICE OPTICAL DEVICE (7G), FLEXIBLE FLAT CABLE
8 four insulator screws
0 connector
qa insulator
7 belt
4 Insert the thin
wire (clip etc.).
6 tray
qd service, optical
device (7G)
qa insulator
qa insulator
qj
ql flexible flat cable
(24 core)
qg filament tape
2 two claws
2 two claws
2 two claws
5
qs
9
3 chuck holder assy (T)
qh flexible flat cable
(5 core)
– Bottom view –
loading assy (T)
qf base, lo assy
qk holder, FFC
1 two screws
(+BVTP 3 u 8)
Under the guide
Under the guide
(Fold area)
,QVWDOODWLRQRIIOH[LEOHIODWFDEOHFRUHDQGIOH[LEOHIODWFDEOHFRUH
Note:
This illustration sees the loading assy (T) from bottom side.
1 flexible flat cable
(24 core)
2 Through the hole
3 Through the hole
4
terminal face
loading assy (T)
7 flexible flat cable
(24 core)
6 holder, FFC
5 three claws
5 two claws
8 flexible flat cable
(5 core)
9 filament tape
