Sony MHC-V83D Service Manual

MHC-V83D
67
Sony CONFIDENTIAL
For Authorized Servicer

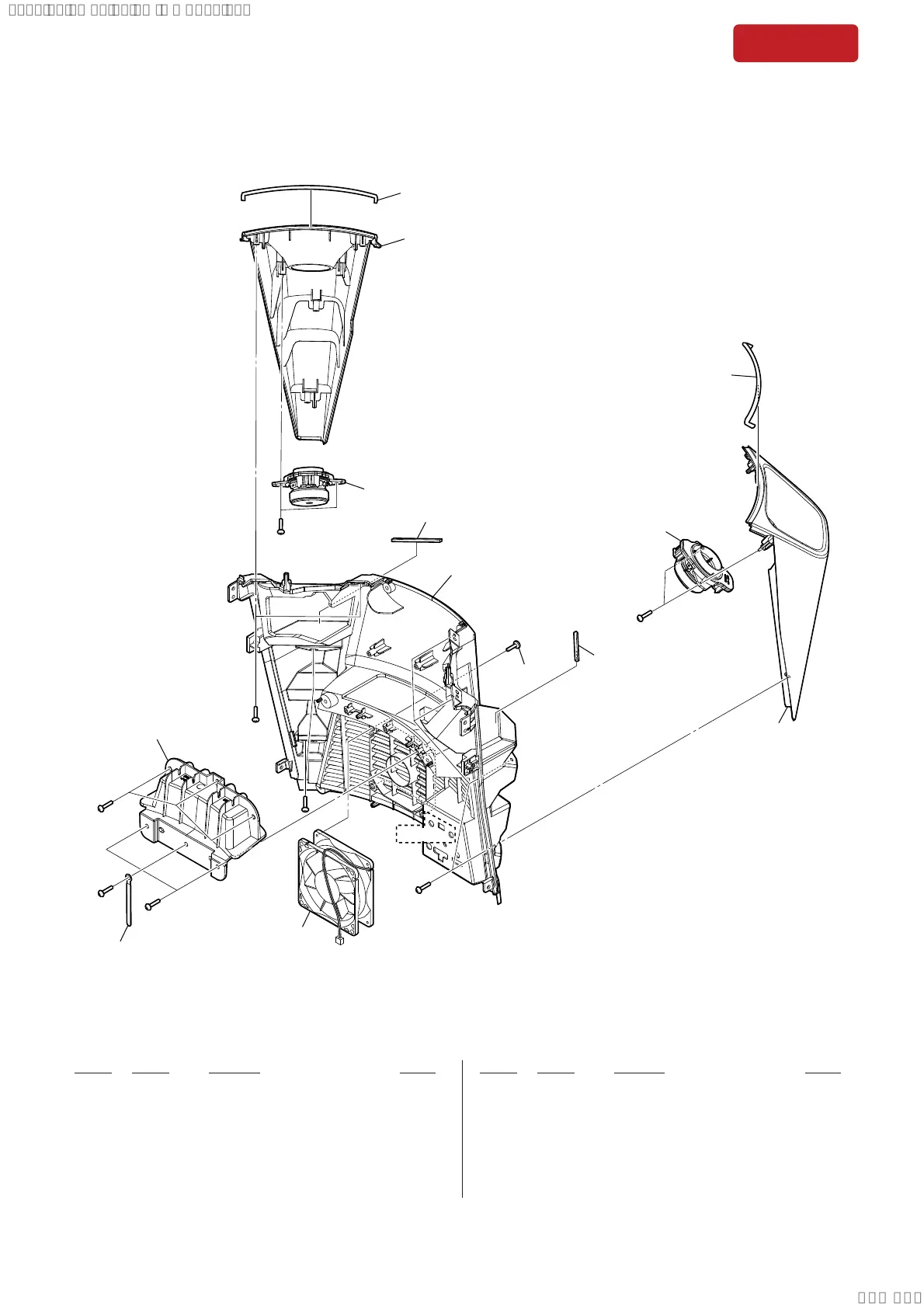

7-13. REAR PANEL ST-H SECTION
601 458928121 SCREW, TAPPING
0
602 185500641 FAN, DC
603 501854111 SHEET, SEAL
604 501232201 PANEL, TWEETER REAR H-R
605 501232101 PANEL, TWEETER REAR H-L
606 501854131 SHEET, SEAL
607 501229911 PANEL, REAR ST-H (AEP)
607 501229901 PANEL, REAR ST-H (EXCEPT AEP)
SP4 100883011 LOUDSPEAKER (4CM) (Tweeter Rear) (R-CH)
SP8 100883011 LOUDSPEAKER (4CM) (Tweeter Rear) (L-CH)
#1 768564671 SCREW +BVTP 3X8 TYPE2 IT-3
#2 768564771 SCREW +BVTP 3X10 TYPE2 IT-3
ns not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
#2
#2
#2
#2
#2
#2
ns
ns
#2
#2
607
606
606
603
604
601
602
SP4
603
605
SP8
(AEP)
SYSSET
2020/06/2222:32:42(GMT+09:00)

Sony MHC-V83D Specifications

General

Bluetooth	Yes
USB ports quantity	1
Connectivity technology	Wired & Wireless
Speaker type	-
Woofer diameter	300 mm
Tweeter diameter	40 mm
Number of tweeter drivers	4
Audio formats supported	MP3
Type	Freestanding Public Address (PA) system
Product color	Black
Power source type	AC
Power consumption (standby)	0.5 W
Frequency range	- Hz
RMS rated power	- W

Weight and Dimensions

Depth	370 mm
Width	428 mm
Height	1051 mm
Weight	23400 g
