Sony MHC-V83D - CDM, DC Fan (3500 RPM;200 MM) Section

MHC-V83D
16
Sony CONFIDENTIAL
For Authorized Servicer

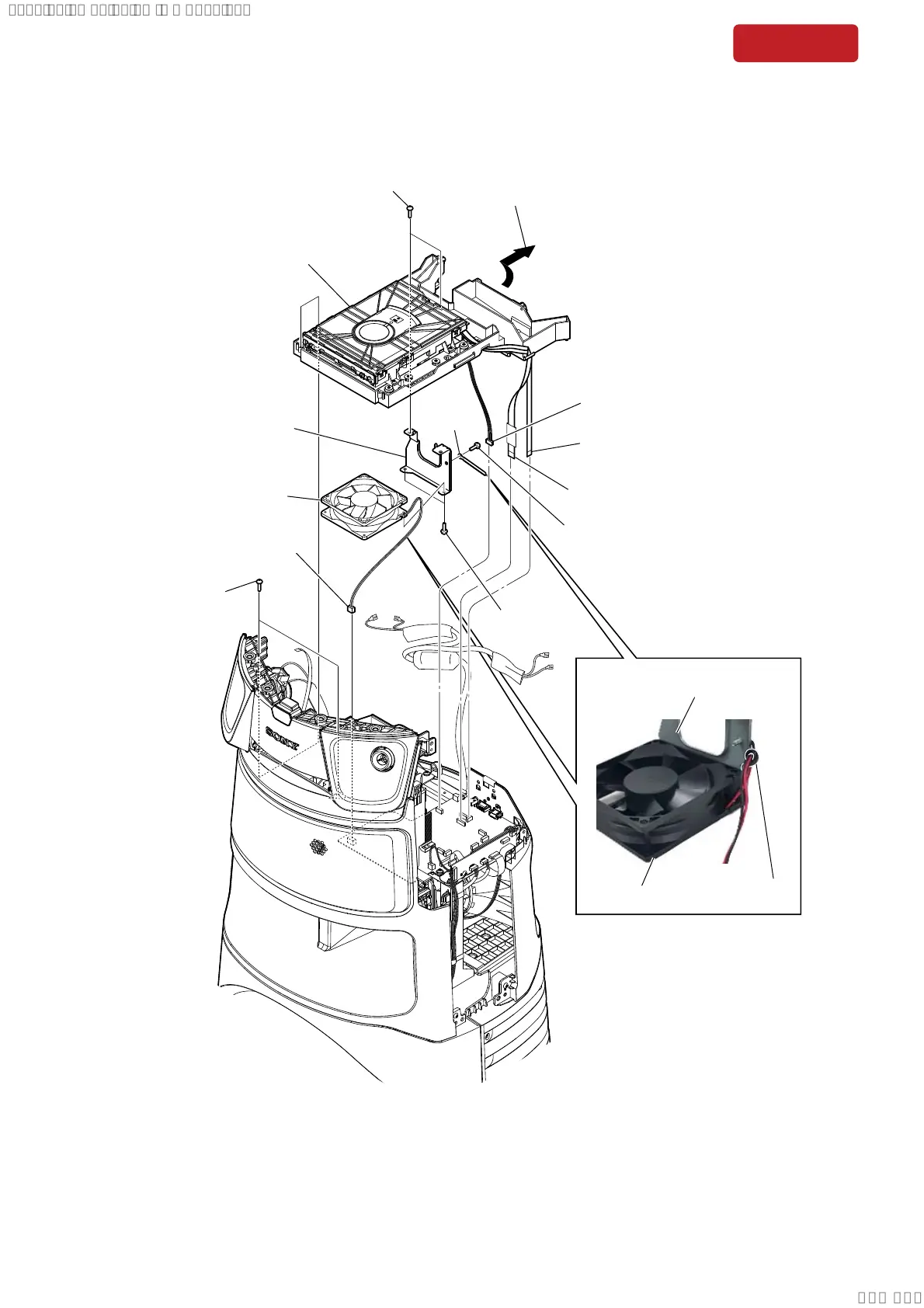

2-6. CDM, DC FAN (3500RPM/200MM) SECTION
5 two screws
(+BVTP 3 u 8)
1 CN402 (4P)
4 CN2008 (3P)
2 flexible flat cable
(5 core) (CN303)
3 flexible flat cable
(24 core) (CN302)
6 Remove the CDM section
in the direction of the arrow.
qd CDM section
7 two screws
(+BVTP 3 u 8)
0 two screws
(+BVTP 3 u 8)
qa bracket, fan
(V83D)
bracket, fan (V83D)
qs DC fan
(3500rpm/200mm)
DC fan
(3500rpm/200mm)
8 one screw
(+BVTP 3 u 8)
9 clamp
(N)
clamp (N)
