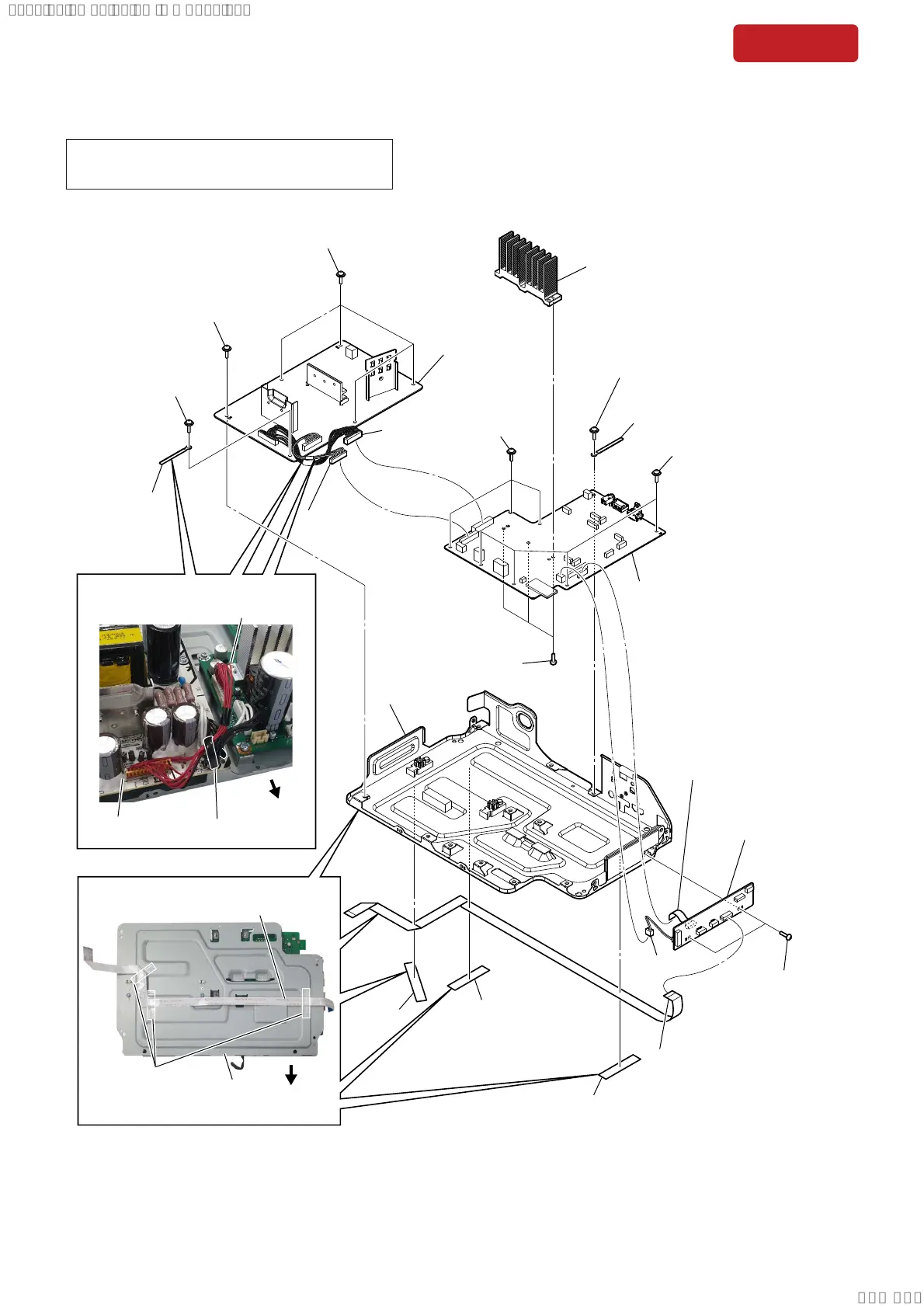

2-10. SMPS, MOTHERBOARD AND LED HUB BOARD
Note: When the MOTHERBOARD mounted pc board
is replaced, be sure to refer to “DESTINATION
SETTING METHOD” on page 6.
8 one screw
(+PWH 3 u 8 (SUMITITE))
3 four screws
(+PWH 3 u 8 (SUMITITE))
3 one screw
(+PWH 3 u 8 (SUMITITE))
3 one screw
(+PWH 3 u 8
(SUMITITE))
5 SMPS board
qs MOTHERBOARD board
MOTHERBOARD board
qf filament
tape
qf filament
tape
qf filament
tape
8 four screws
(+PWH 3 u 8 (SUMITITE))
8 three screws
(+PWH 3 u 8
(SUMITITE))
4 clamp
(N)
9 clamp
(N)
clamp (N)
SMPS board
1 CN3501
(8P)
2 CN001
(11P)
6 CN002
(2P)
0 three screws
(+BVTP 3 u 8)
qg two screws
(+BVTP 3 u 8)
qa heat sink (MB-H)
7 flexible flat cable
(9 core) (CN101)
qd flexible flat cable
(11 core) (CN8505)
qh LED HUB board
qj chassis
:LUHVHWWLQJ
:LUHVHWWLQJ
filament tape
chassis
flexible flat cable
(11 core)
–%RWWRPYLHZ–
rear side
front side
