Sony MHC-V83D

MHC-V83D
58
Sony CONFIDENTIAL
For Authorized Servicer

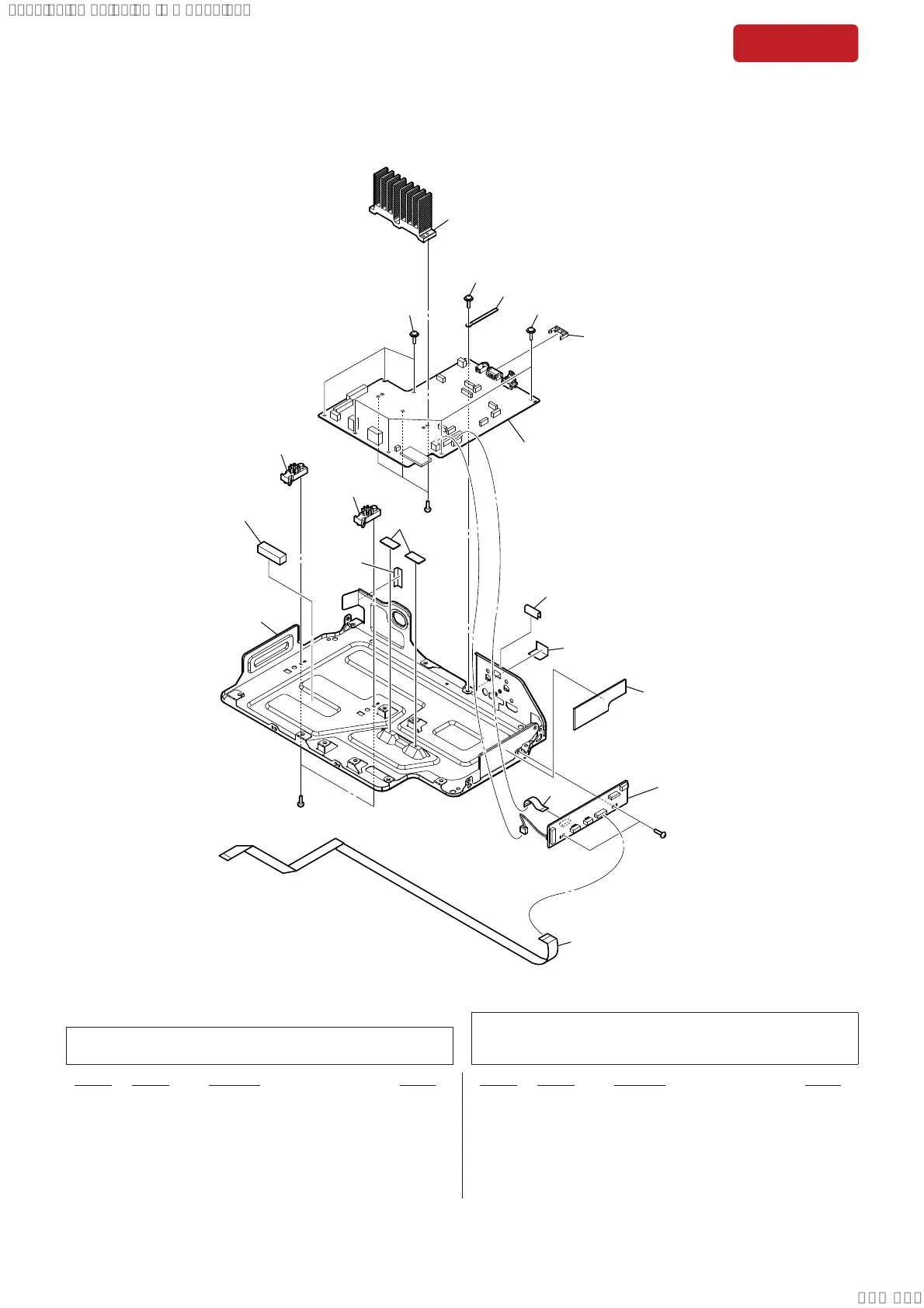

7-4. CHASSIS SECTION
Note 2: When the MOTHERBOARD mounted pc board is replaced,
be sure to refer to “DESTINATION SETTING METHOD” on
page 6.
Note 1: If fl exible fl at cable is replaced, install it after bending it in
the same form as that before replacement.
151 267783901 +PWH 3X8 (SUMITITE)
152 473122811 COVER, SERVICE
9 153 A5014386A MOTHERBOARD MOUNTED PC BOARD
(for SERVICE) (AEP)
9 153 A5014385A MOTHERBOARD MOUNTED PC BOARD
(for SERVICE) (EXCEPT AEP)
154 502050901 CUSHION (SMPS)
155 501975411 CUSHION, HEMILON
156 100543011 FLEXIBLE FLAT CABLE (9 CORE)
157 100544311 FLEXIBLE FLAT CABLE (11 CORE)
158 A5009720A LED HUB MOUNTED PC BOARD
#1 768564671 SCREW +BVTP 3X8 TYPE2 IT-3
ns not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151
151
151
152
153
154
155
155
ns
ns
#1
#1
#1
156
158
157
ns
ns
ns
ns
ns
155
SYSSET
